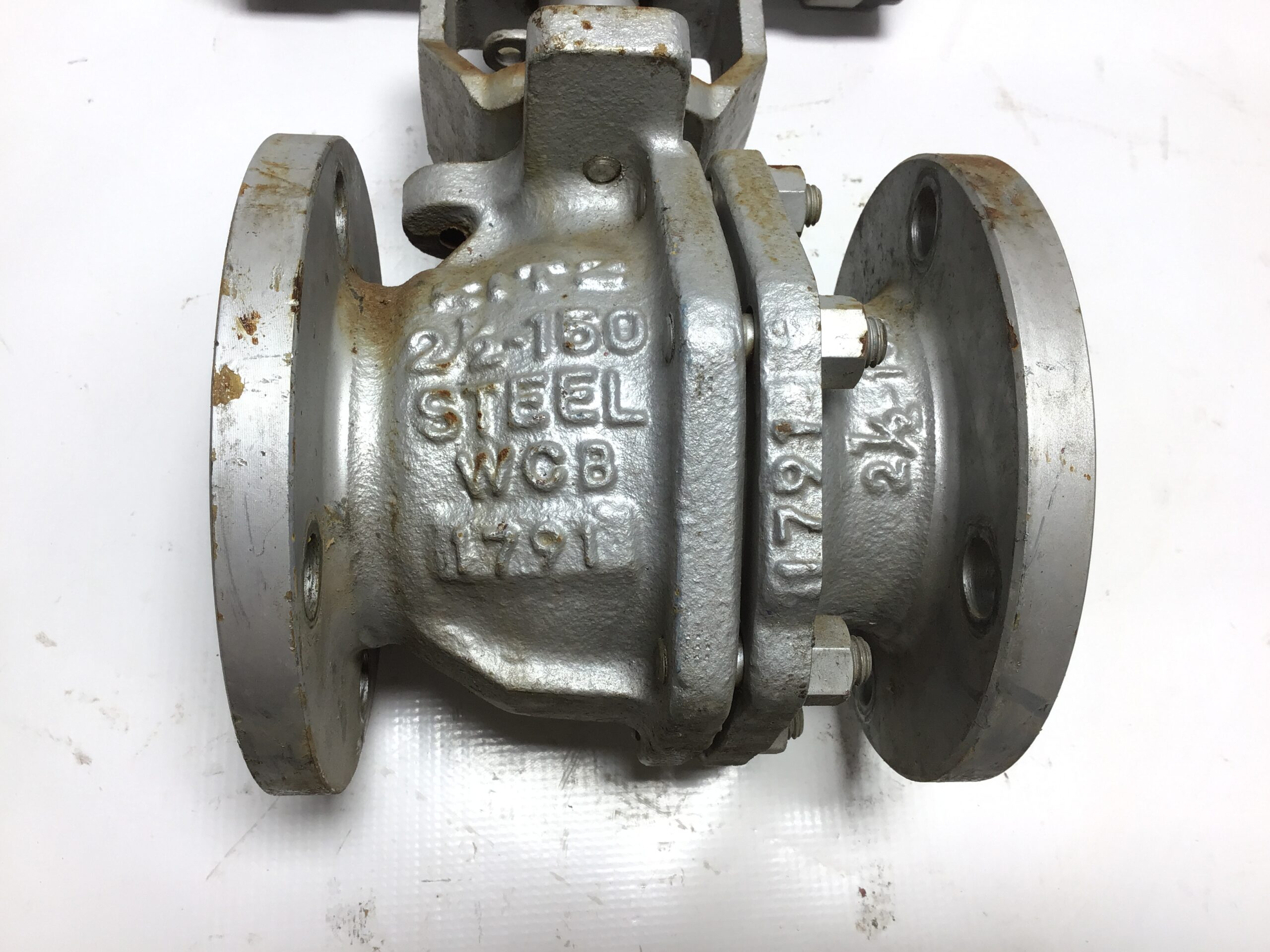

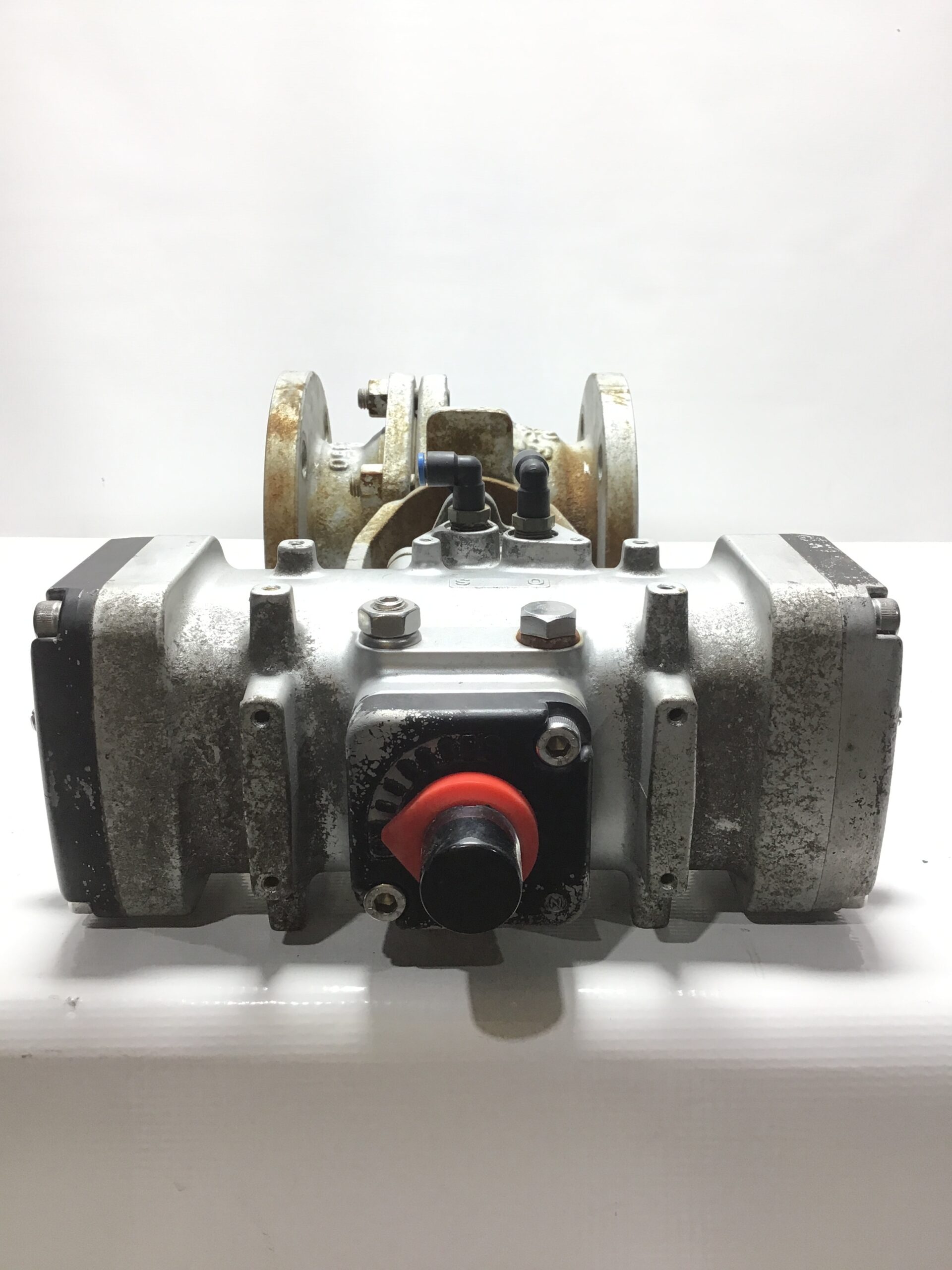

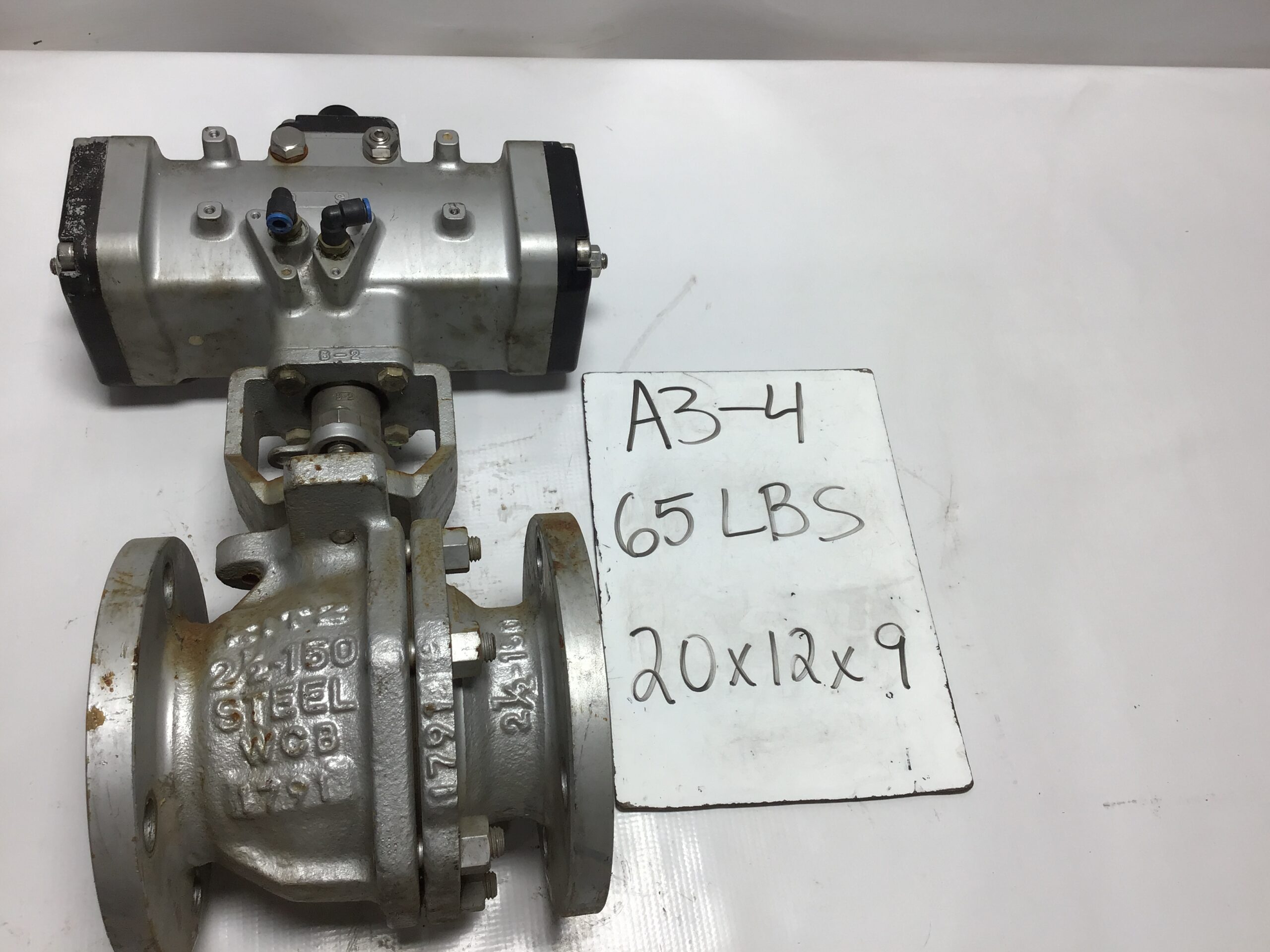

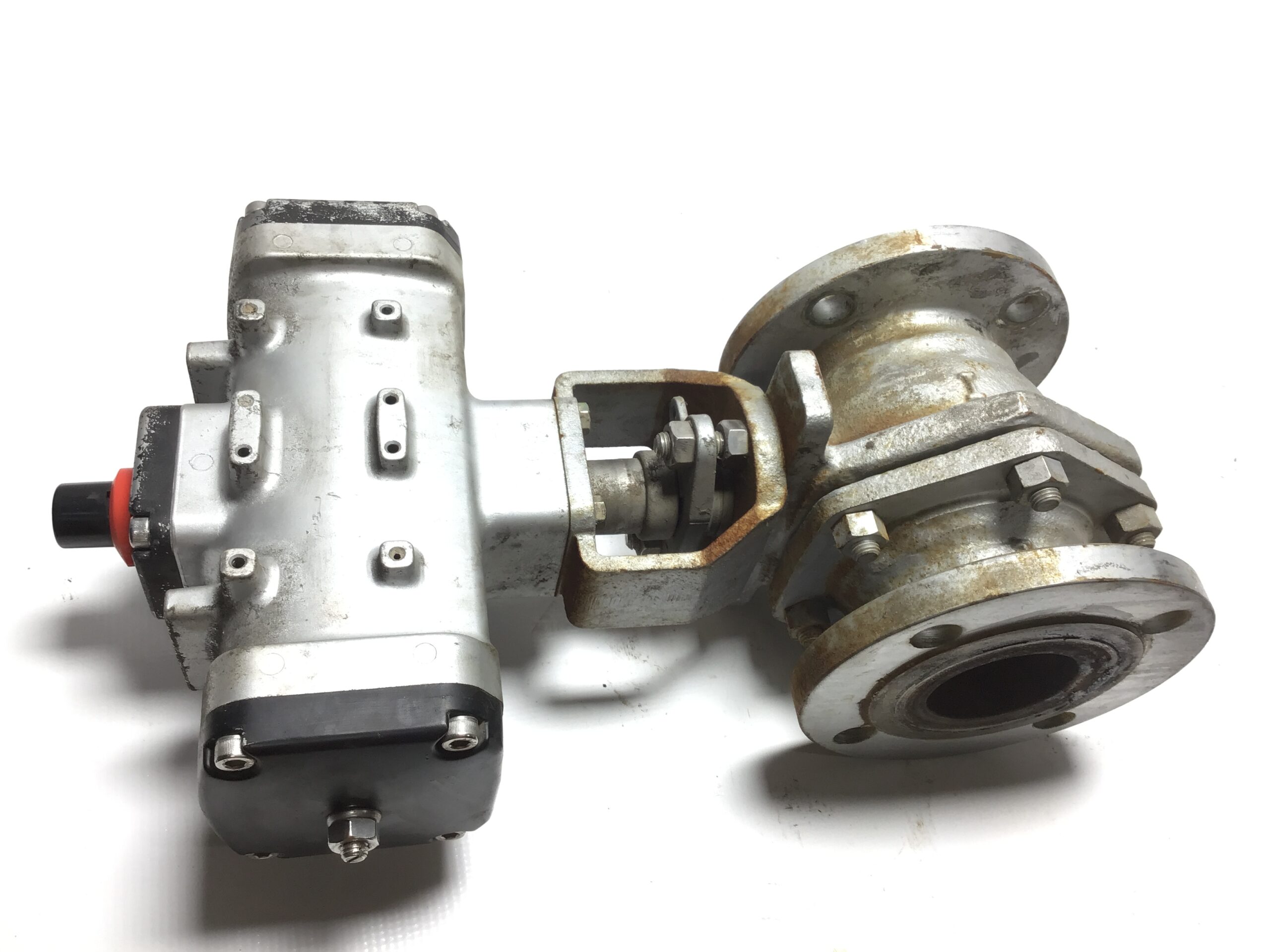

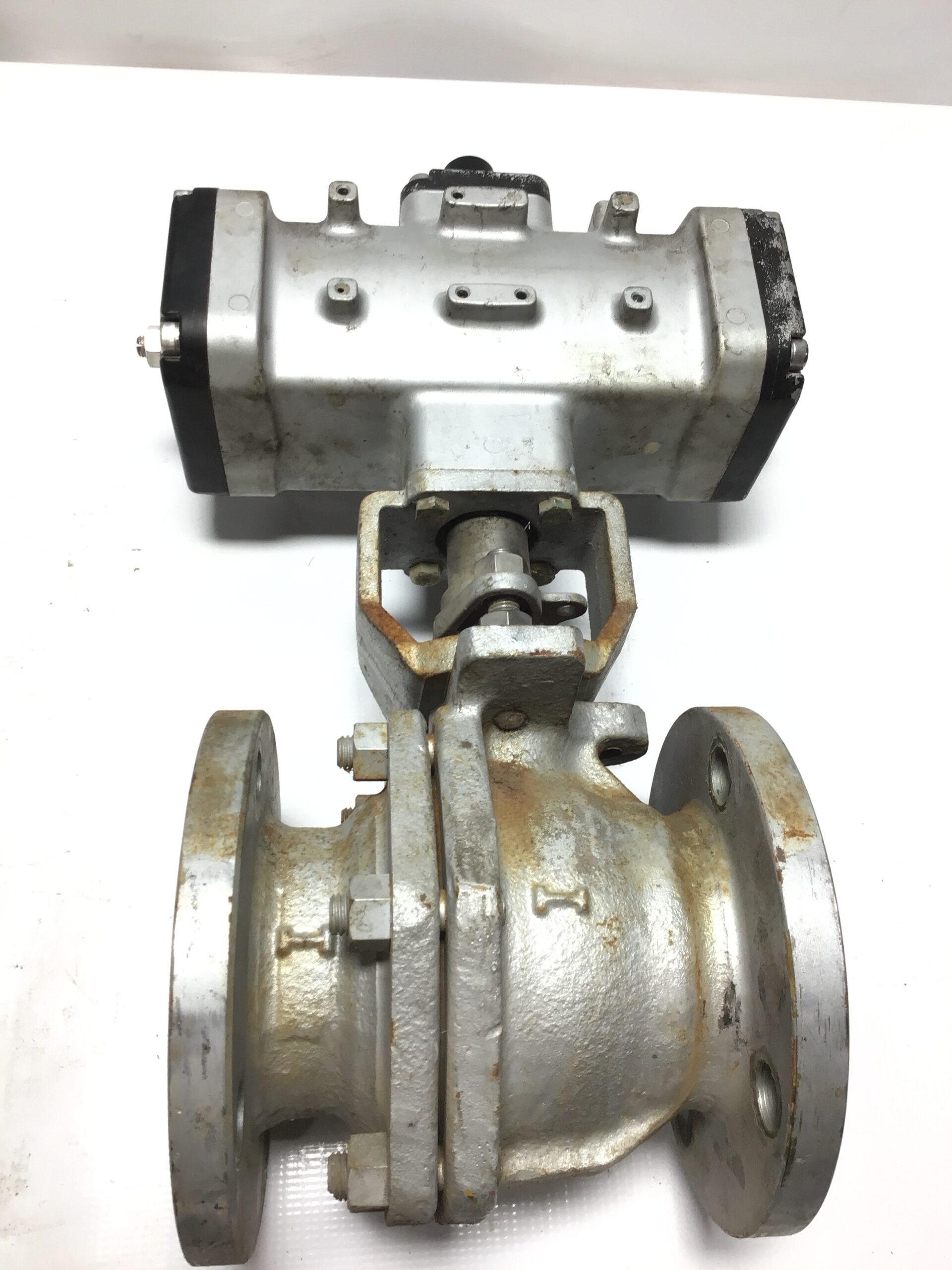

This heavy-duty industrial process assembly features a high-performance KITZ 2-½” Class 150 Cast Carbon Steel Ball Valve (WCB) paired with a rugged, top-mounted KITZ D-3 Pneumatic Actuator. Engineered to precise Japanese standards, this automated setup provides reliable quarter-turn operation under tight pressure and temperature constraints. The valve features a two-piece split-body design with a heavy 4-bolt flange pattern on each side, cast markings including “1791,” and an internal bore measuring exactly 2-½ inches. The automated operation is powered by the double-acting KITZ D-3 air actuator, complete with pre-installed premium push-to-connect 90-degree pneumatic fittings and clear directional casing stamps (D and S). This is a highly robust, brand-name assembly ideal for demanding fluid or gas infrastructure automation.
Specifications:
- Brand: KITZ
- Pipe Size (Nominal): 2-½”
- Pressure Class: Class 150
- Body Material: WCB Cast Carbon Steel
- Production / Casting Code: 1791

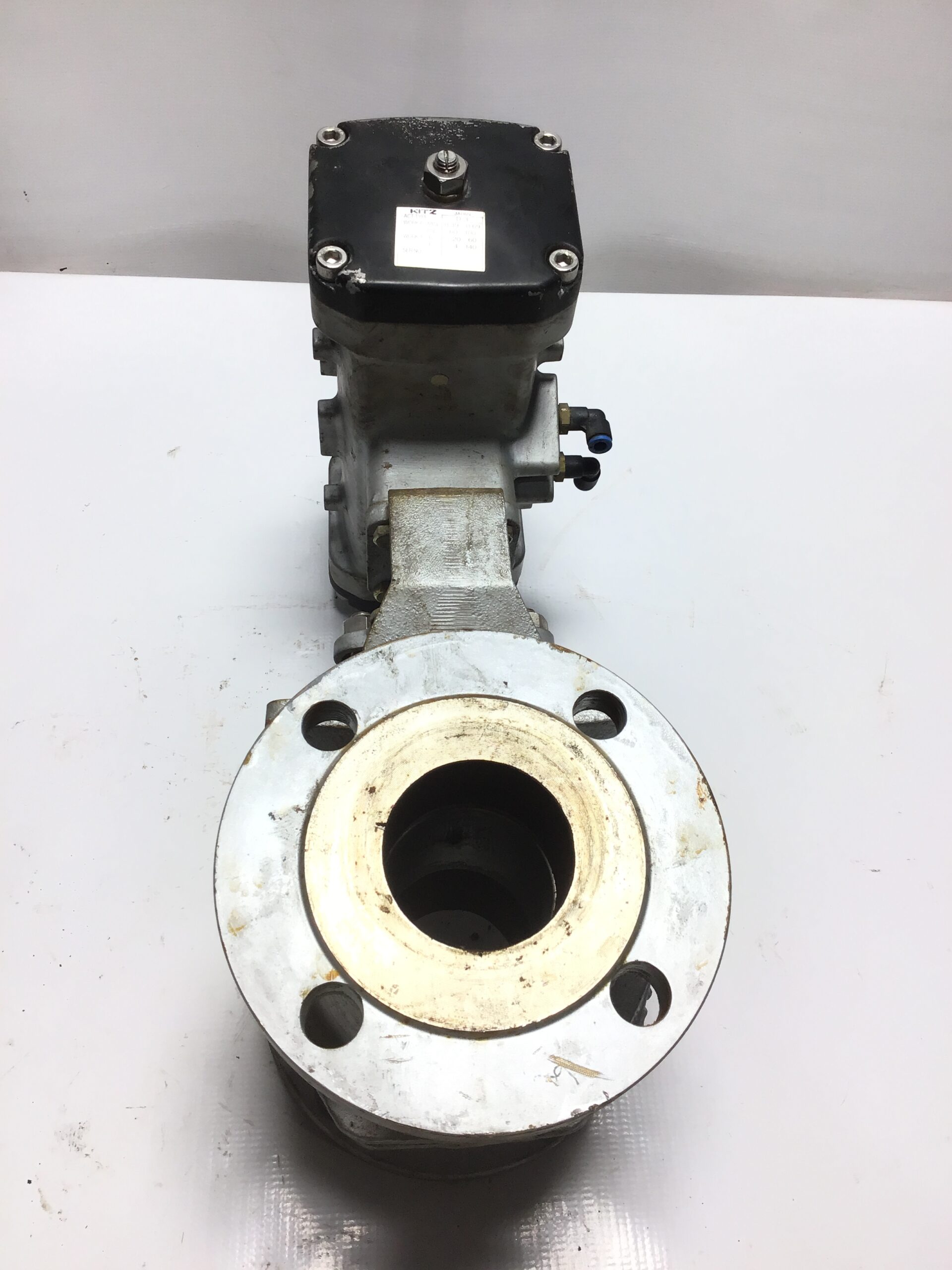

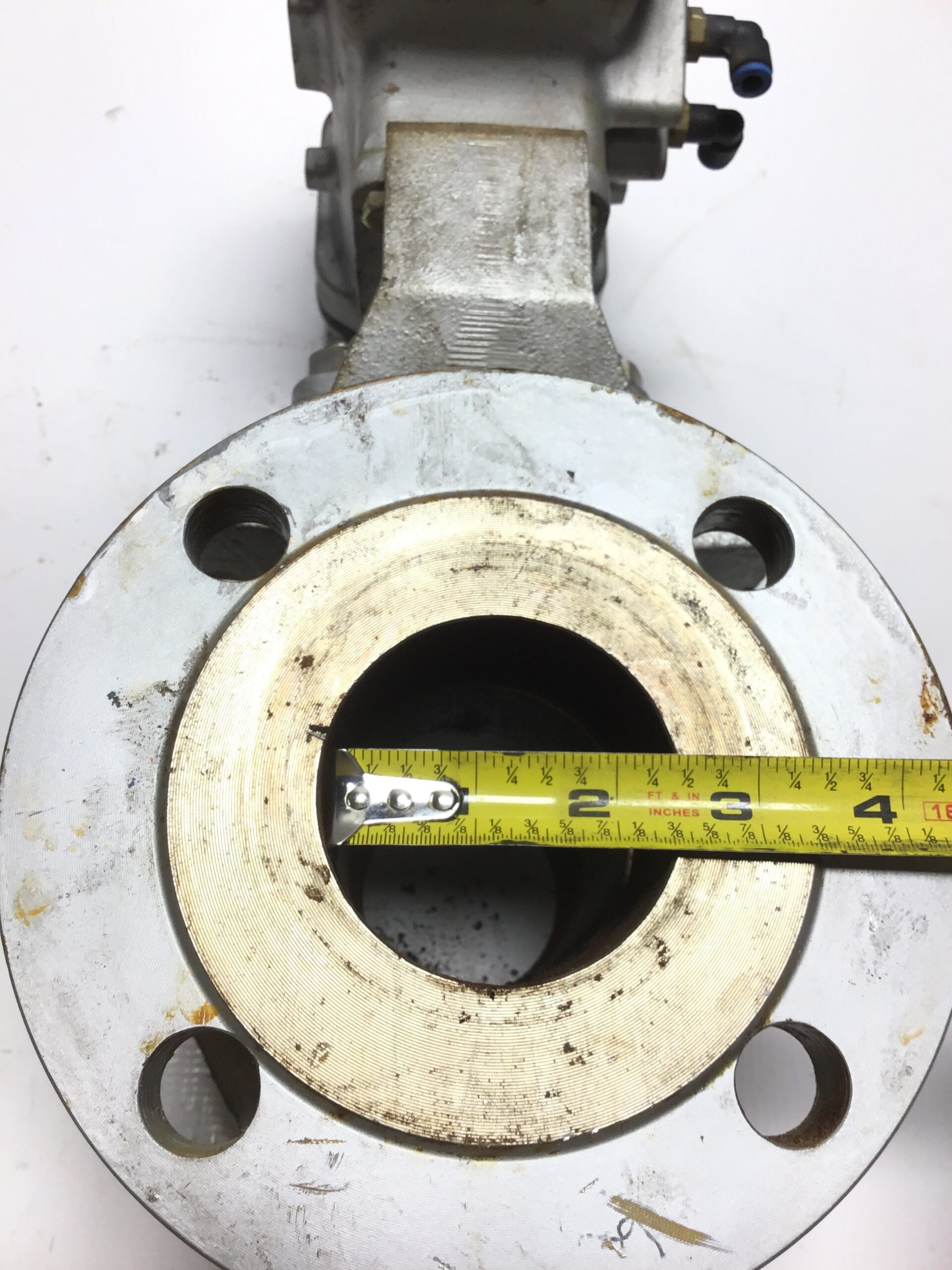

- Internal Bore Dimension: 2-½ inches (2.5″ ID)

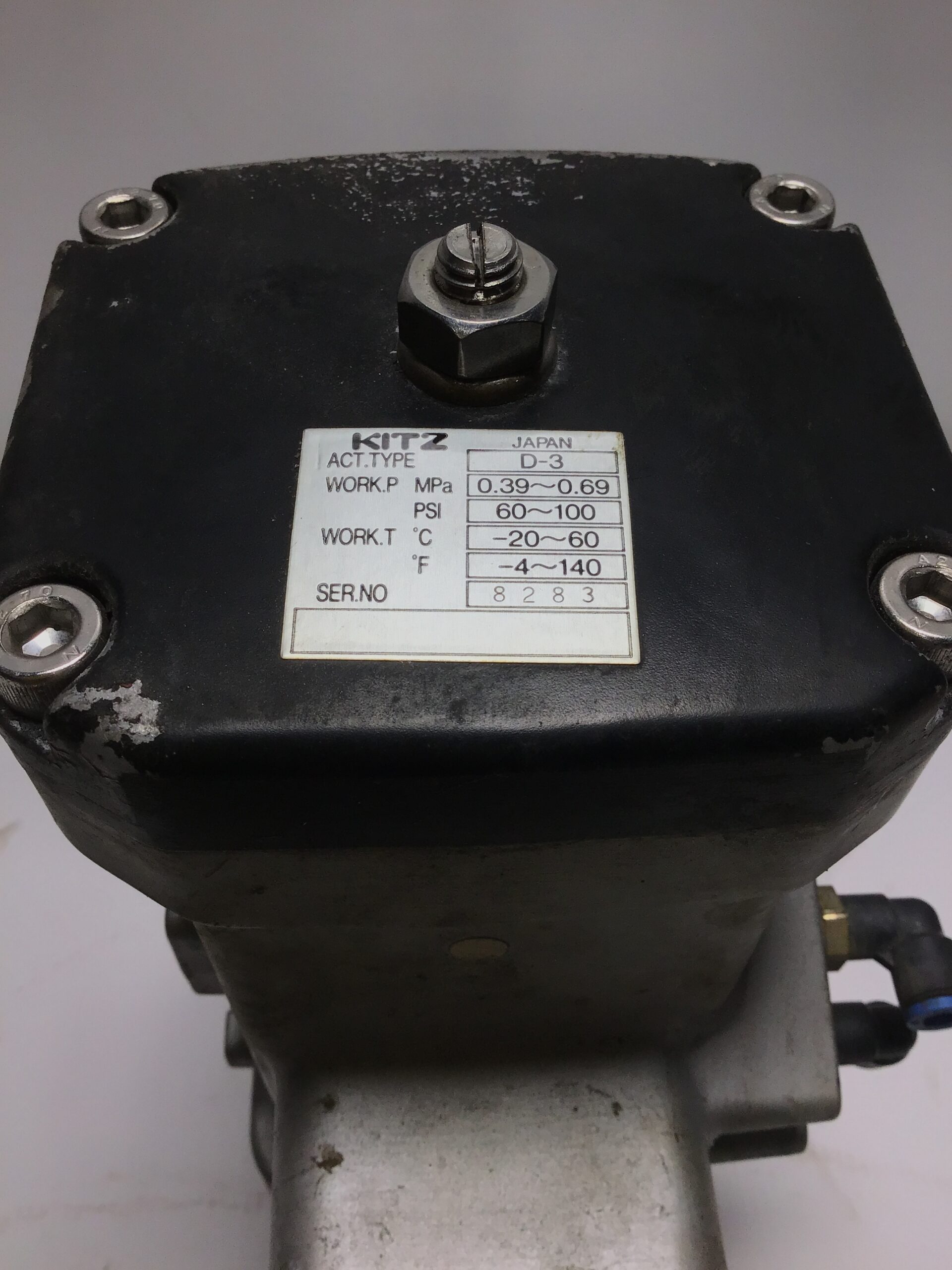

- Model: D-3

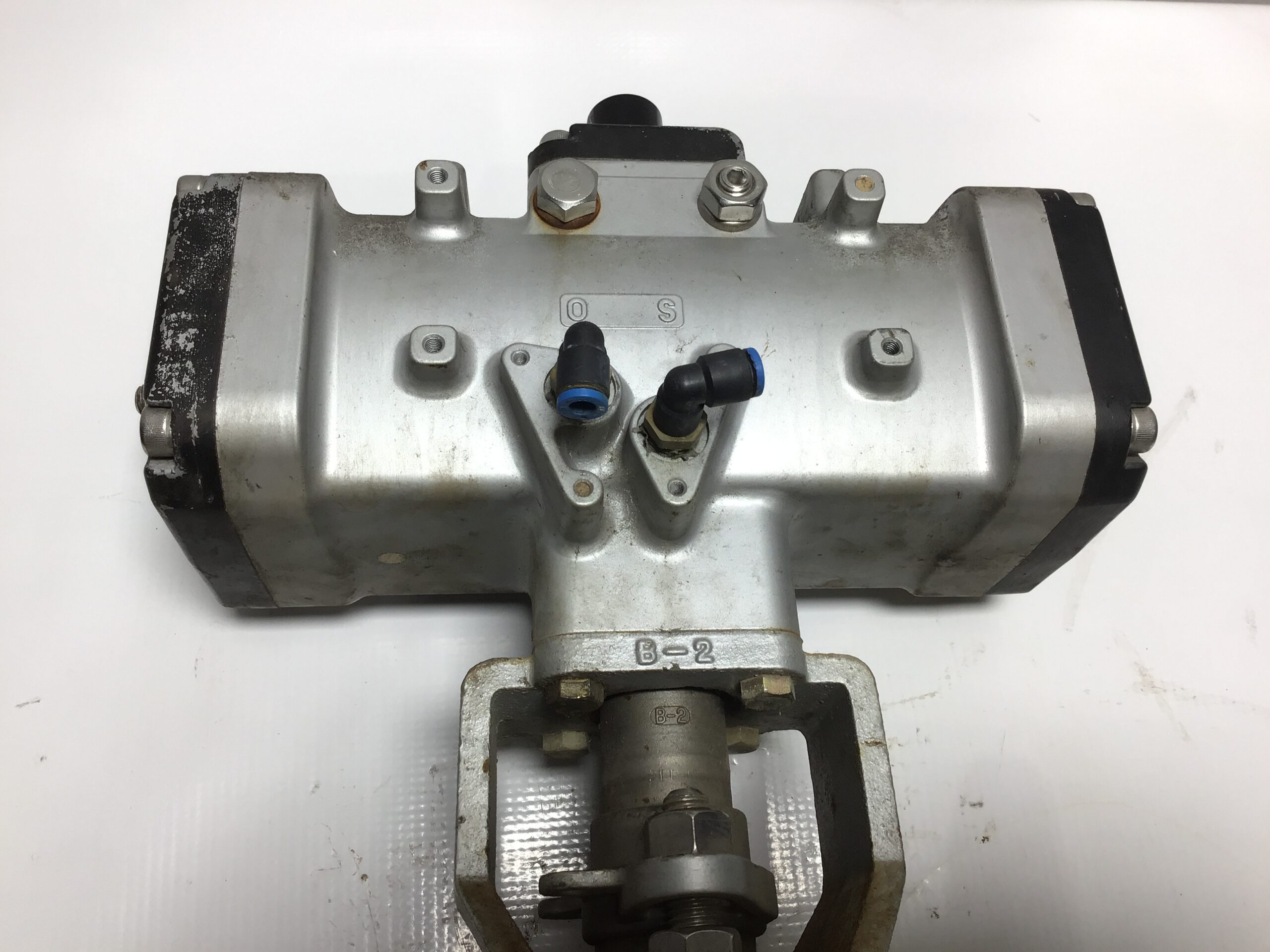

- Casing Marks: B-2, [ D ], and [ S ]
- WORK.P: 0.39 ~ 0.69 MPa / 60 ~ 100 PSI
- WORK.T: -20°C ~ 60°C / -4°F ~ 140°F
- Serial Number : 8283
Applications:
- Chemical & Petrochemical Processing
- Oil & Gas Utilities
- Water Treatment & Distribution Systems
- Industrial Manufacturing & Factory Automation Lines
- Steam, HVAC, and Power Generation Utilities
