Leeson Electric DC Motor C42D17FK1C + Ironman Gear Reducer

Up for sale is a heavy-duty industrial DC motor and gear reducer assembly featuring a reliable Leeson permanent magnet motor paired with a rugged Ironman gear reducer. This setup is ideal for applications requiring consistent torque, speed control, and durability.

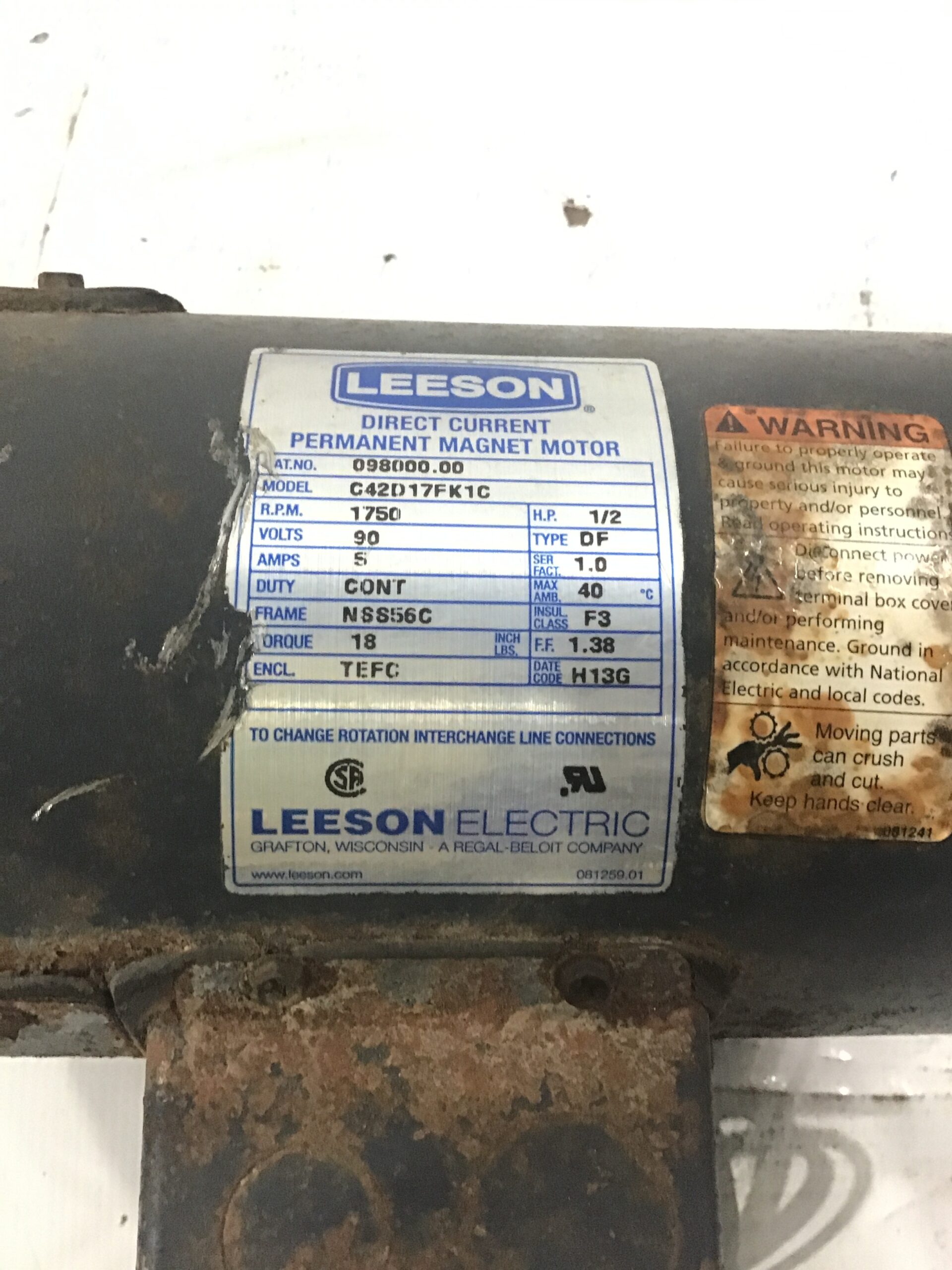

⚙️ Motor Specifications:

• Brand: Leeson Electric

• Model: C42D17FK1C

• Catalog #: 098000.00

• Horsepower: 1/2 HP

• Voltage: 90 V DC

• Amps: 5.0

• Speed: 1750 RPM

• Duty: Continuous

• Enclosure: TEFC

• Frame: N56C

• Insulation Class: F

• Torque: 18 in-lbs

• Ambient Rating: 40°C

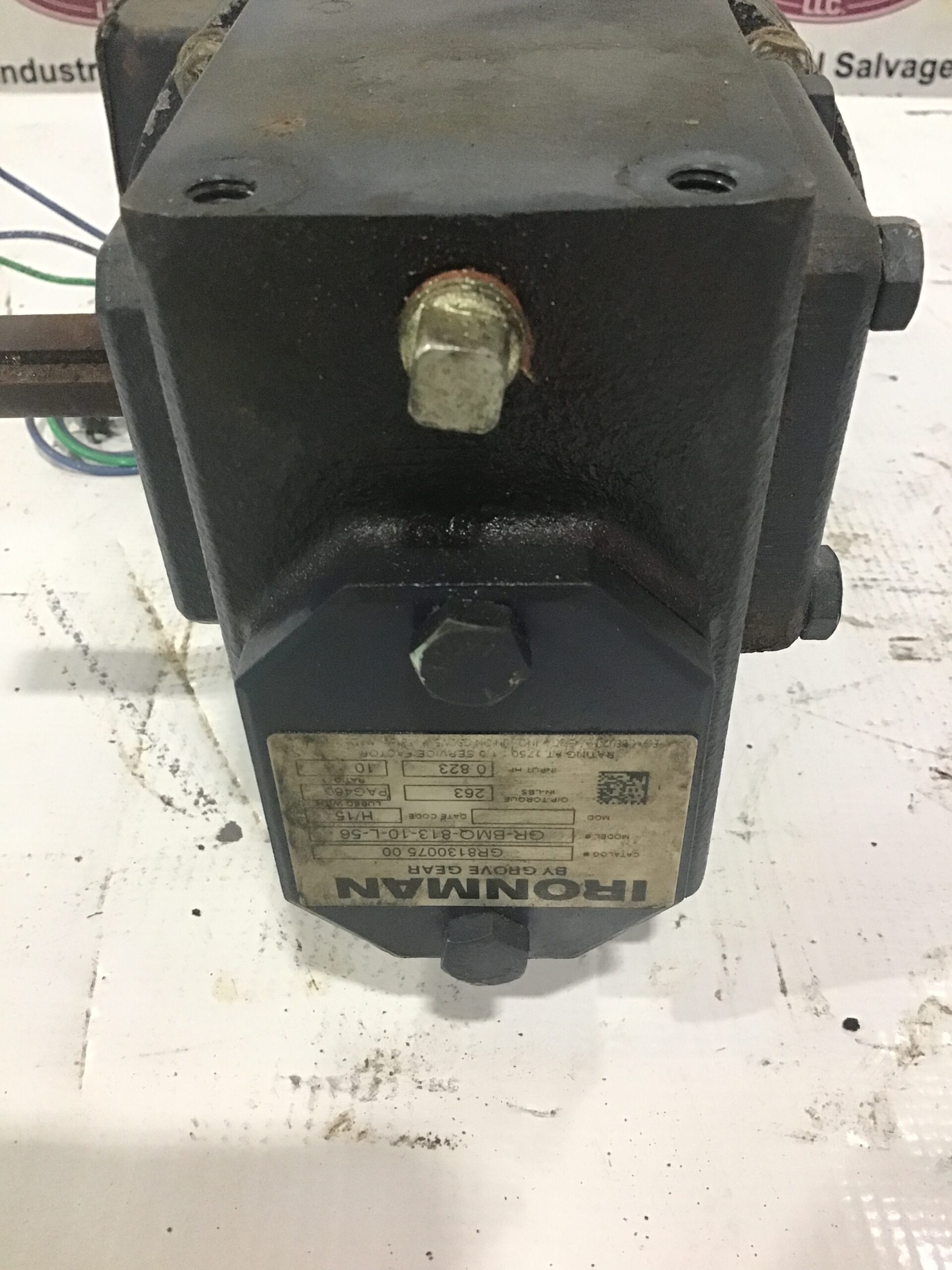

⚙️ Gear Reducer Specifications:

• Brand: Ironman

• Model: GR-BMO-83-10-L56

• Gear Ratio: 10:1

• Output Speed: ~175 RPM

• Mounting: C-face compatible

🛠️ Key Features:

• High-quality industrial-grade construction

• TEFC motor design keeps dust and debris out

• Speed reduction + torque increase via gearbox

• Ideal for conveyors, mixers, automation, and machinery

• Reliable Leeson motor known for long service life
