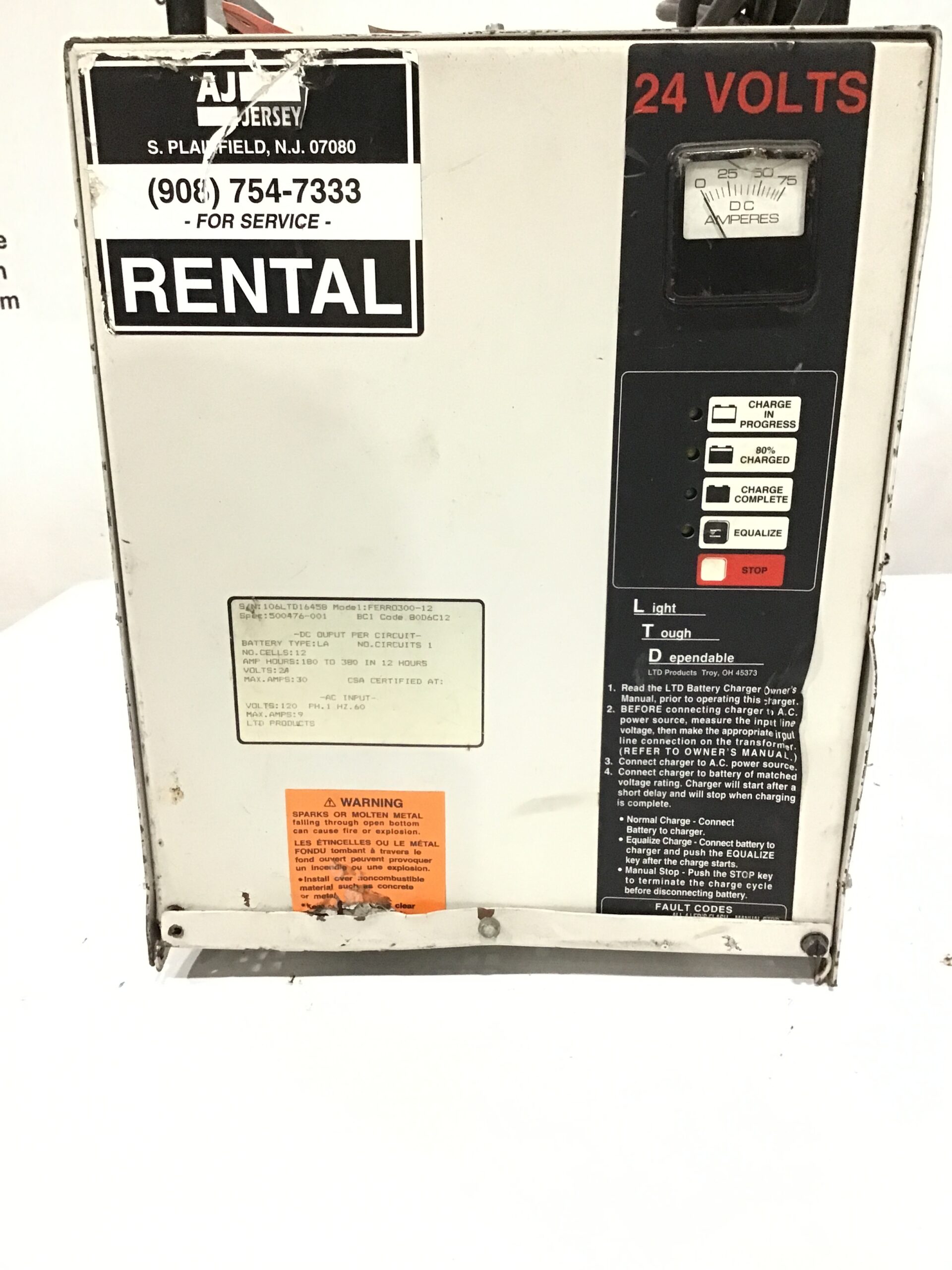

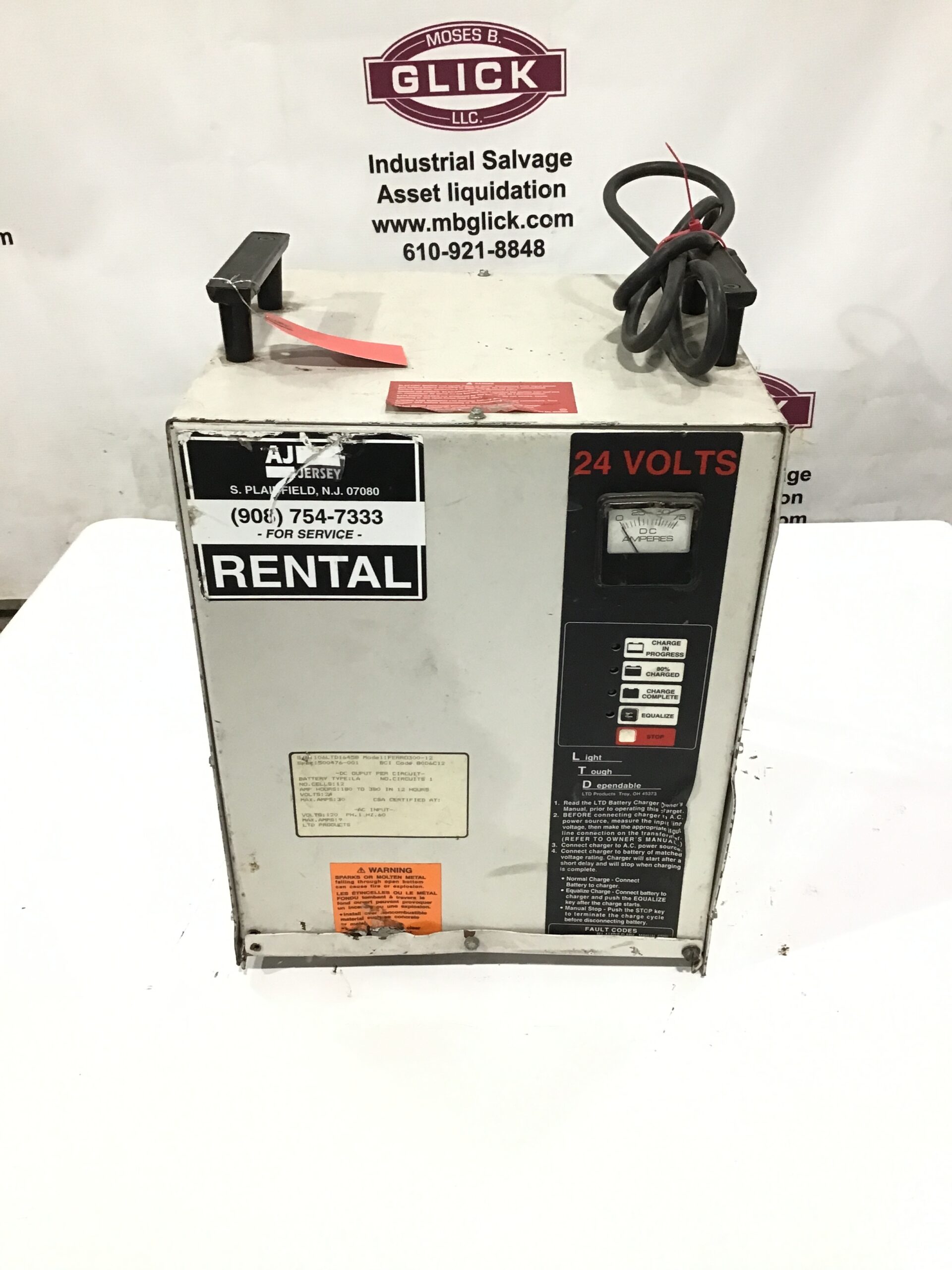

LTO Products FERRO300-12 24volt Forklift Pallet Jack Charger 30A

The LTO Products FERRO300-12 24V Forklift/Pallet Jack Charger (30A) is a heavy-duty industrial battery charger designed to efficiently recharge 24-volt lead-acid battery systems used in electric material handling equipment. Built using ferroresonant charging technology, this unit provides consistent, reliable output and is known for its durability and long service life in demanding environments. It typically operates on single-phase AC input and delivers a steady 30-amp DC output, making it well-suited for batteries in the 180–380 amp-hour range.

This type of charger is commonly used in warehouses, distribution centers, and manufacturing facilities to power electric forklifts, pallet jacks, and floor equipment. Its robust design allows for dependable daily charging cycles, often in single-shift operations, while helping maintain battery health and performance. Ferroresonant chargers like the FERRO300-12 are valued for their simplicity, ruggedness, and ability to handle industrial conditions such as dust, vibration, and fluctuating power.

Overall, the FERRO300-12 is a reliable solution for keeping material handling equipment operational, ensuring batteries are safely and effectively charged to support continuous industrial workflow.

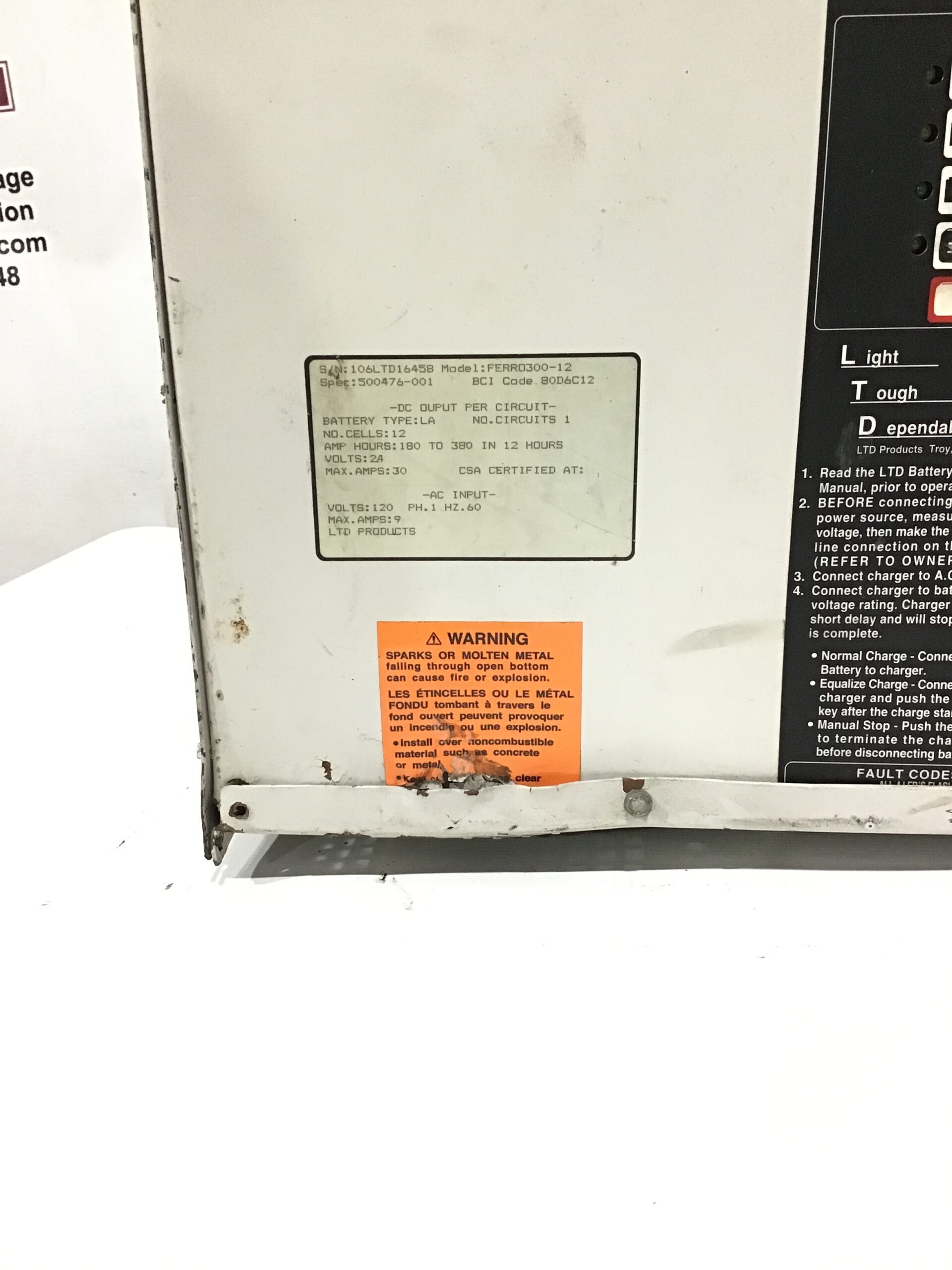

⚙️ Key Specifications:

• Brand: LTO Products
• Model: FERRO300-12
• Serial Number: 106LTD16458
• Voltage Output: 24 Volts DC
• Max Output Current: 30 Amps
• Battery Type: LA (Lead Acid)
• Cells: 12
• Amp Hour Range: 180–380 AH (12-hour rate)
• Circuits: 1
• AC Input: 120V, 1 Phase, 60 Hz
• CSA Certified

🔋 Features:

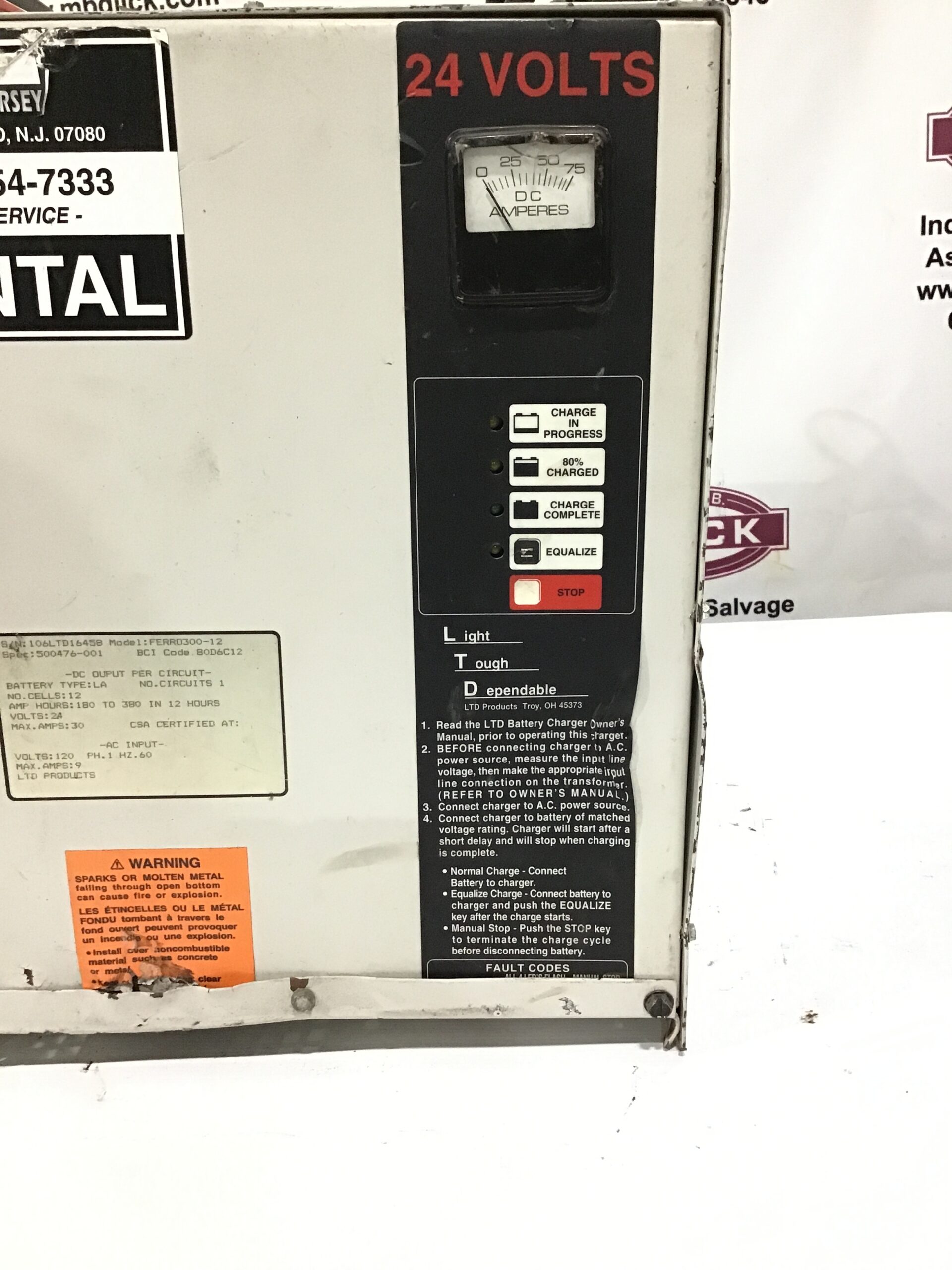

• Built-in DC ammeter for real-time charge monitoring
• LED indicators for:
  • Charge in Progress
  • 80% Charged
  • Charge Complete
  • Equalize Mode
• Equalize charging function to extend battery life
• Rugged steel enclosure for industrial use
• Simple push-button operation
• Rental unit labeled but fully functional for continued use

🏭 Ideal For

• Forklifts
• Electric pallet jacks
• Scissor lifts
• Floor scrubbers
• Other 24V industrial battery systems
