M.T. Motori Elettrici TN71B/4 0.37kW 0.5HP 208/360V 60Hz ATEX Electric Motor

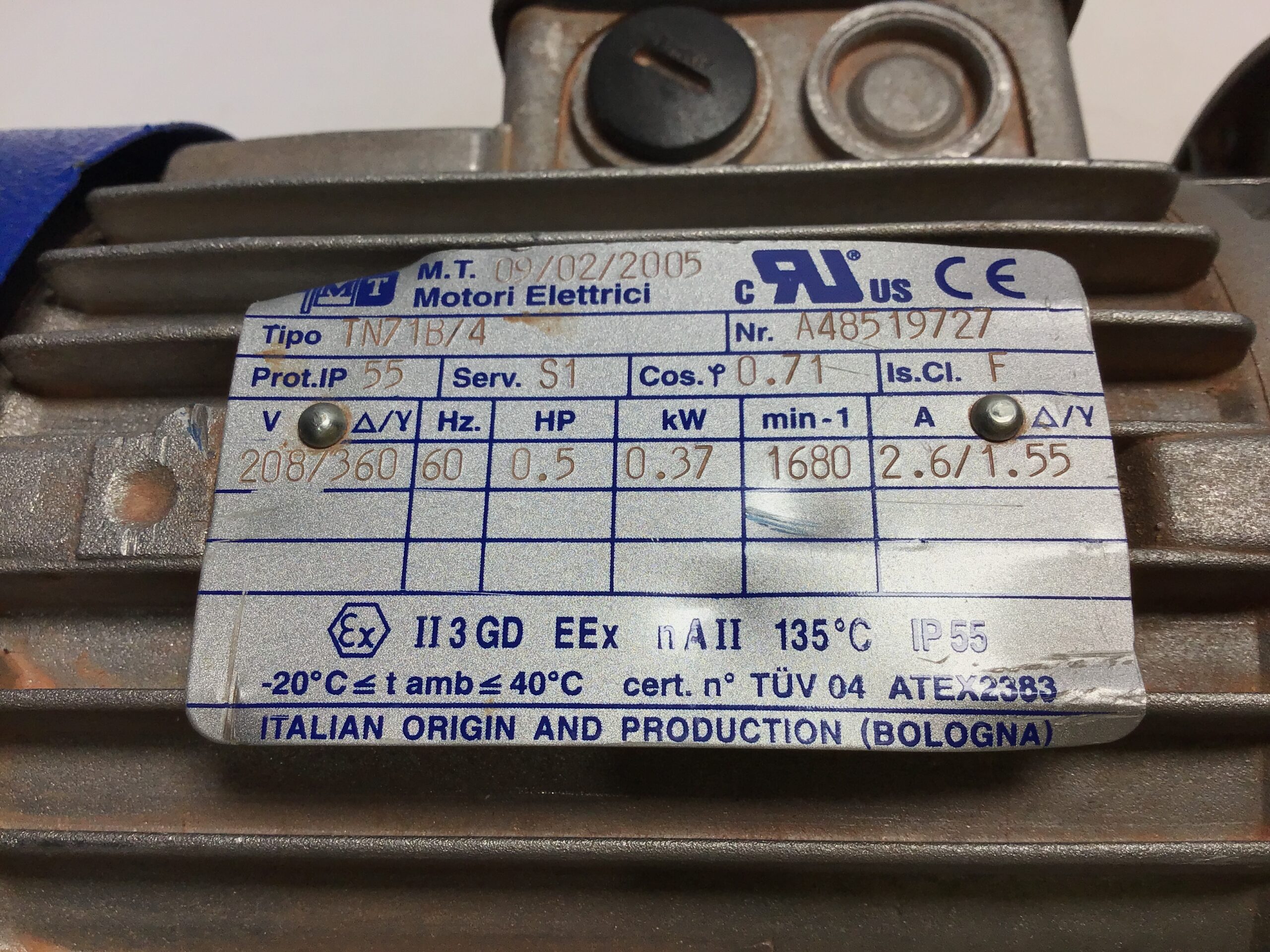

The M.T. Motori Elettrici TN71B/4 Industrial Electric Motor is an Italian-manufactured AC motor designed for integration into a variety of industrial machinery and mechanical drive systems. Delivering a rated output of 0.37 kW (0.5 HP), it operates at 208/360 V and 60 Hz, with a nominal speed of 1680 RPM. Featuring a robust finned aluminium housing, flange mounting configuration and projecting drive shaft, this motor offers a practical design for compatible industrial installations. Its technical specifications include IP55 ingress protection, Class F insulation, S1 continuous-duty operation and a power factor of 0.71. The motor nameplate displays ATEX and explosion-protection markings, including EEx nA II and a 135°C temperature marking, making it important to verify the applicable certification for the intended operating environment. Identified by model TN71B/4 and identification number A48519727, this versatile industrial motor is suitable for consideration in compatible pump systems, ventilation equipment, industrial machinery, mechanical drive assemblies, maintenance operations and replacement installations requiring matching electrical ratings and mechanical specifications.

Specifications:

• Brand: Motori Elettrici

• Model: TN71B/4

• Identification Number: A48519727

• Rated Power: 0.37 kW / 0.5 HP

• Voltage: 208/360 V

• Frequency: 60 Hz

• Rated Speed: 1680 RPM

• Rated Current: 2.6 A / 1.55 A

• Power Factor: 0.71

• Duty Rating: S1 Continuous Duty

• Insulation Class: F

Applications:

• Industrial machinery and manufacturing equipment

• Industrial pumps and fluid-handling systems

• Ventilation and air-moving equipment

• Mechanical drive systems and equipment assemblies

• Industrial automation and production machinery

• Maintenance and replacement motor installations
