M.T. Motori Elettrici TN71B/4 0.37kW 0.5HP 3 Phase Electric Motor ATEX IP55 50

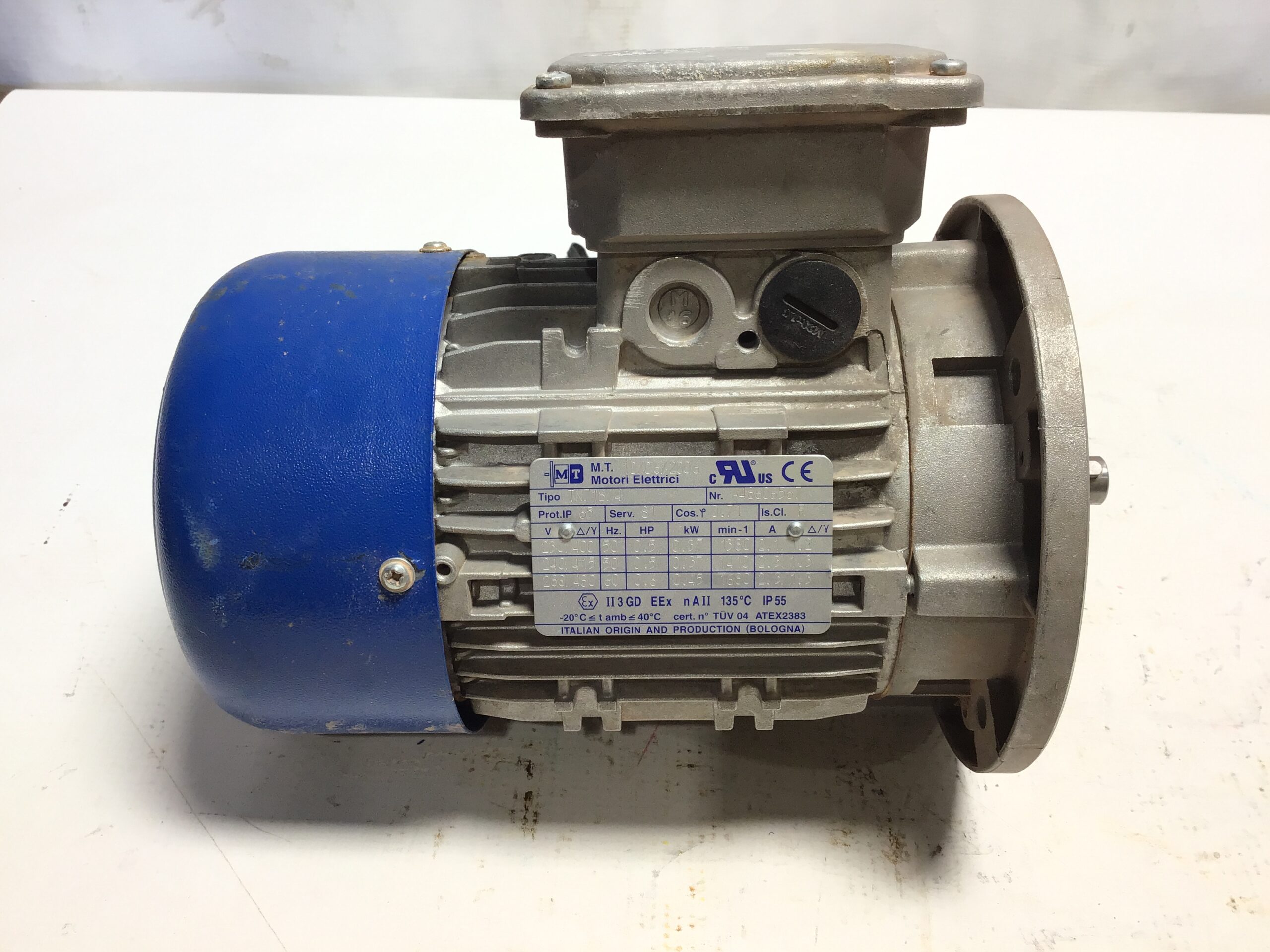

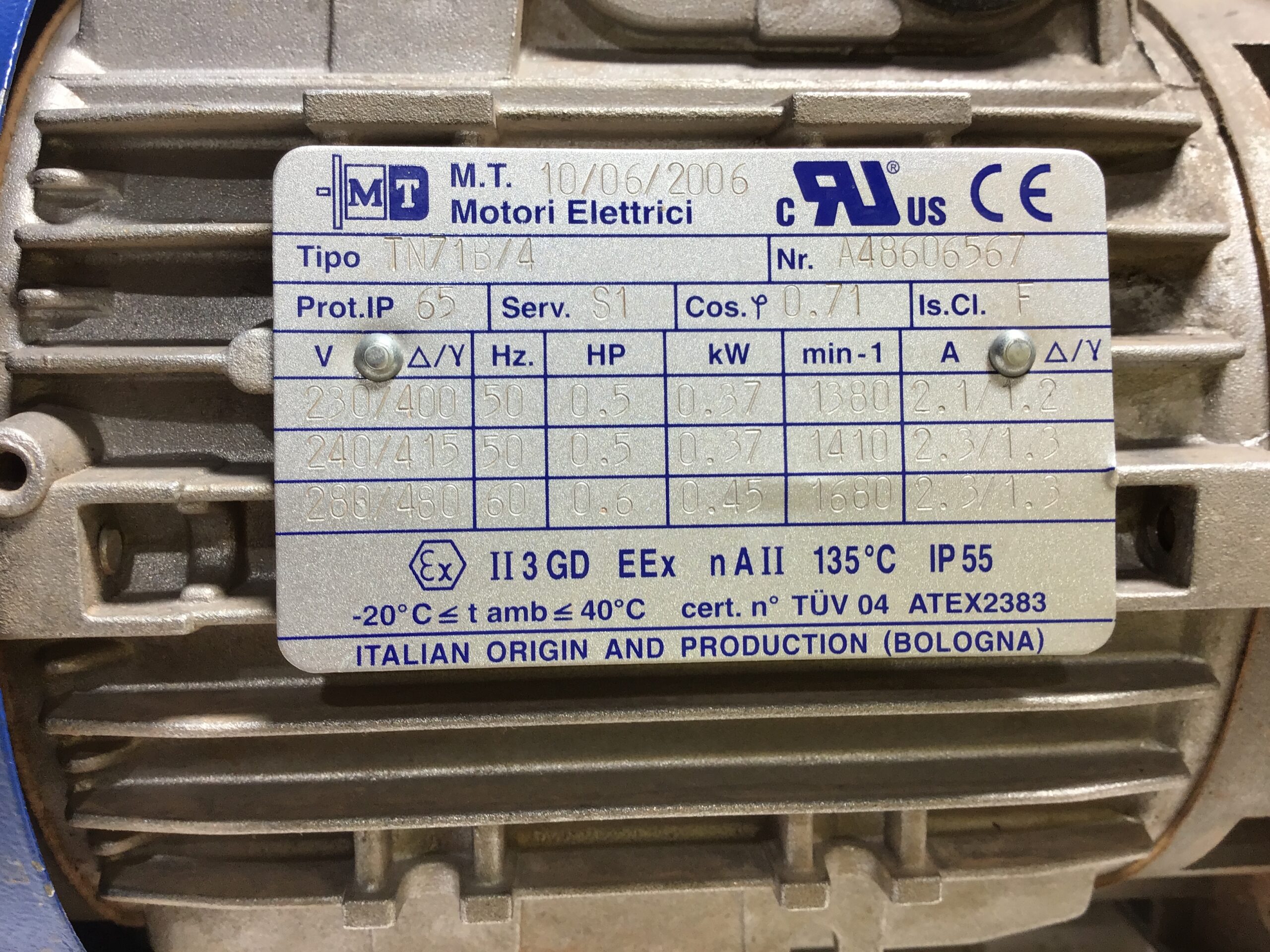

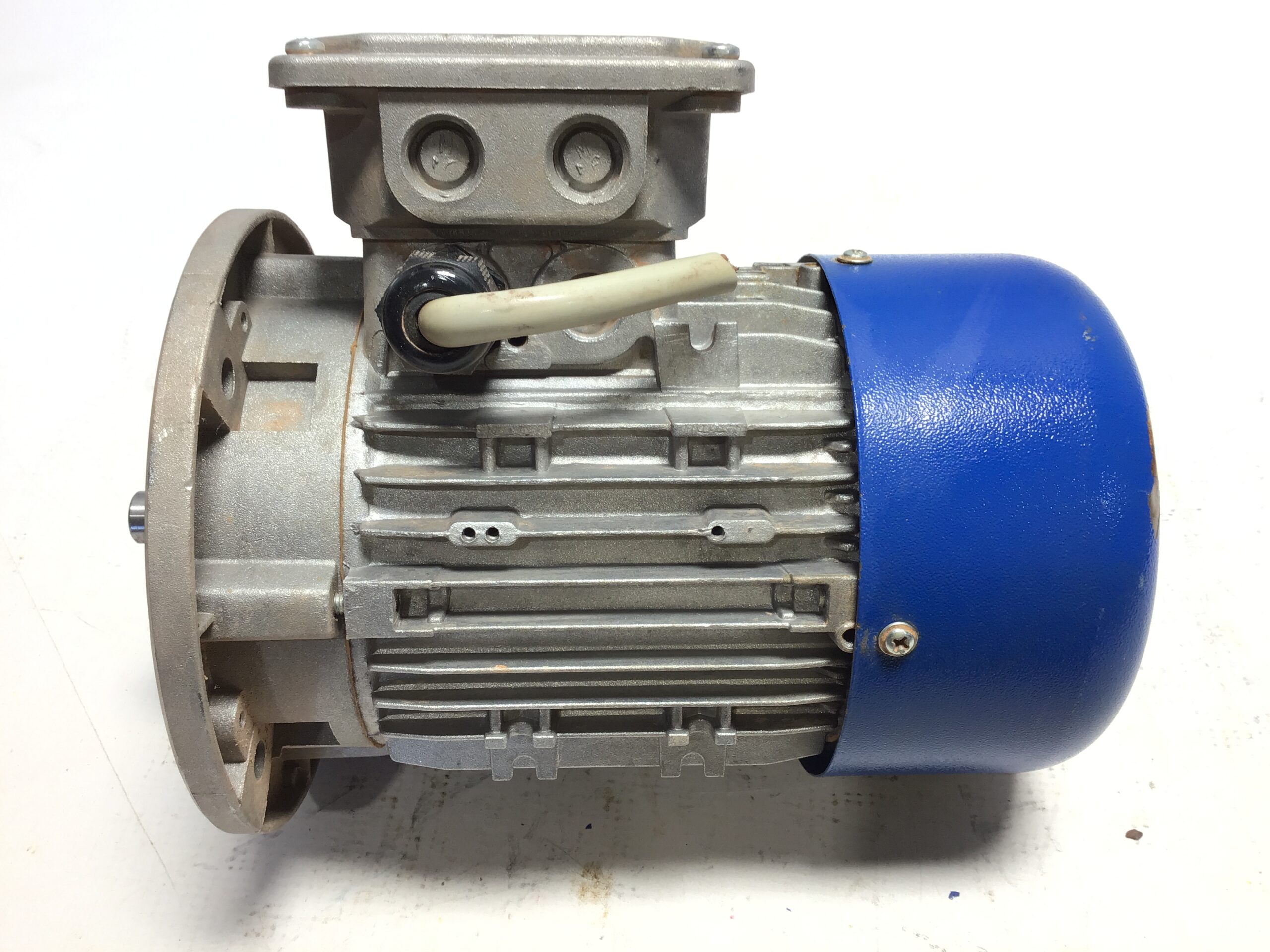

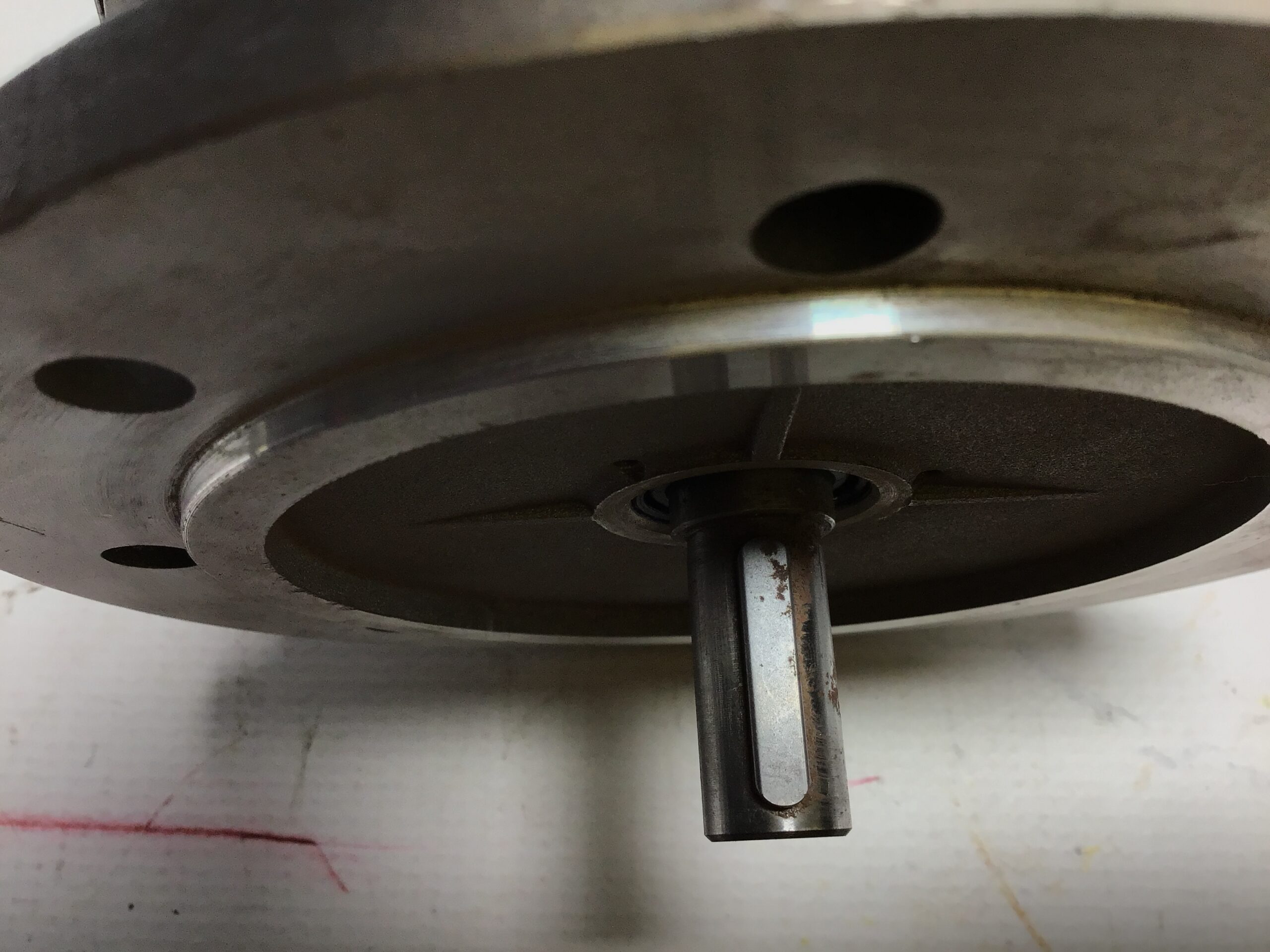

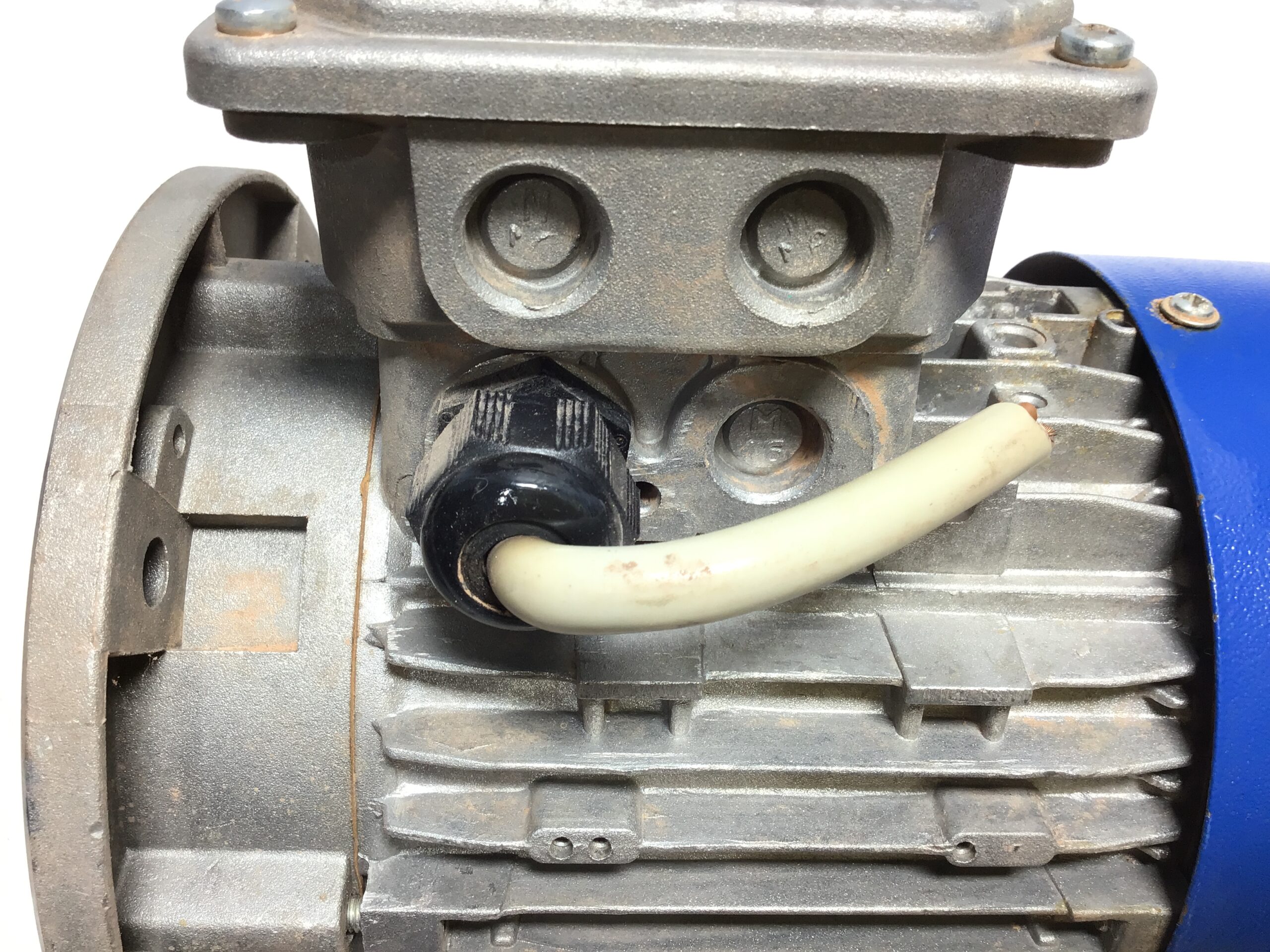

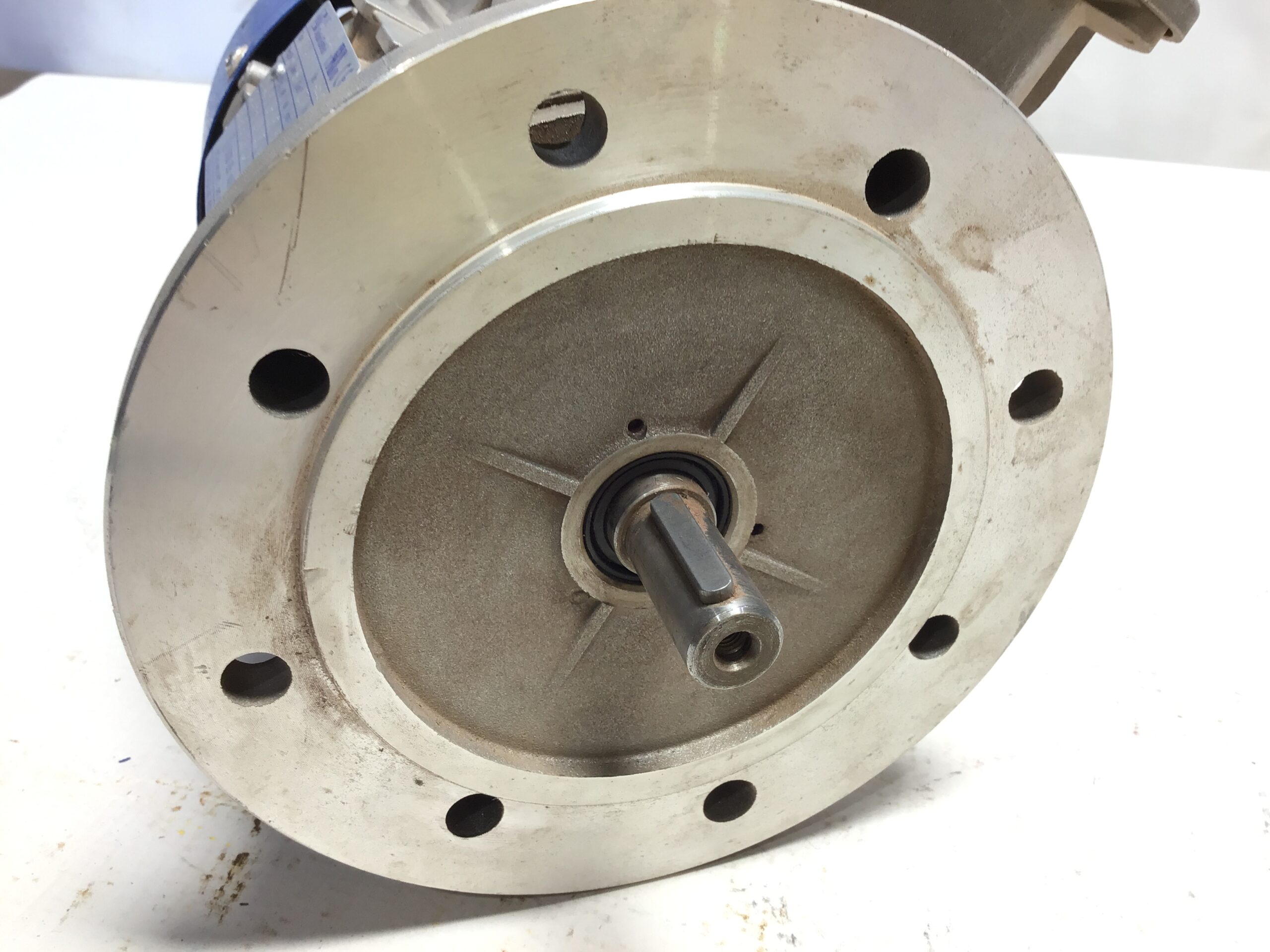

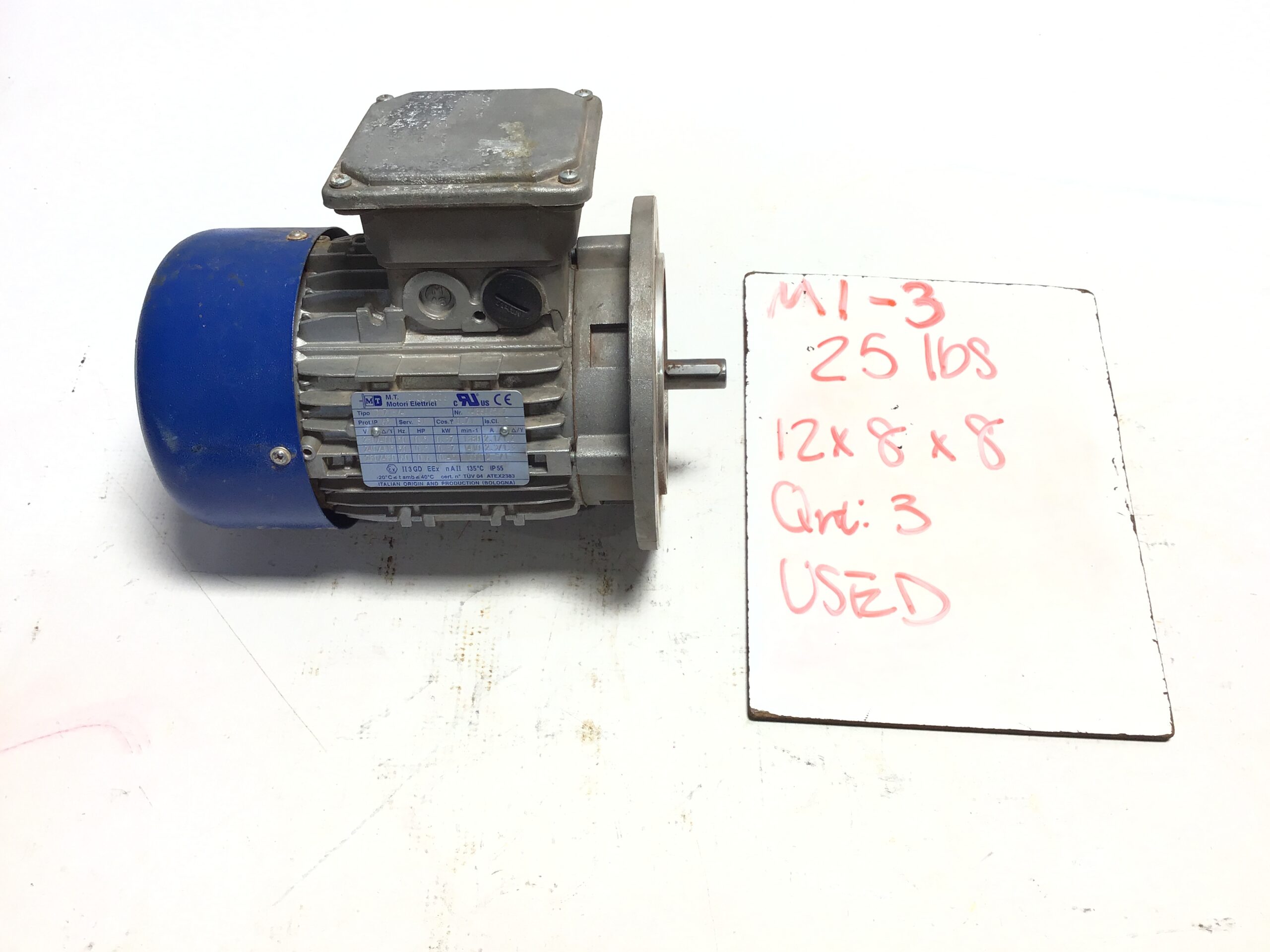

Industrial Three-Phase Electric Motor, an Italian-engineered motor designed for reliable performance in compatible industrial machinery and mechanical drive systems. Manufactured by M.T. Motori Elettrici in Bologna, Italy, this compact motor delivers 0.37 kW (0.5 HP) of rated power and features a robust ribbed metal housing, flange-mount configuration, Class F insulation, S1 continuous-duty operation, and IP55 protection. Supporting 230/400 V and 240/415 V at 50 Hz, as well as 280/480 V at 60 Hz, it operates at rated speeds of 1380, 1410, or 1680 RPM, depending on the specified voltage and frequency. The motor’s nameplate also displays ATEX-related marking II 3 GD, EEx nA II, 135°C, making it a suitable candidate for consideration in compatible industrial applications where the complete certification and installation requirements have been verified. Ideal for industrial machinery, compatible pumps, ventilation systems, gearboxes, production equipment, and mechanical drive assemblies, the M.T. TN71B/4 combines a compact design with versatile electrical specifications for industrial motor replacement and equipment integration.

Specifications:

• Brand: Motori Elettrici

• Part Number: TN71B/4

• Motor Type: Three-Phase AC Induction Motor

• Rated Power: 0.37 kW / 0.5 HP

• Voltage: 230/400 V, 240/415 V (50 Hz); 280/480 V (60 Hz)

• Frequency: 50/60 Hz

• Phase: Three Phase

• Protection Rating: IP55

• Insulation Class: F

• Mounting Type: Flange Mount

Applications:

• Industrial machinery and manufacturing equipment

• Industrial pumps and fluid-handling systems

• Ventilation systems and compatible industrial fans

• Gearboxes and mechanical drive assemblies

• Production lines and automated equipment

• Workshop machinery and industrial tools

• Material-handling equipment

• Industrial applications requiring a motor with appropriate IP55 protection
