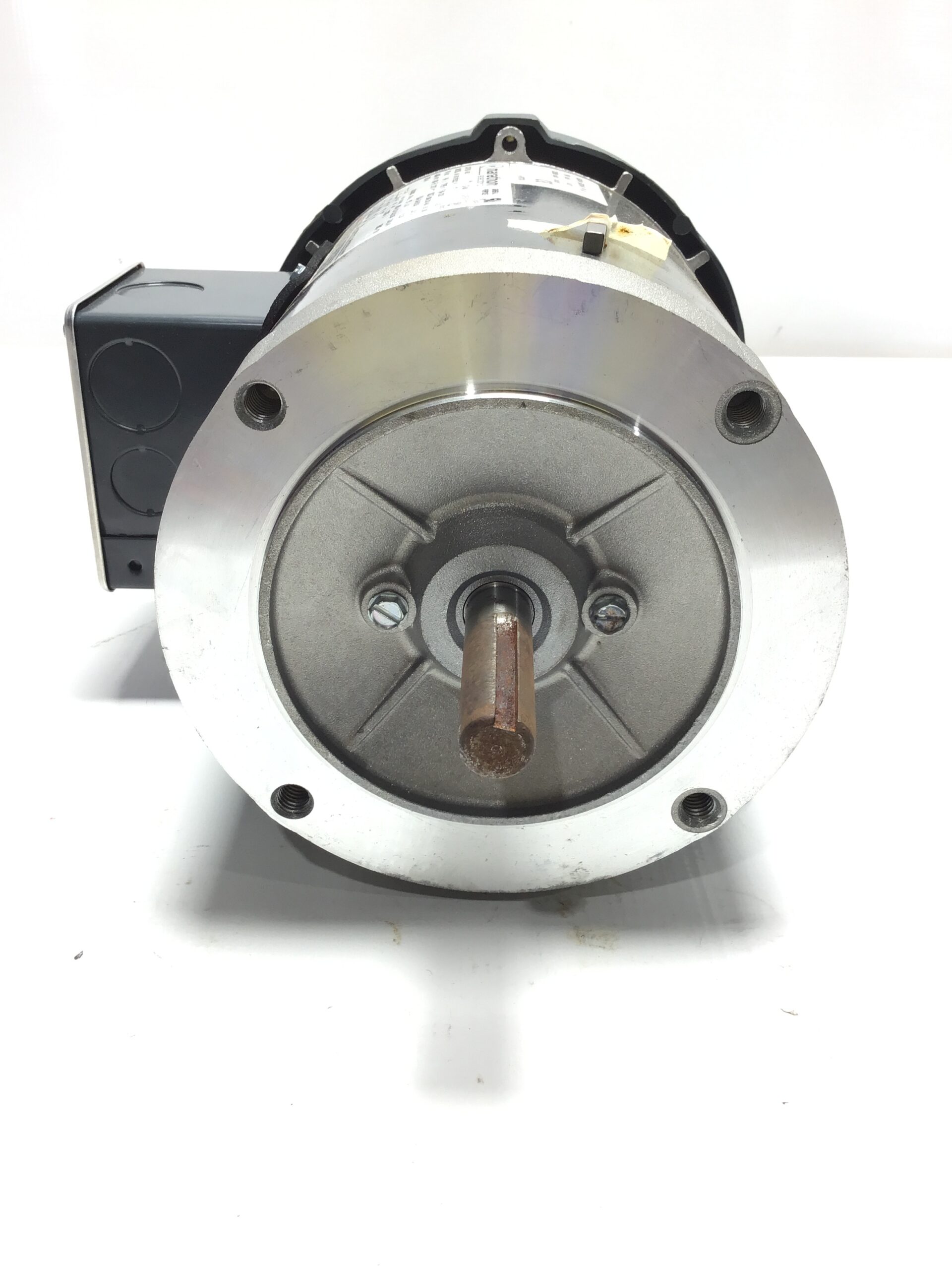

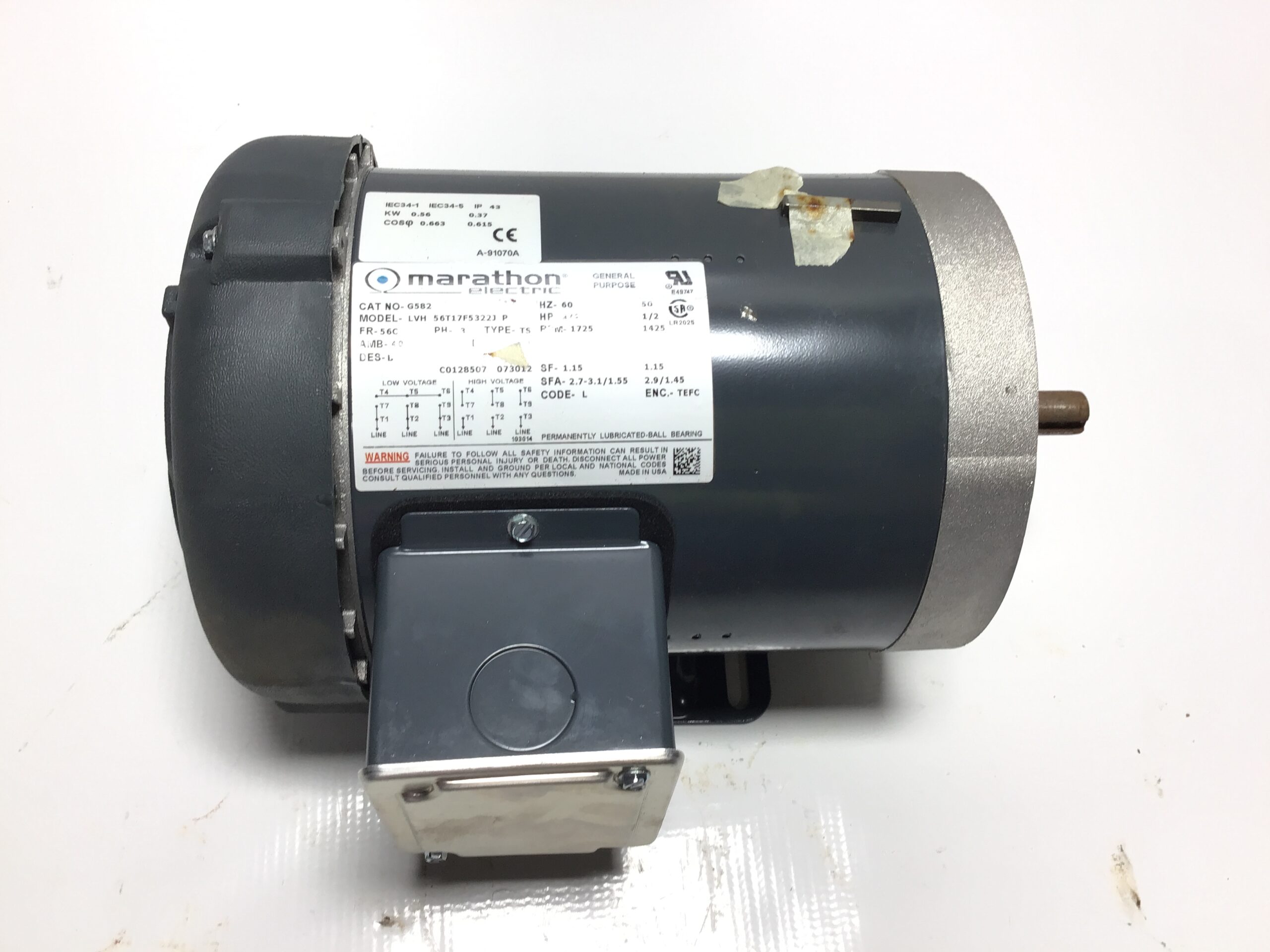

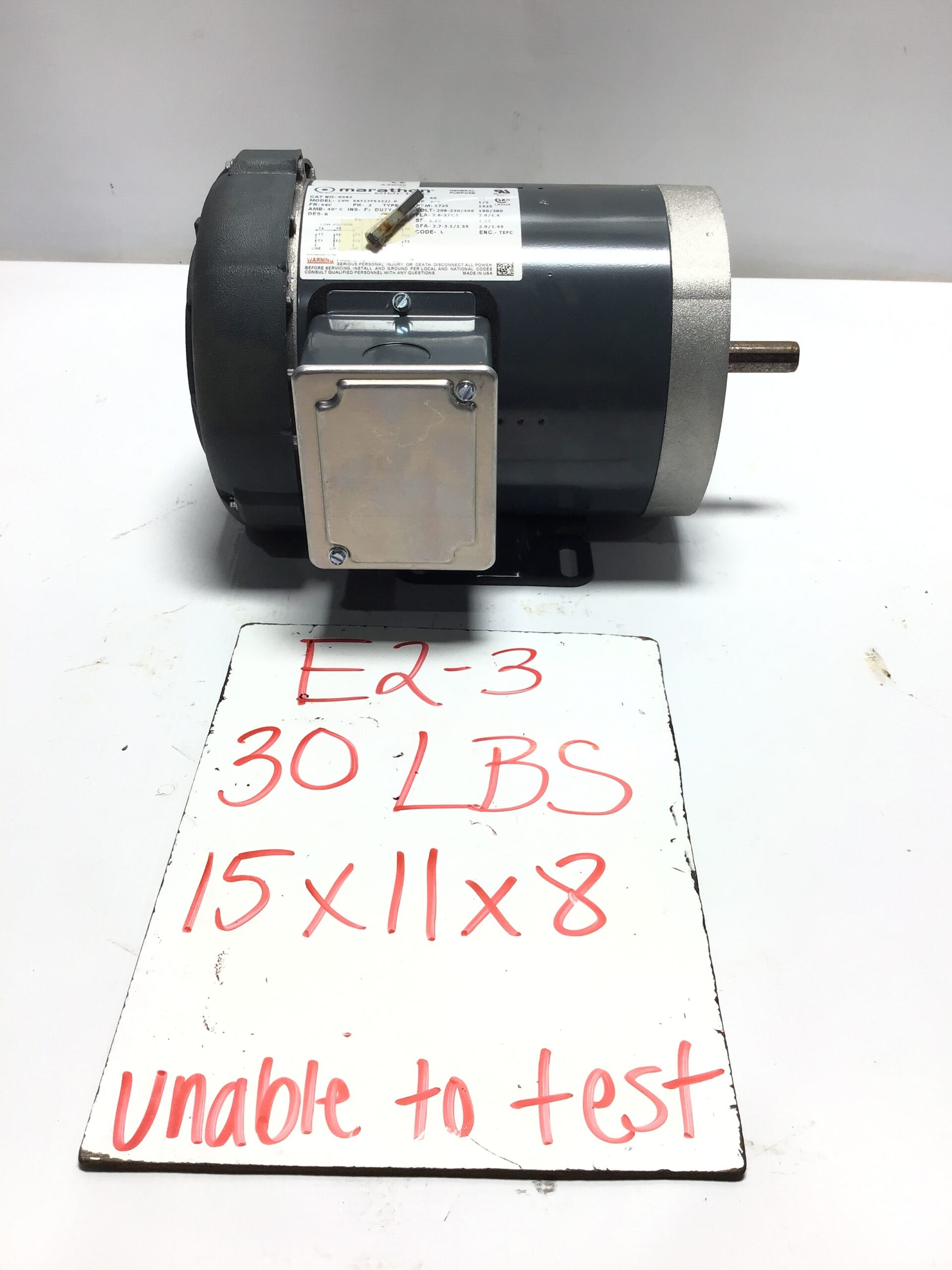

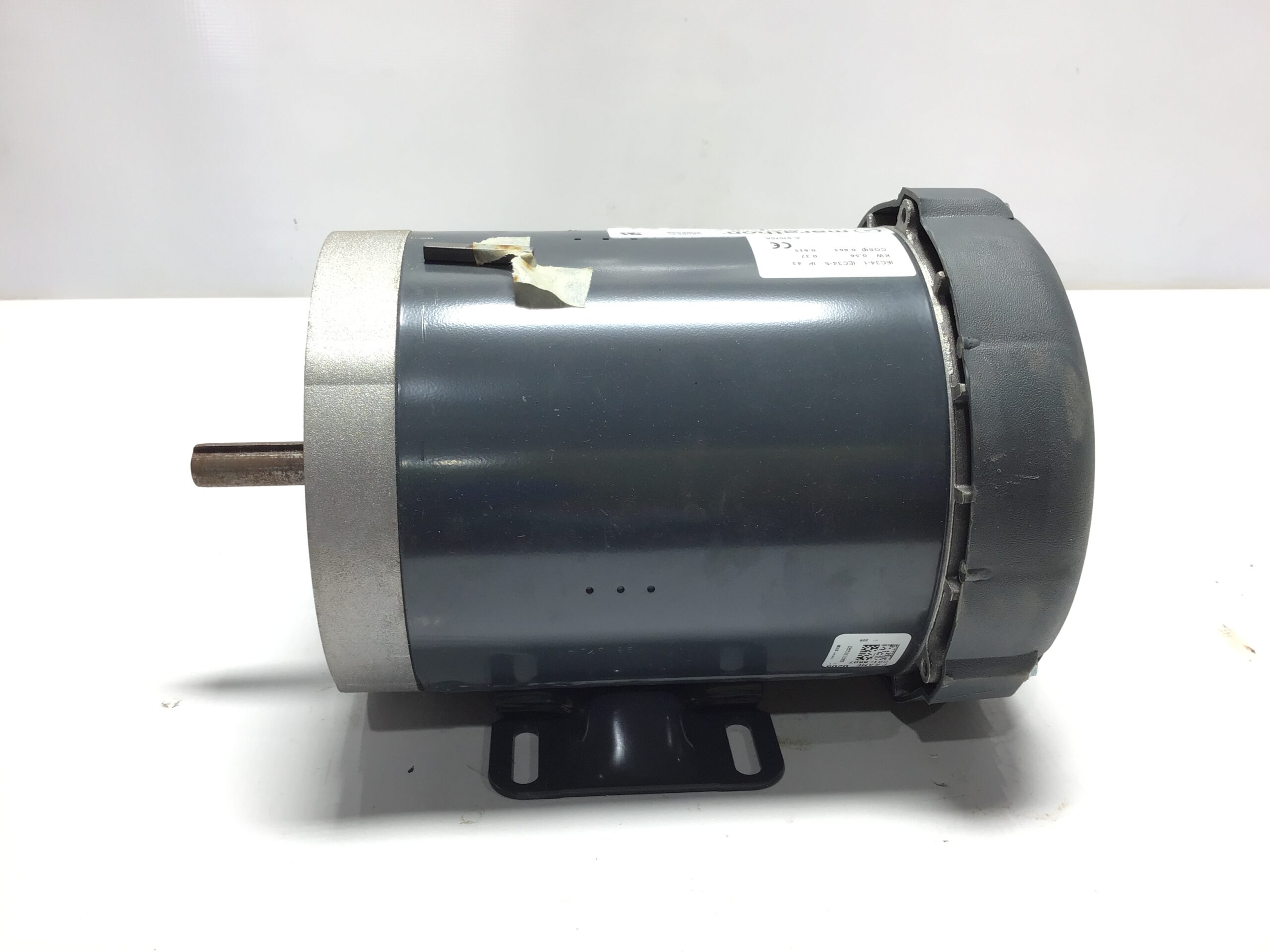

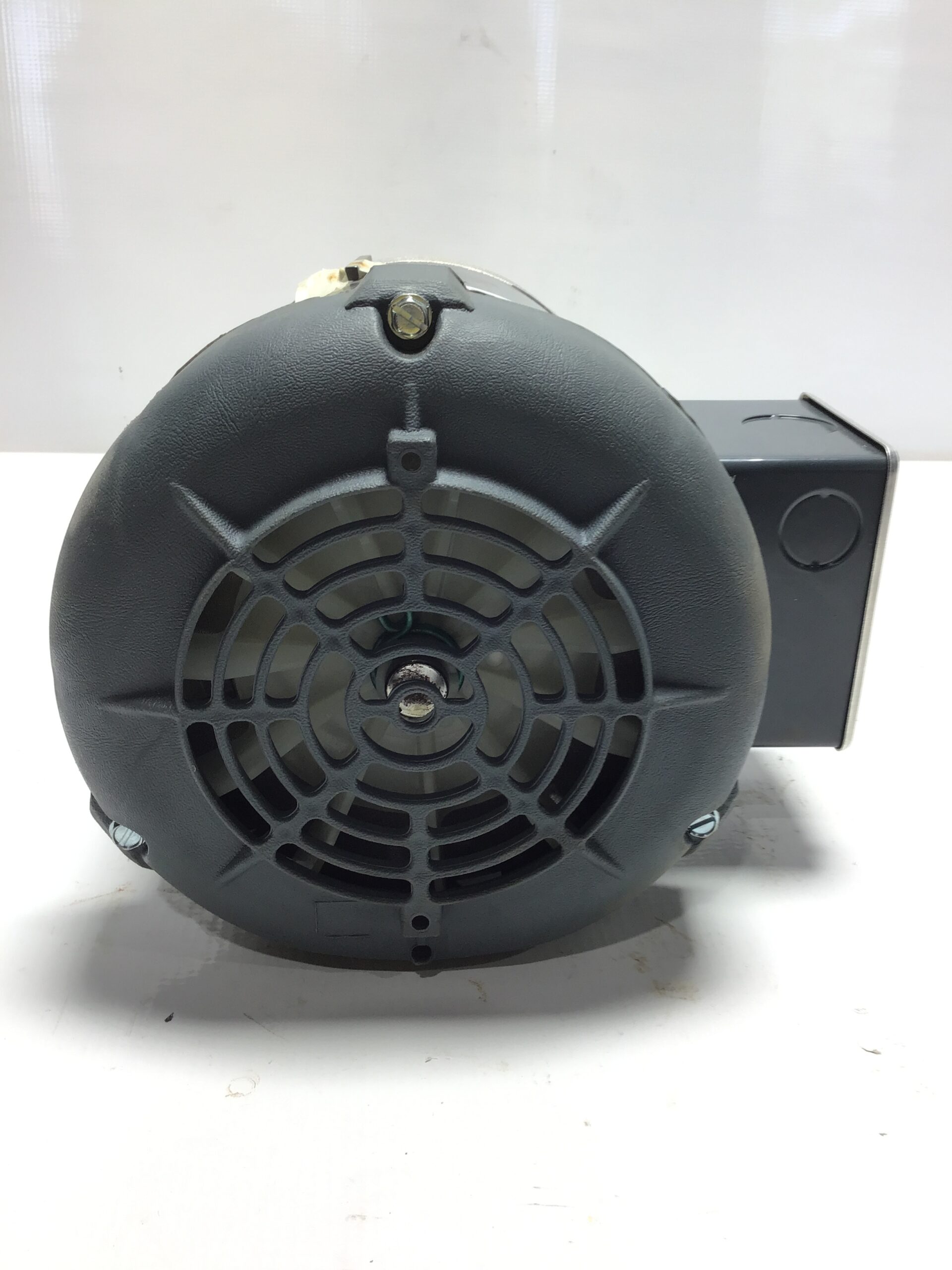

Built for dependable industrial performance, this Marathon Electric G582 General Purpose Motor delivers 3/4 HP at 1725 RPM and features a rugged TEFC (Totally Enclosed Fan Cooled) design for enhanced protection against dust, dirt, and harsh operating environments. Engineered with a versatile 56C frame, dual-voltage 208-230/460V operation, and continuous-duty capability, this motor is an excellent choice for pumps, conveyors, compressors, fans, HVAC systems, and a wide range of manufacturing equipment. Its durable construction, permanently lubricated ball bearings, and trusted Marathon Electric quality provide long-lasting reliability, efficient operation, and reduced maintenance requirements, making it an ideal replacement or upgrade for demanding commercial and industrial applications.

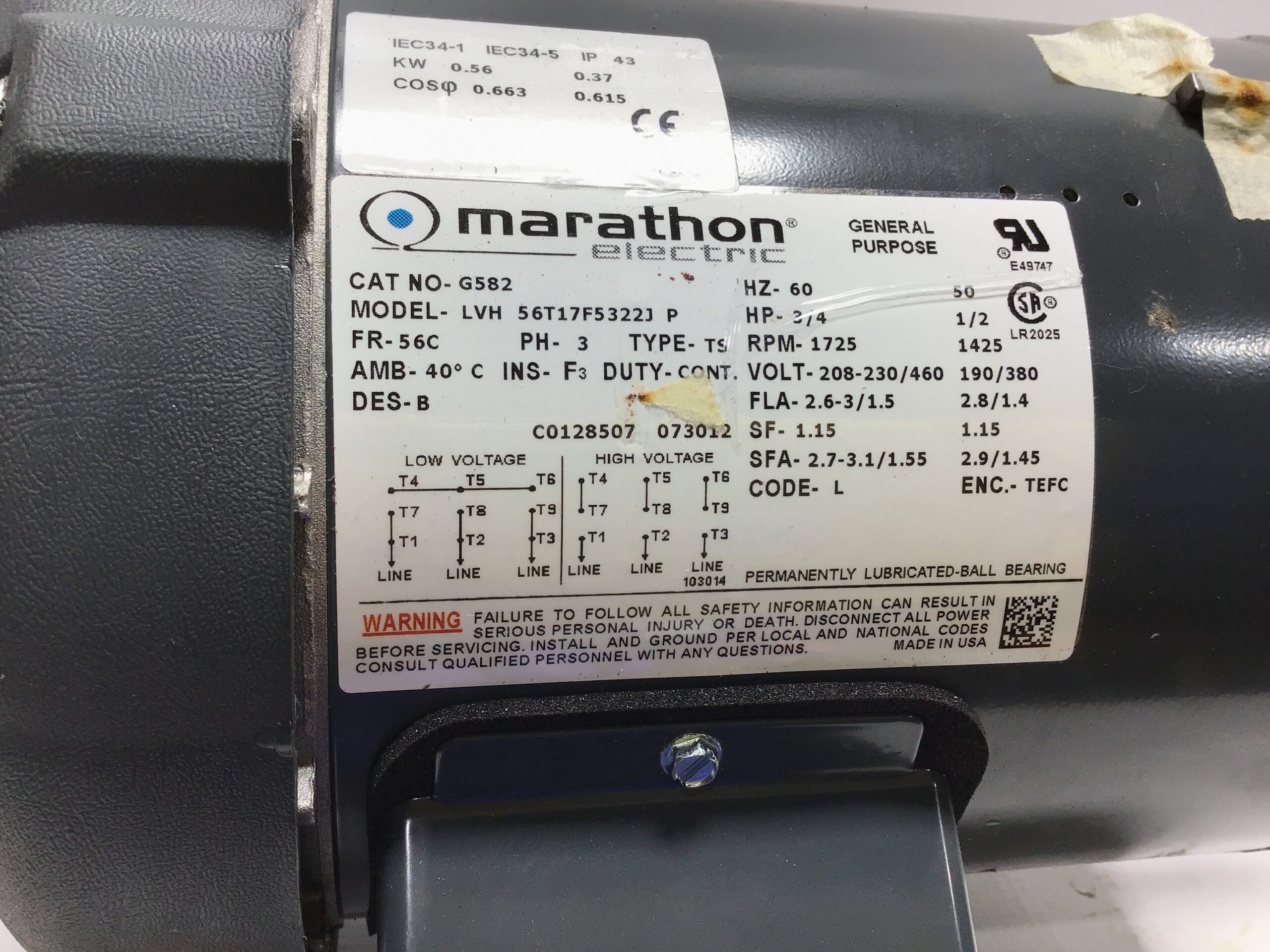

Specifications:
- Brand: Marathon Electric
- Catalog Number: G582
- Model: LVH56T17F5322J
- Horsepower: 3/4 HP
- RPM: 1725
- Phase: 3 Phase
- Frequency: 60 Hz
- Frame Size: 56C
- Voltage: 208-230/460V
- Full Load Amps: 2.6-3.0/1.5A
- Service Factor: 1.15
- Insulation Class: F
- Design: NEMA Design B
- Enclosure: TEFC
- Ambient Rating: 40°C
- Bearings: Permanently Lubricated Ball Bearings
Applications:
- Industrial Pumps
- Air Compressors
- Conveyor Systems
- HVAC Equipment
- Blowers & Fans
- Machine Tools
- Manufacturing Equipment
- Agricultural Machinery
- Processing Equipment
