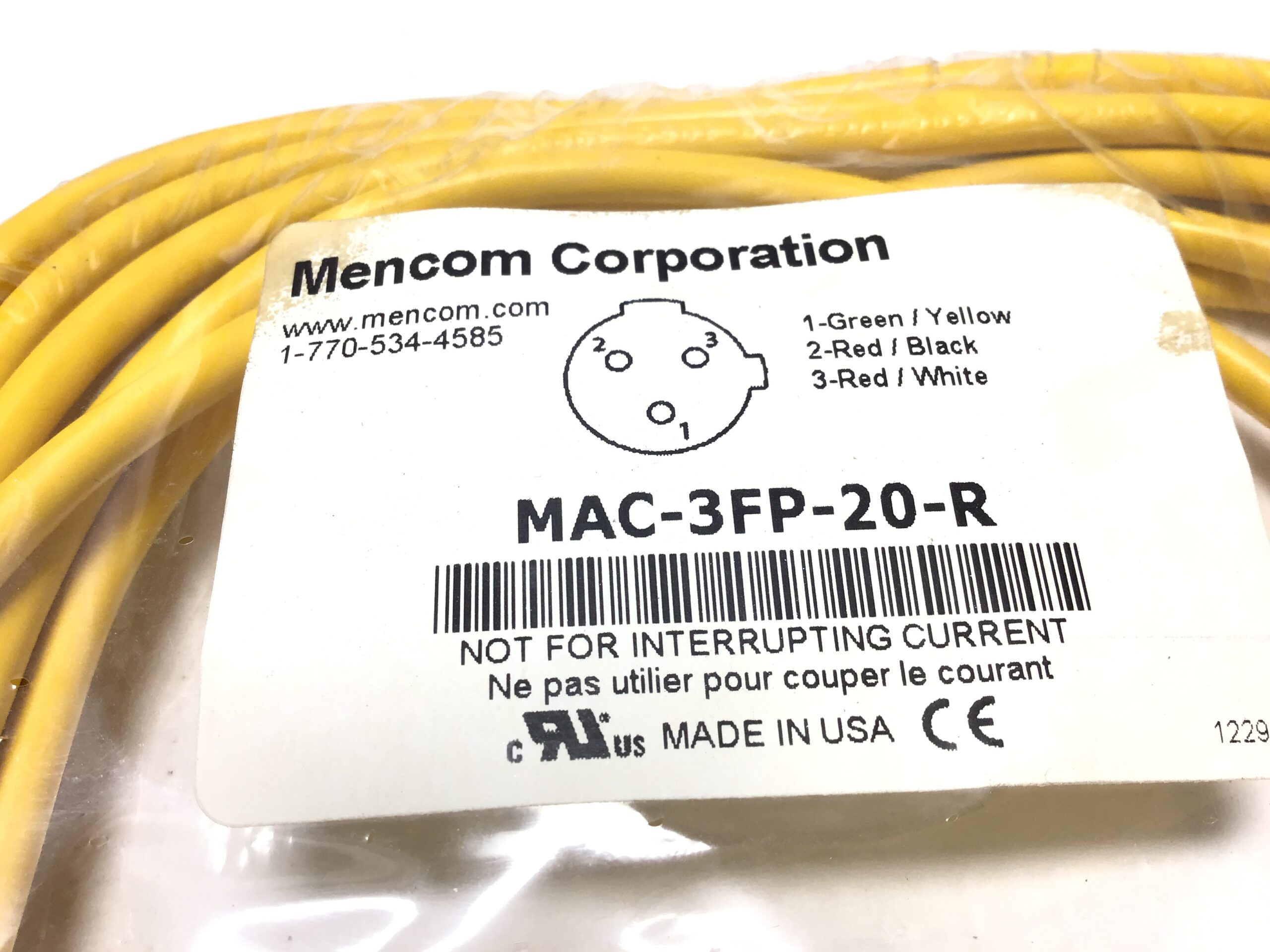

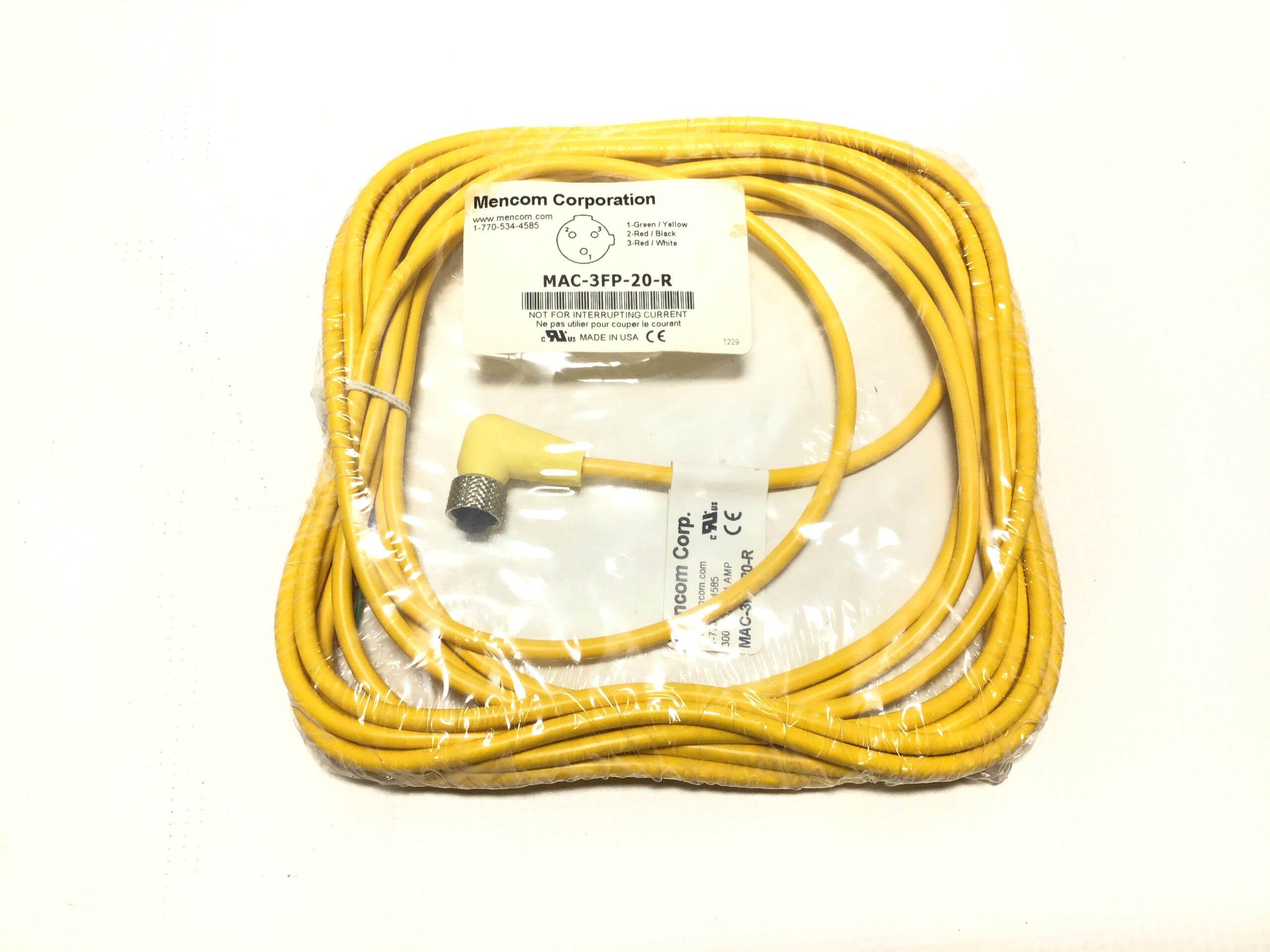

Mencom Corp. MAC-3FP-20-R Sensor Cordsets

1. General Overview

• Manufacturer: Mencom Corporation

• Model Number: MAC-3FP-20-R

• Product Type: Sensor Cordset / M12 Female Connector Cable Assembly

• Series: MAC (Mencom Automation Cordset Series)

• Function: Provides secure electrical connection between sensors, actuators, and control systems

• Typical Applications: Industrial automation, robotics, machinery, process control, and manufacturing equipment

2. Key Features

• High-quality molded connector for durability and strain relief

• Pre-wired assembly for quick installation and reliable performance

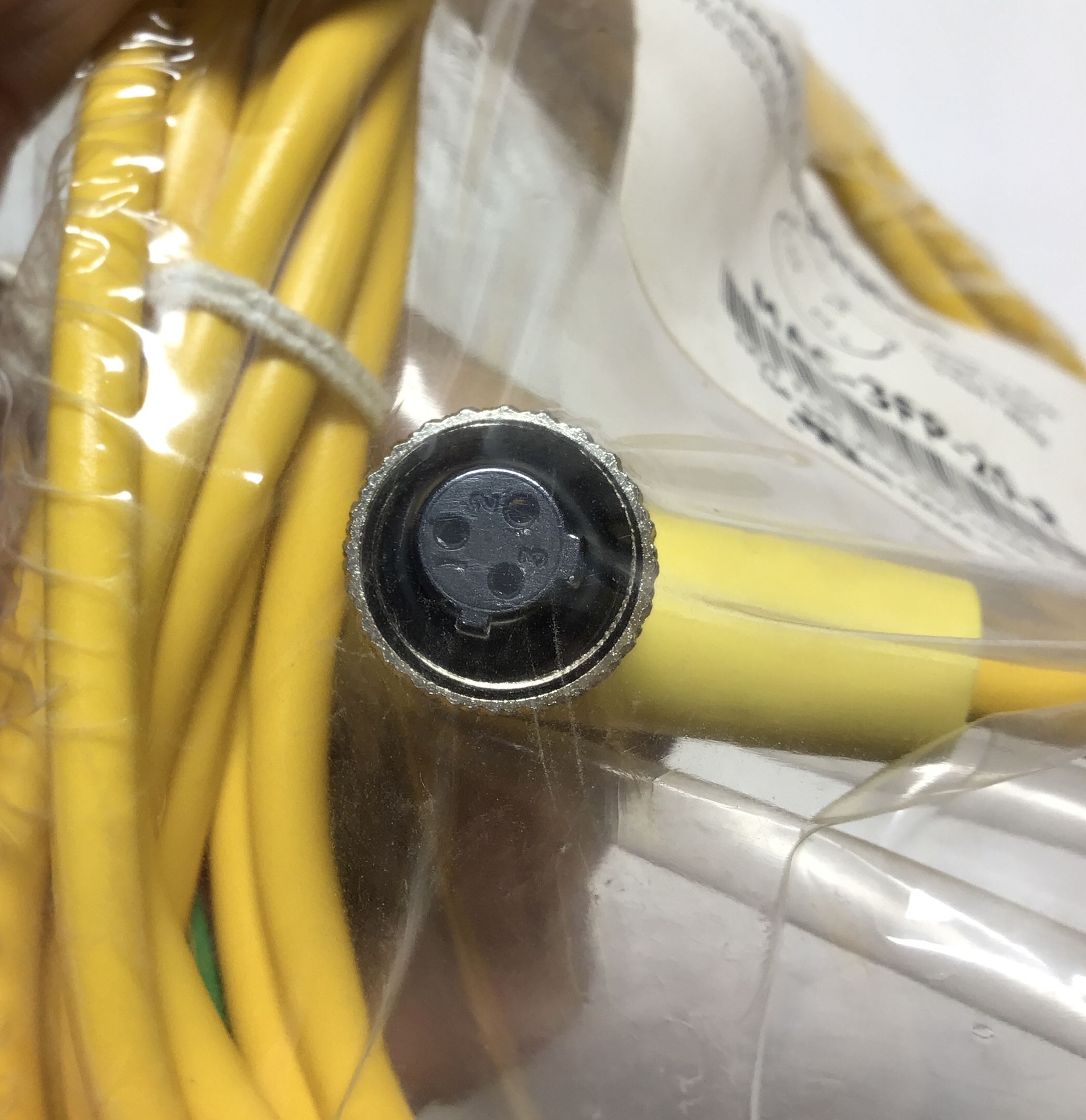

• Standard M12 (A-coded) 3-pole configuration for sensor applications

• Excellent resistance to vibration, oil, and mechanical stress

• Rugged industrial-grade PVC jacket for protection against wear and moisture

• Factory-tested for consistent electrical continuity and insulation integrity

3. Technical Specifications

• Connector Type: M12 female straight (3-pole)

• Cable Length: 20 feet (6 meters approximate)

• Wiring Configuration: 3-conductor cable

• Cable Jacket Material: PVC (Polyvinyl Chloride)

• Jacket Color: Red (denoted by “R” suffix)

• Conductor Size: 22 AWG (typical for MAC series)

• Voltage Rating: Up to 300V (depending on application)

• Current Rating: 4A continuous

• Temperature Range: -25°C to +90°C (-13°F to +194°F)

• Ingress Protection: IP67 when properly mated

4. Construction Details

• Connector Material: Nickel-plated brass or reinforced thermoplastic

• Contact Material: Gold-plated brass contacts for corrosion resistance

• Coupling Mechanism: Threaded M12 connection for secure fit

• Cable Type: Shielded or unshielded (depending on configuration)

5. Mechanical & Electrical Performance

• High vibration resistance for industrial environments

• Low contact resistance ensuring reliable signal transmission

• Resistant to oil, coolants, and most industrial chemicals

• Overmolded design enhances strain relief and cable lifespan

6. Compliance & Standards

• UL Recognized and CSA Certified (depending on configuration)

• Meets IEC standards for sensor connectivity

• RoHS compliant for environmental safety
