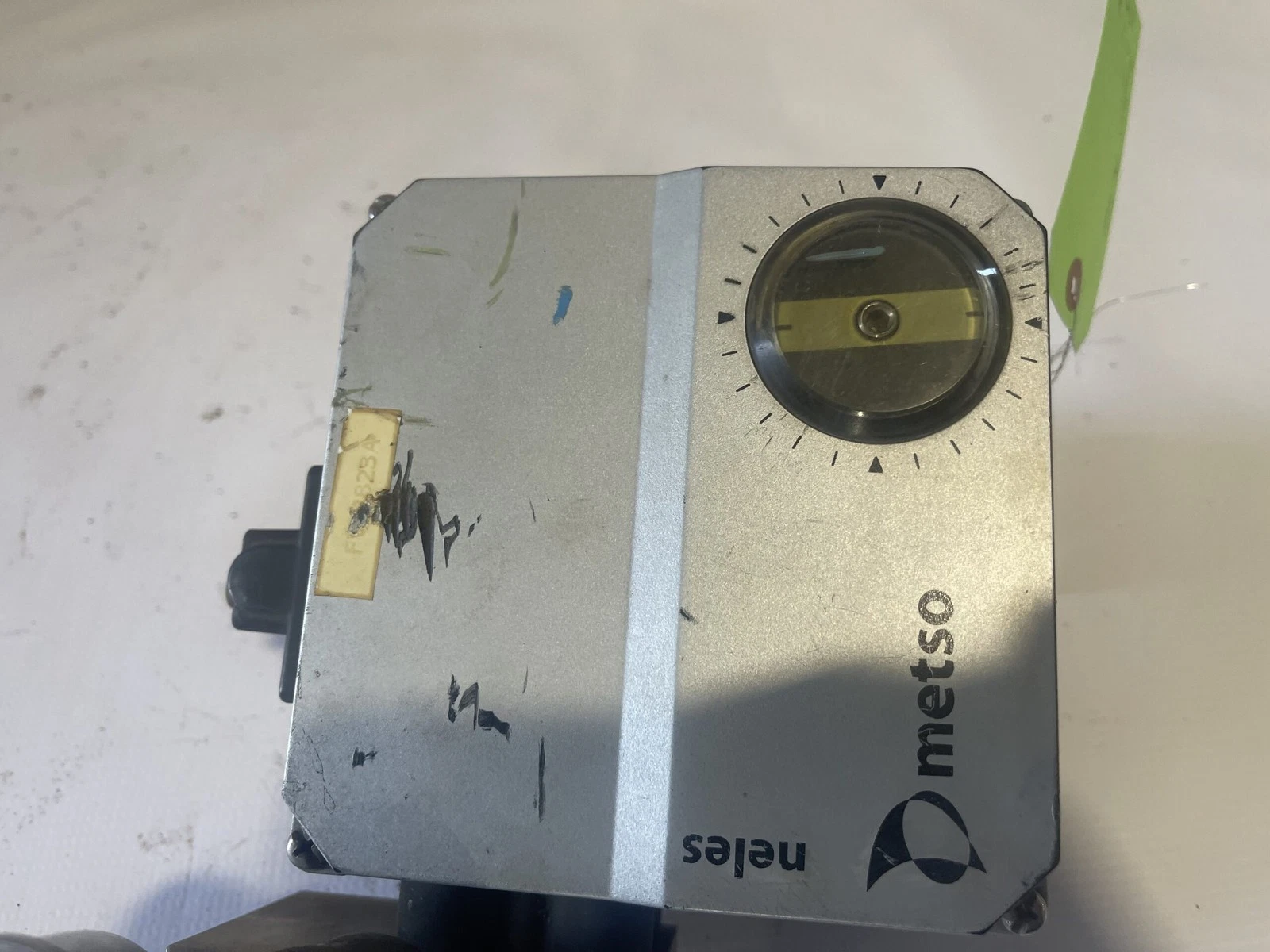

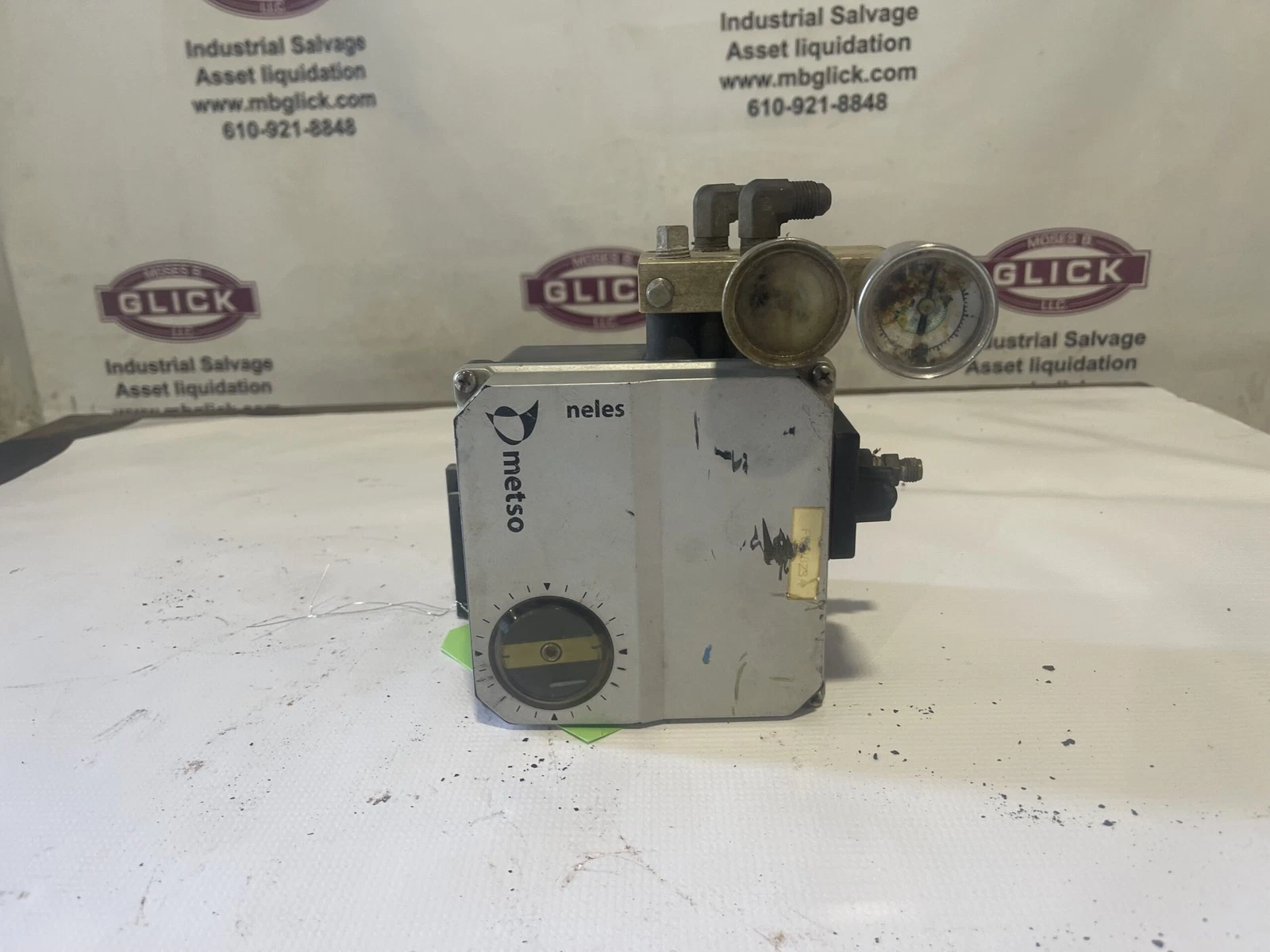

METSO NP724S/S1 PNEUMATIC POSITIONER PT09060395

📌 Overview

• Model: NP724S/S1 (part of the NP700 Series, formerly Neles by Metso)

• Input Signal Range: 3–15 psi (20–100 kPa) pneumatic control signal

• Pilot Valve: Delivers precise control using a standard 4 mm pilot (varies with variant, but typically 4 mm on NP724)

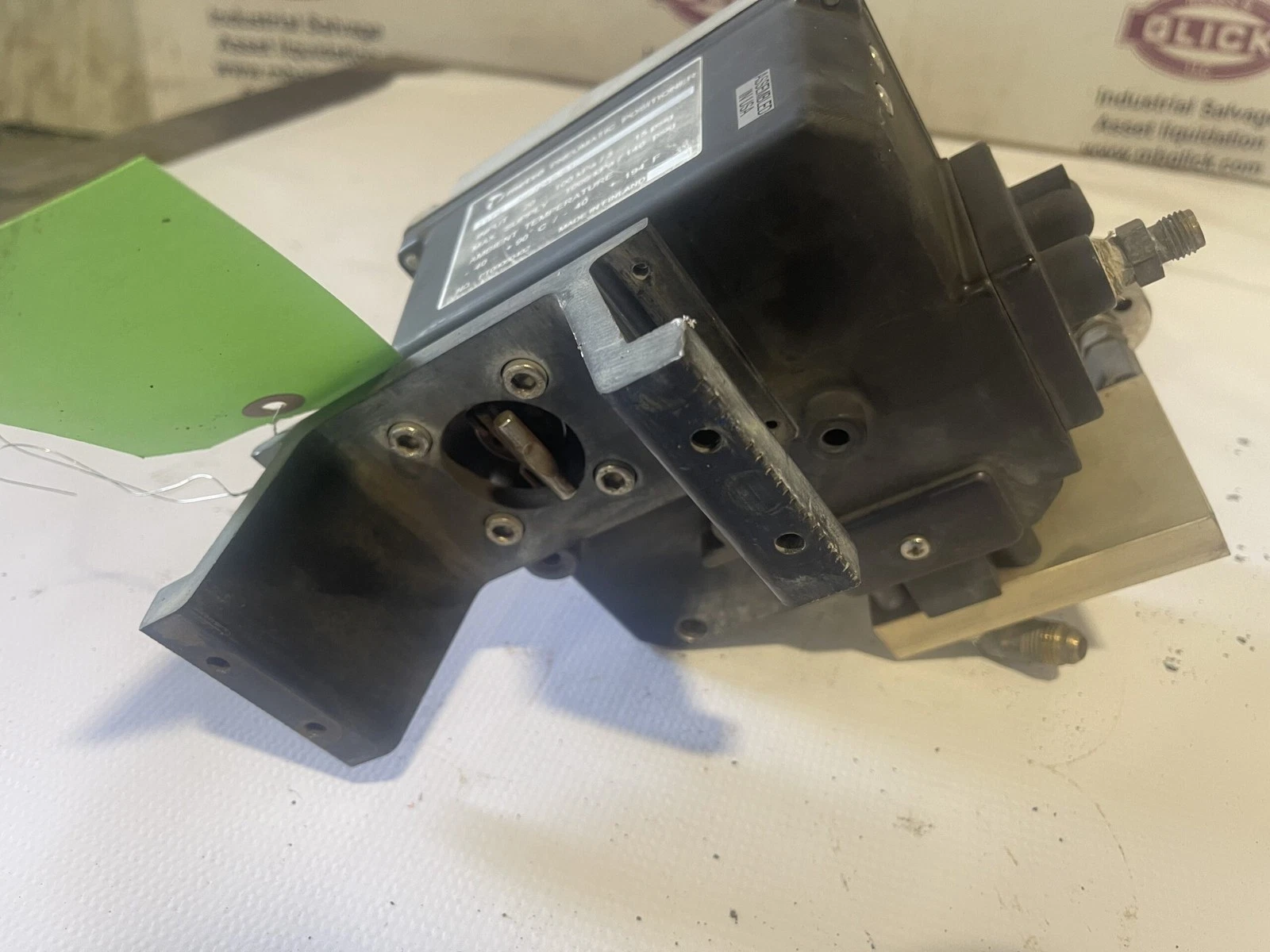

• Mounting / Connections:

  • ¼″ FPT inlet/outlet ports

  • Suitable for both single-acting and double-acting valve actuators

🧩 Key Features

• Direct or Reverse Action: Easily switch modes by flipping the changeover piece and feedback cam

• Fast, Accurate, Repeatable Response: Designed for rugged, vibration-coated environments, offering stability over -40 °F to +194 °F

• Robust Construction:

  • IP54-rated enclosure, ideal for washdown or outdoor applications

🔧 Use Cases & Applications

Perfect for a wide array of industrial control valves—whether rotary or linear—specifically in process industries like chemical, power generation, water treatment, oil & gas, and similar sectors. The NP724 series emphasizes rugged field performance, dependable mounting, and consistent calibration.
