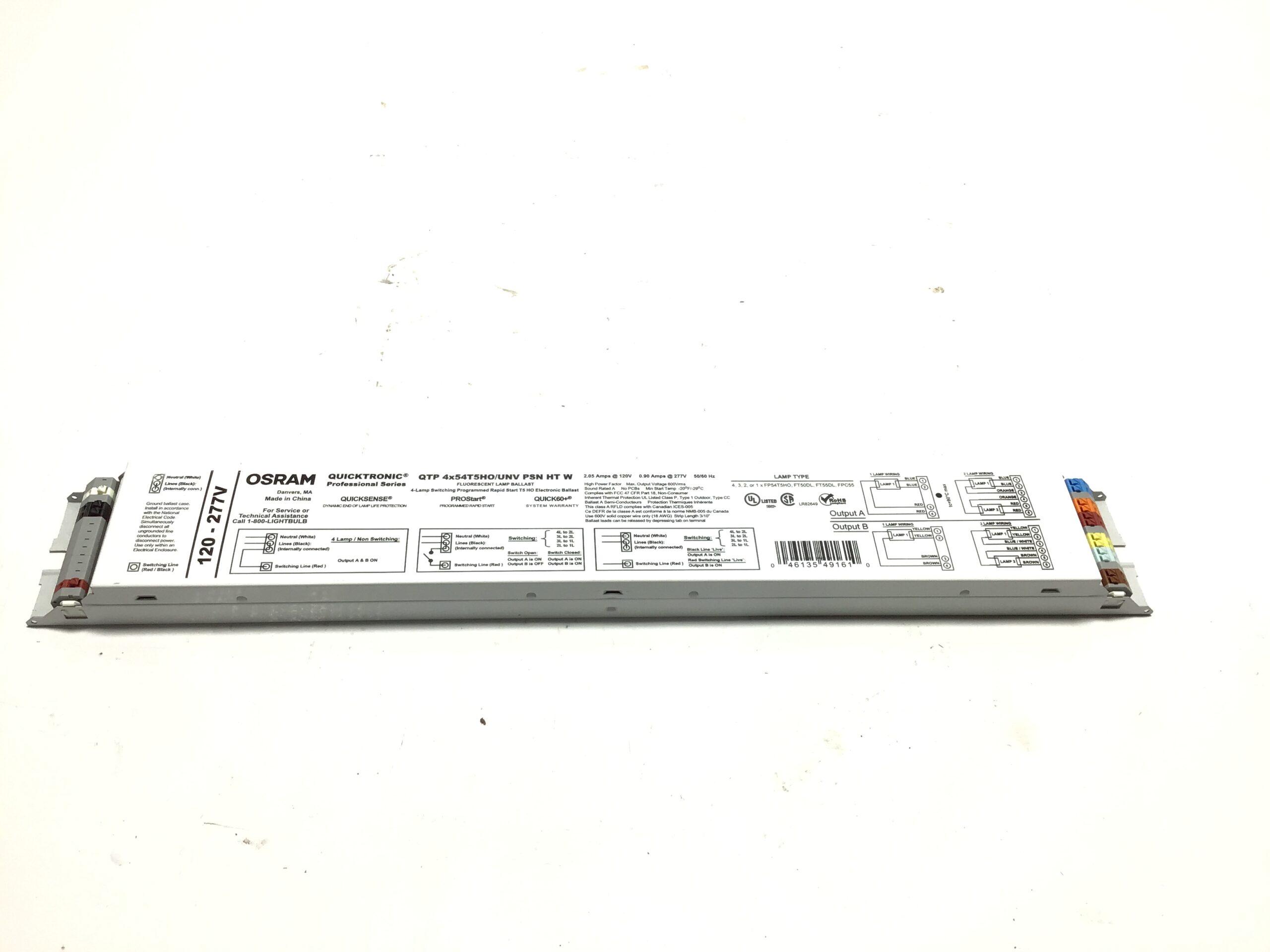

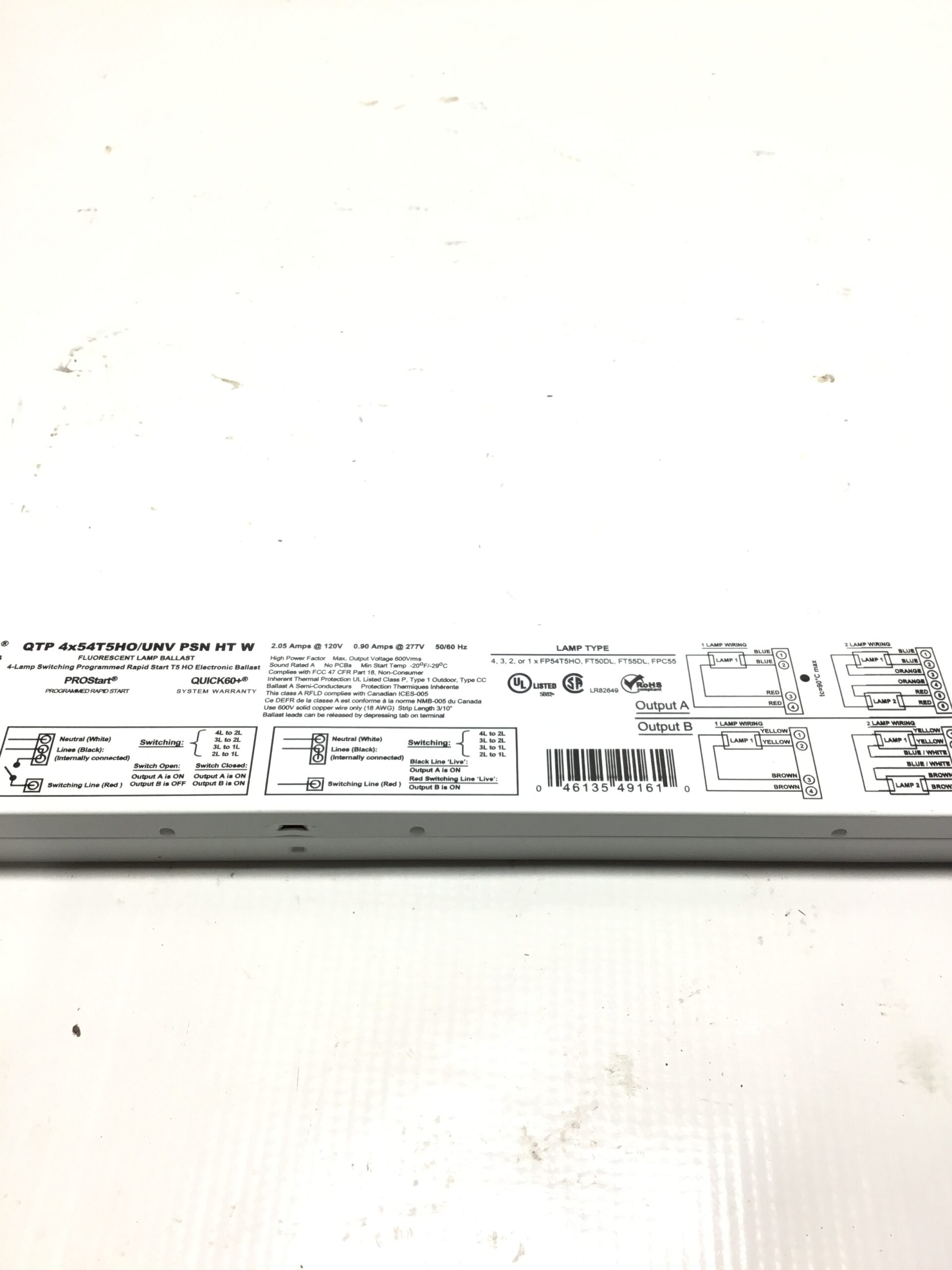

OSRAM QTP4X54T5HO/UNV PSN HT W T5HO Electronic Ballast

Upgrade or replace your fluorescent lighting system with the OSRAM Quicktronic QTP4X54T5HO/UNV-PSN-HT-W Electronic Ballast. Designed for T5 High Output (T5HO) lamps, this ballast supports up to 4 × 54W lamps and operates on a universal input voltage (120-277V), making it ideal for commercial, industrial, and office lighting applications.

The programmed rapid start technology helps extend lamp life while delivering reliable and efficient performance. Built by OSRAM, a trusted leader in lighting solutions, this ballast is engineered for durability and consistent operation.

---

Key Features:

Brand: OSRAM

Model: QTP4X54T5HO/UNV-PSN-HT-W

Lamp Type: T5 High Output

Lamp Capacity: Supports 4 × 54W lamps

 Voltage: 120–277V Universal Input

Start Method: Programmed Rapid Start for longer lamp life

Frequency: 50/60 Hz

High Efficiency / High Power Factor

Multiple Lamp Wiring Options

Ideal for commercial fixtures, high-bay, and linear lighting systems

---

Applications:

• Commercial office lighting

• Warehouses & industrial buildings

• Retail lighting fixtures

• Educational facilities

• Fluorescent high-output lighting systems

---

Specifications:

• Input Voltage: 120-277V

• Current: 2.05A @120V / 0.90A @277V

• Lamp Type: T5HO

• Lamp Quantity: Up to 4 Lamps

• Ballast Type: Electronic Programmed Rapid Start

• Series: Quicktronic Professional
