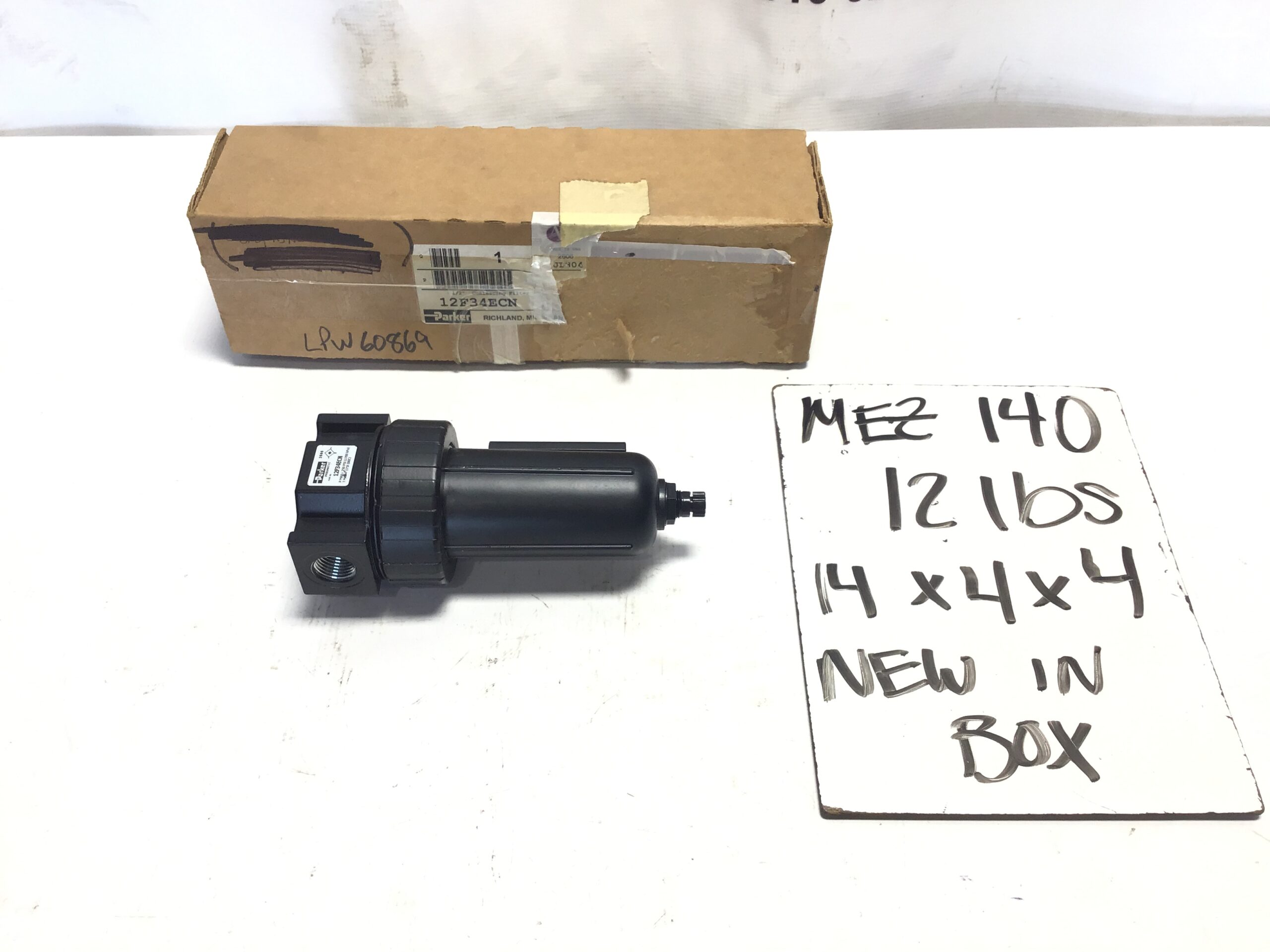

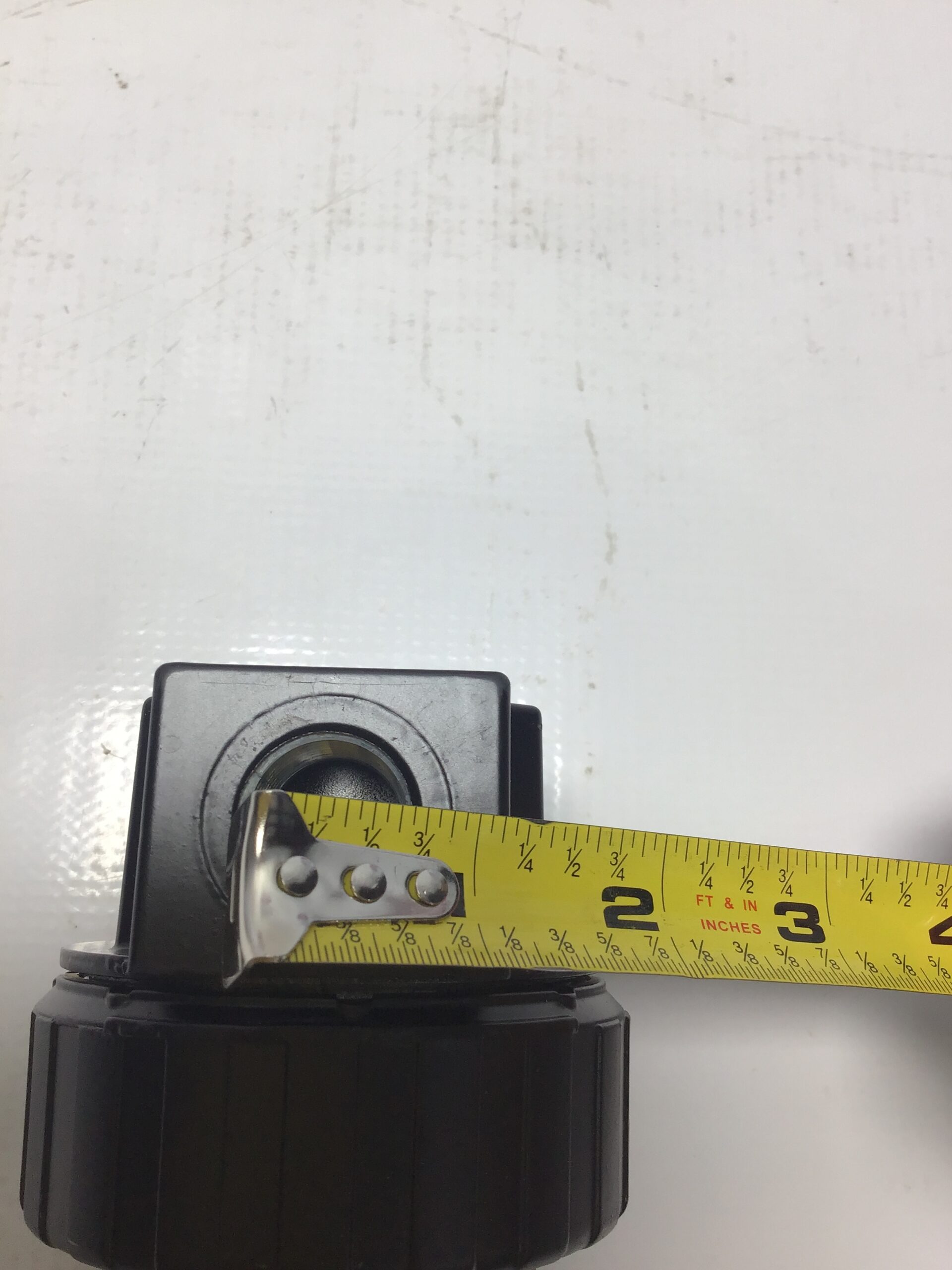

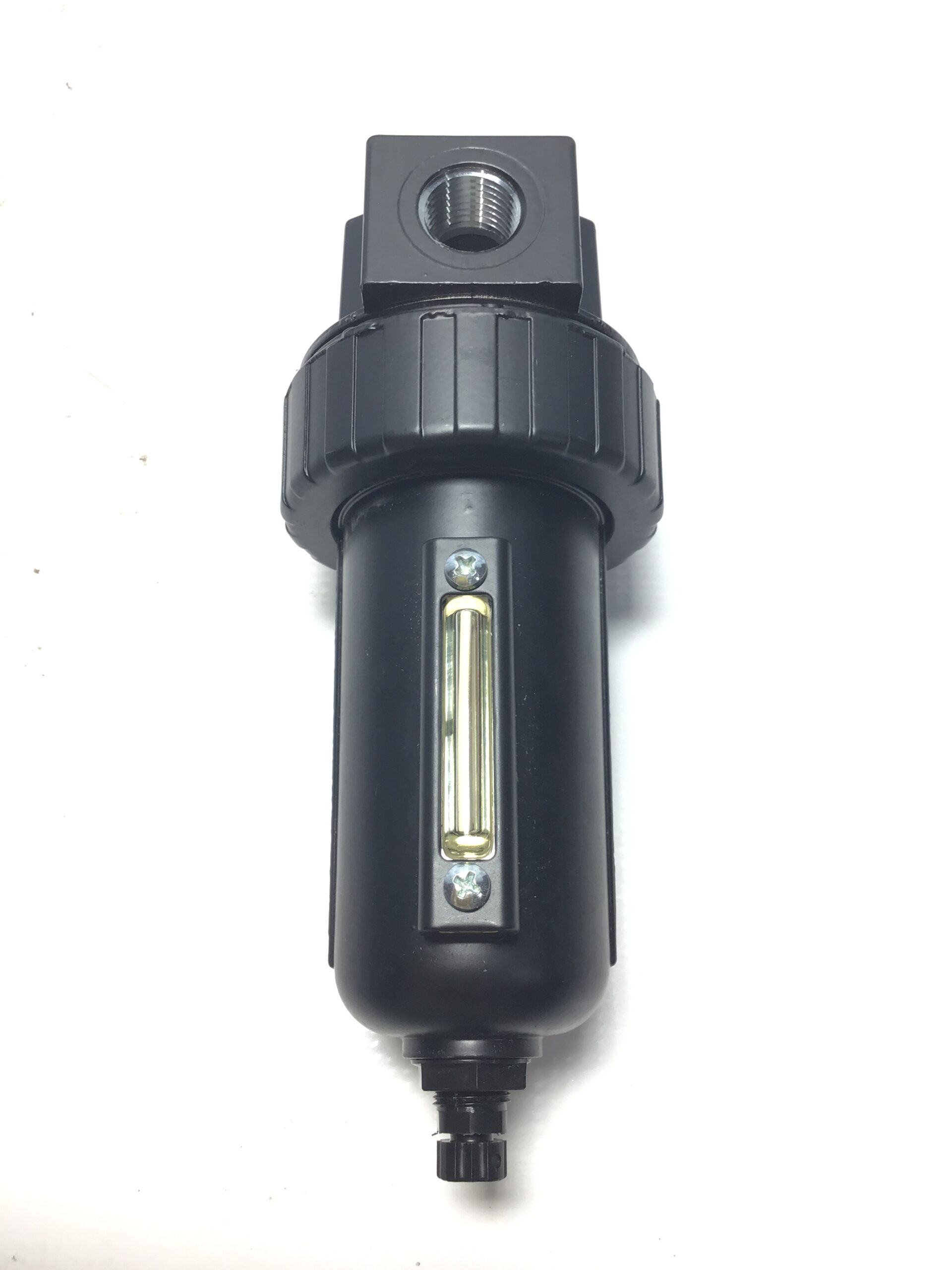

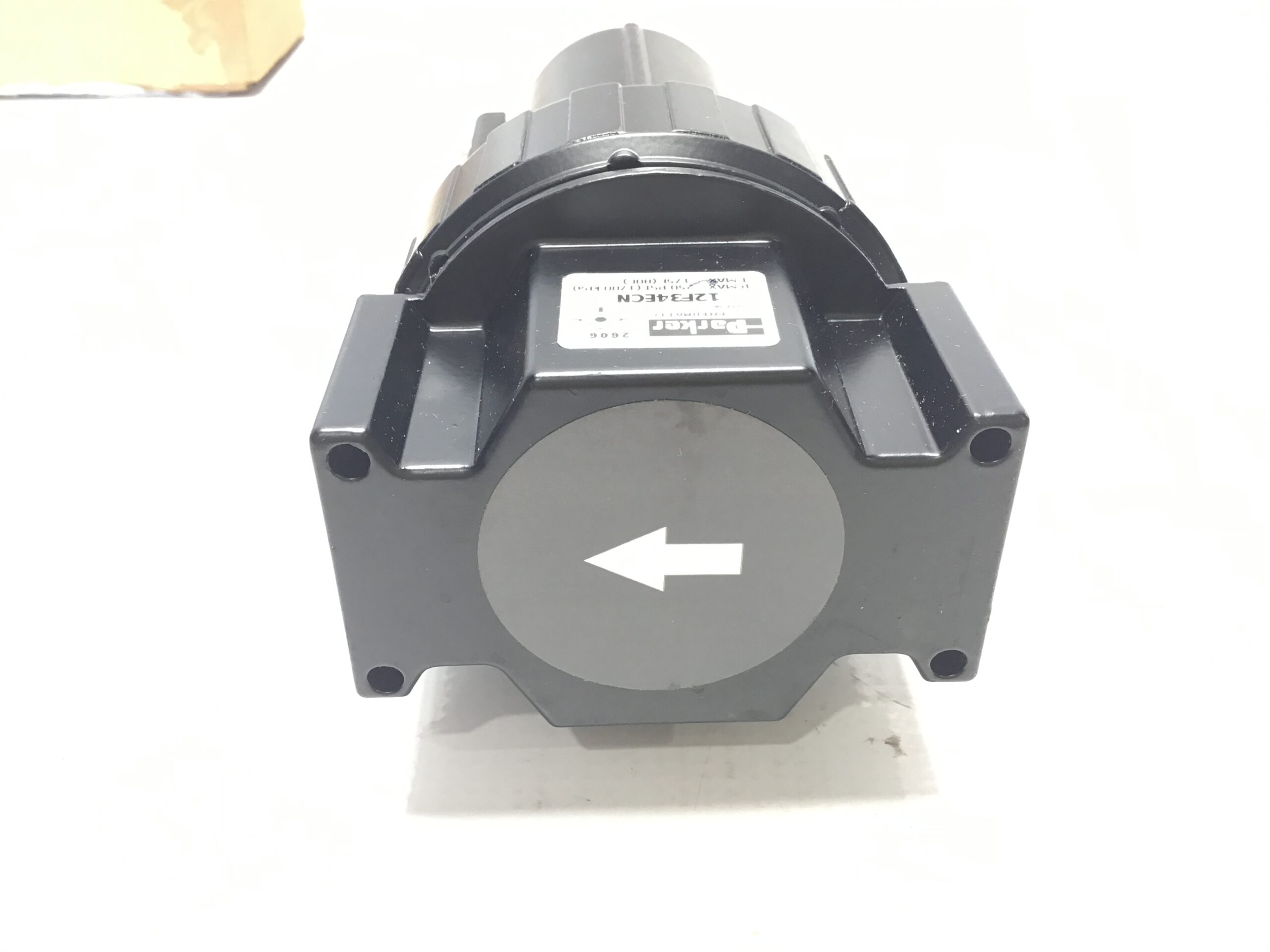

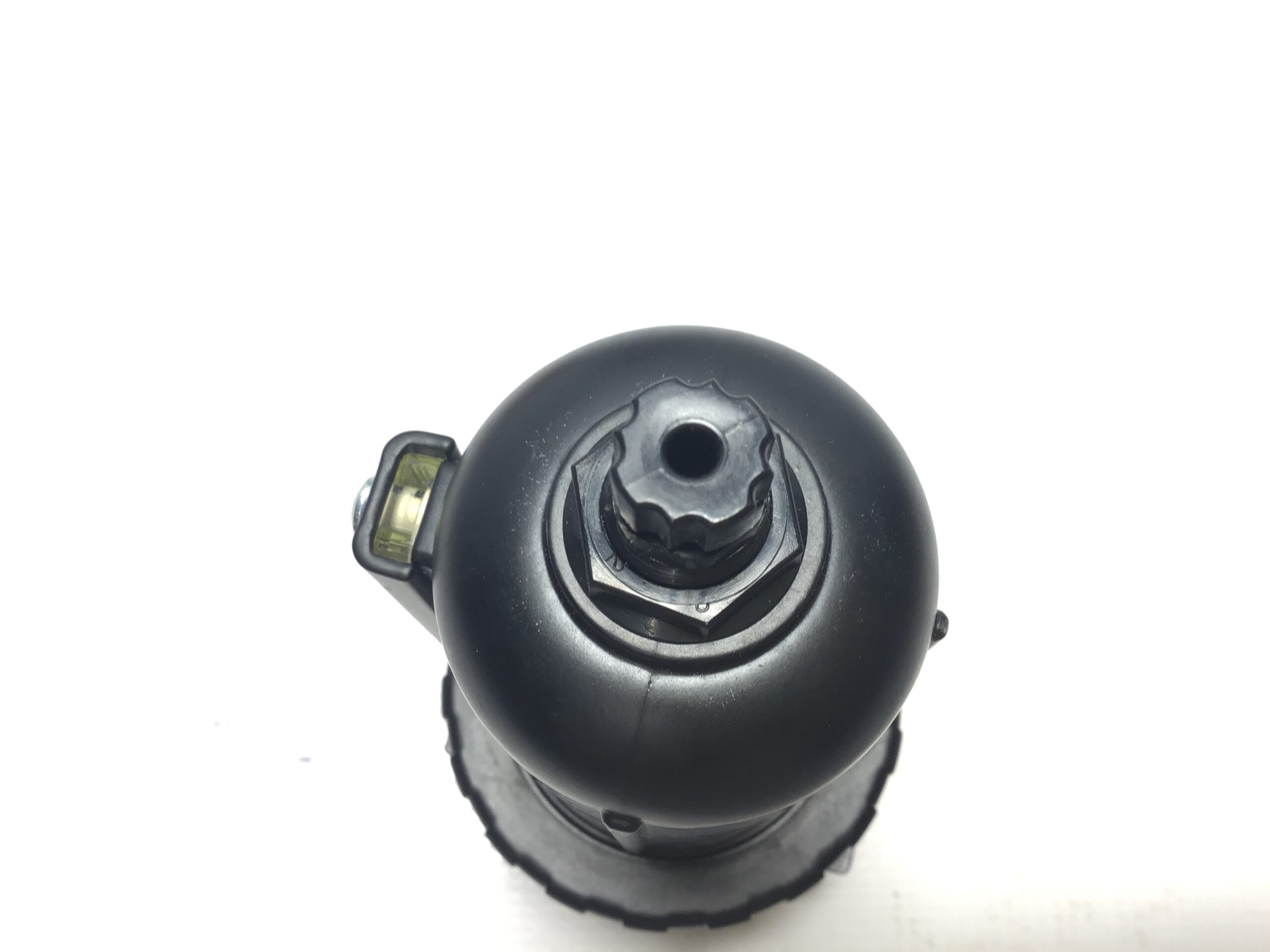

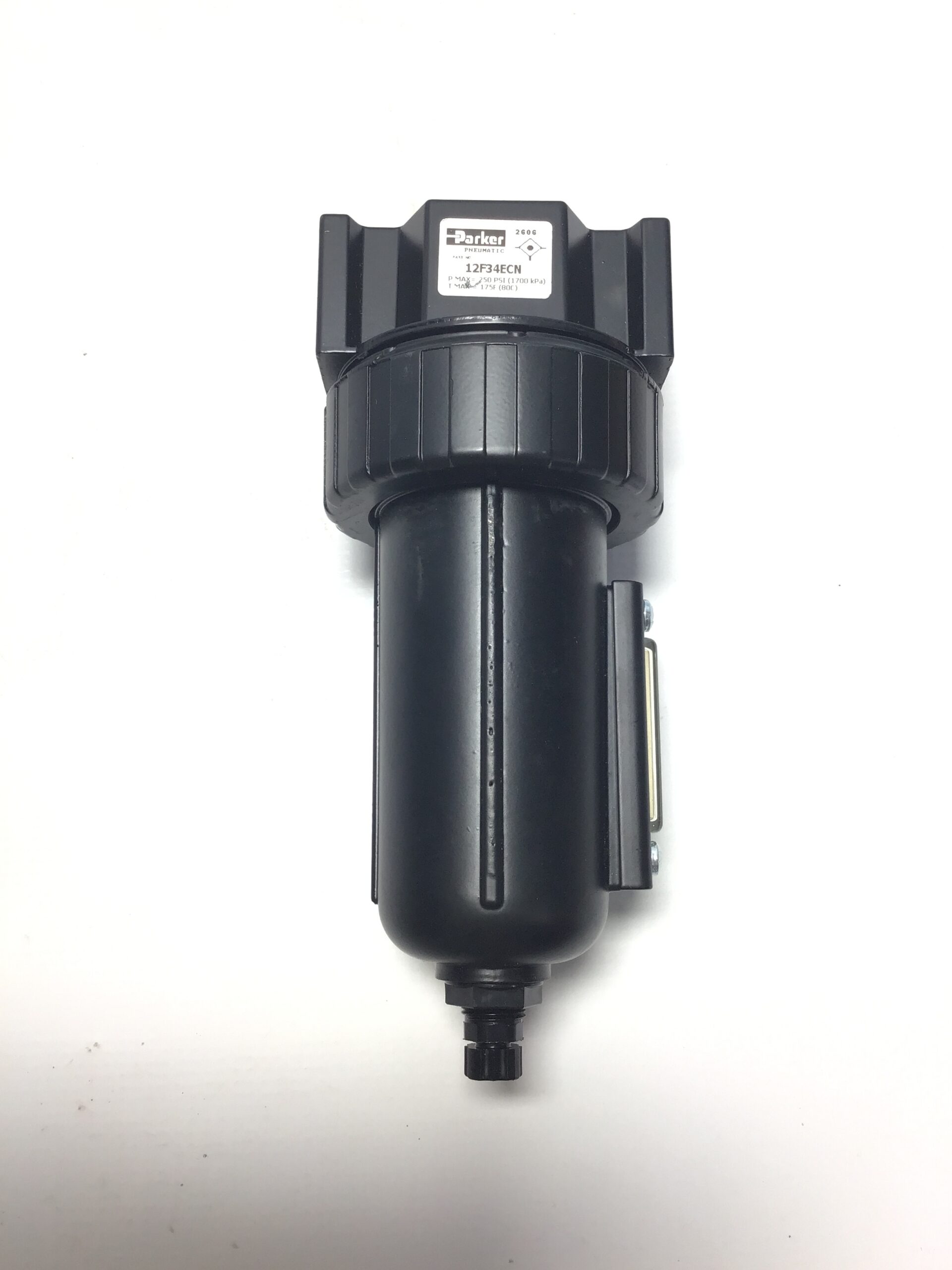

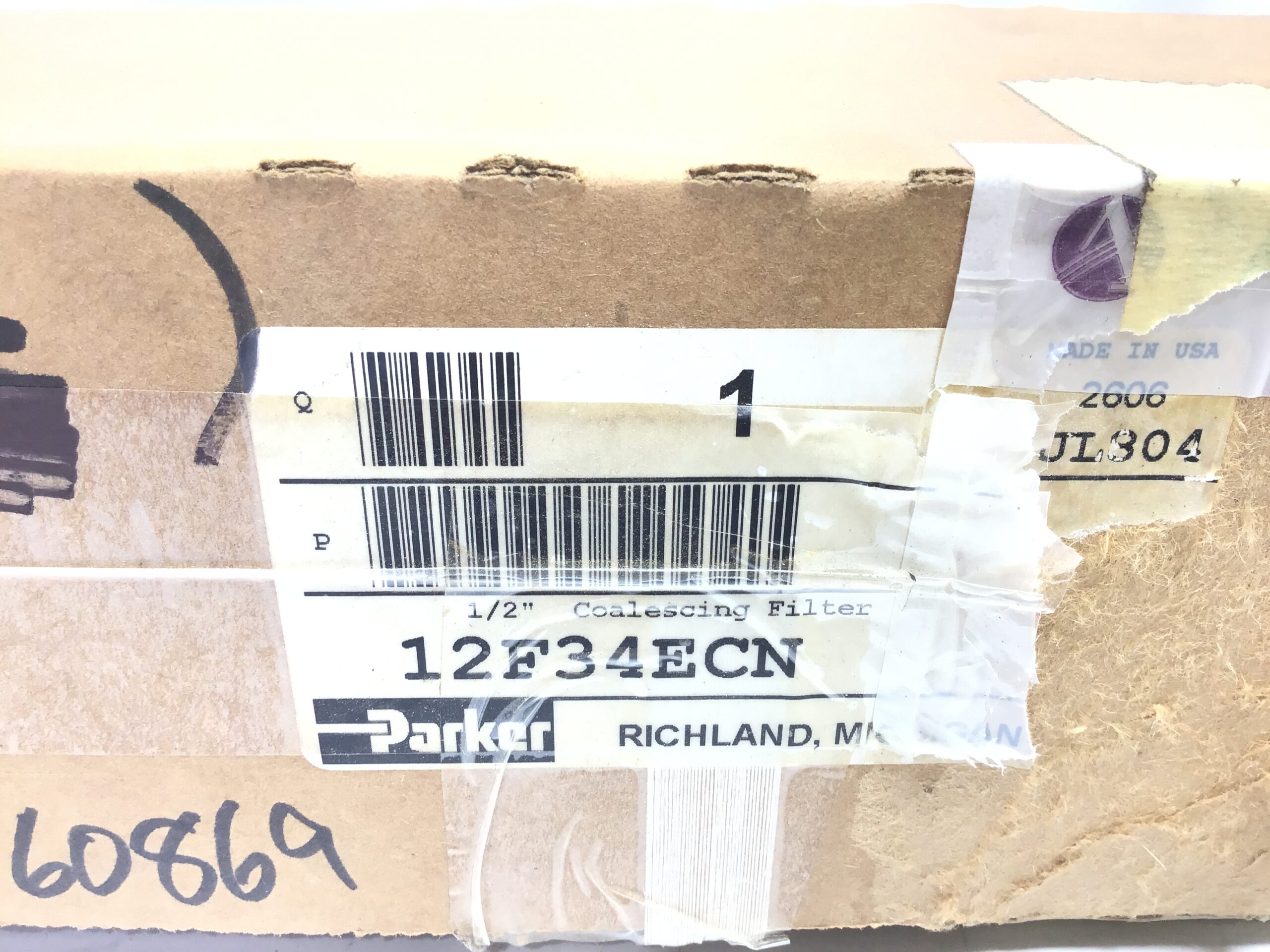

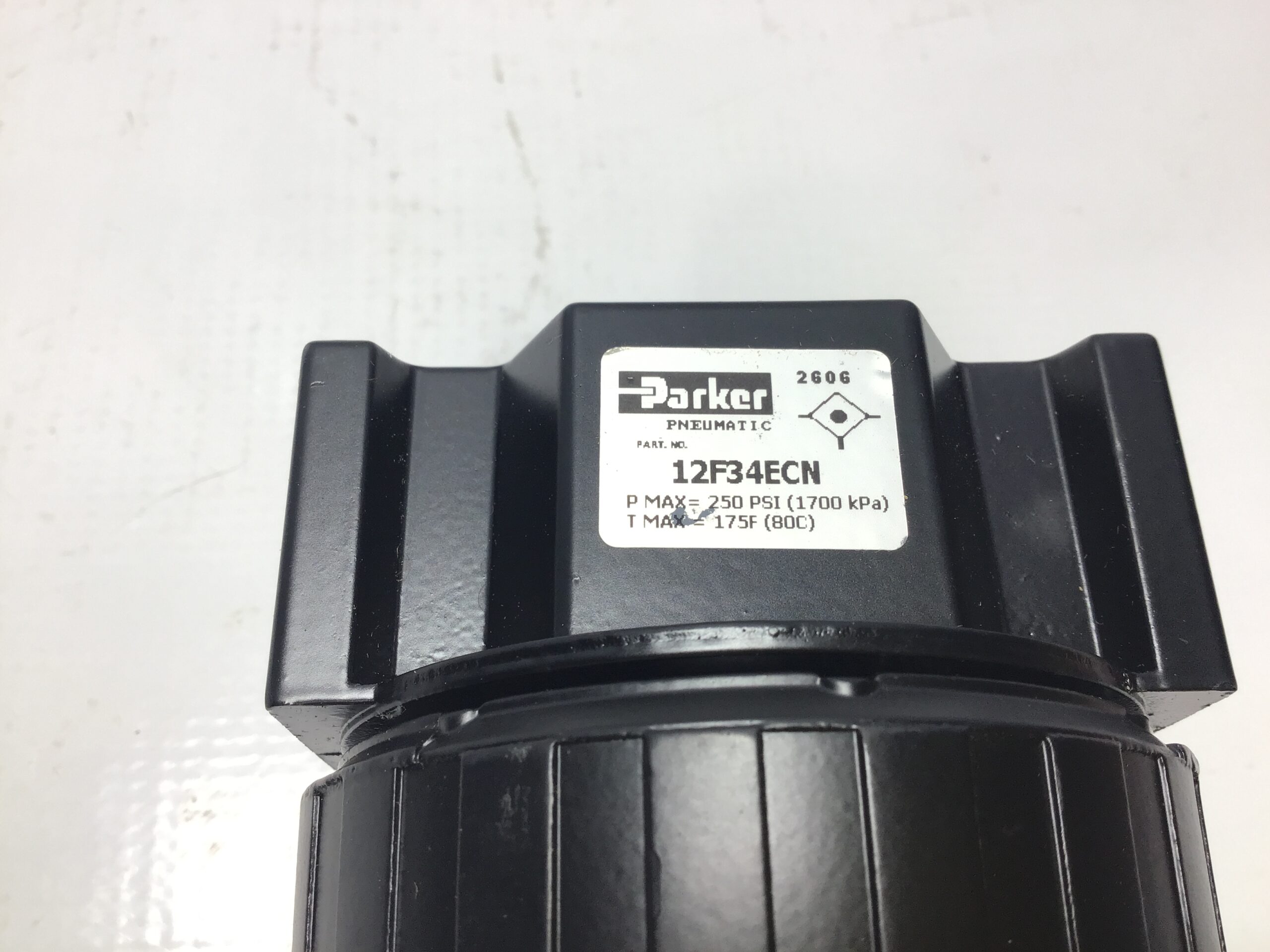

POffered is a Parker Pneumatic Prep-Air II 12F Series 12F34ECN Coalescing Filter, designed for compressed-air preparation and removal of liquid aerosols, oil mist, water, and sub-micron particulate contamination. This model features a 1/2″ NPT connection, metal bowl with sight gauge, twist drain, and Grade 6 / 0.01 µm filtration element. Parker’s 12F series is designed to provide clean, oil-free compressed air for demanding pneumatic applications, with liquids collected at the bottom of the filter rather than being carried back into the airstream. The 12F34ECN configuration is rated for up to 250 PSI with a metal bowl, with a published flow capacity of approximately 75 SCFM for the Grade 6 element. The photos show the actual item, packaging, labels, markings, ports, drain, and construction, so please review all pictures carefully and verify dimensions and specifications for your particular installation before purchasing.
Specifications
- Brand: Parker Pneumatic
- Series: Prep-Air II / 12F Series
- Part Number: 12F34ECN
- Filter Type: Coalescing Filter
- Port Size: 1/2″
- Port Type: NPT
- Bowl: Metal Bowl with Sight Gauge
- Drain: Twist Drain
- Filter Grade: Grade 6
- Filtration Rating: 0.01 µm
Applications
- Compressed air filtration
- Pneumatic machinery
- Industrial automation
- Manufacturing equipment
- Pneumatic valves and cylinders
- Air tools
- Instrumentation and controls
- Spray painting systems
- Printing equipment
- Packaging machinery
- Air preparation systems
- Protection of downstream pneumatic components
