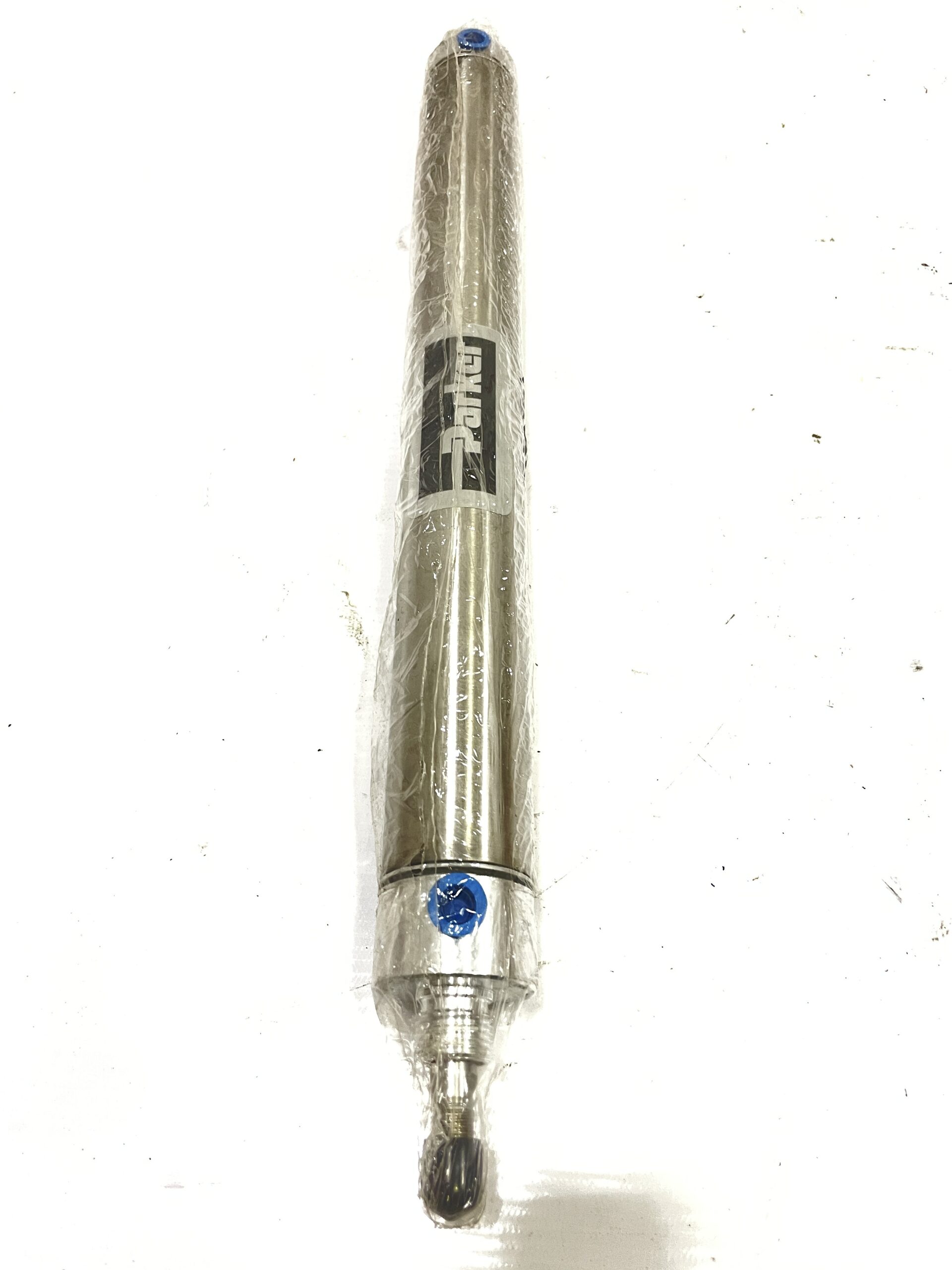

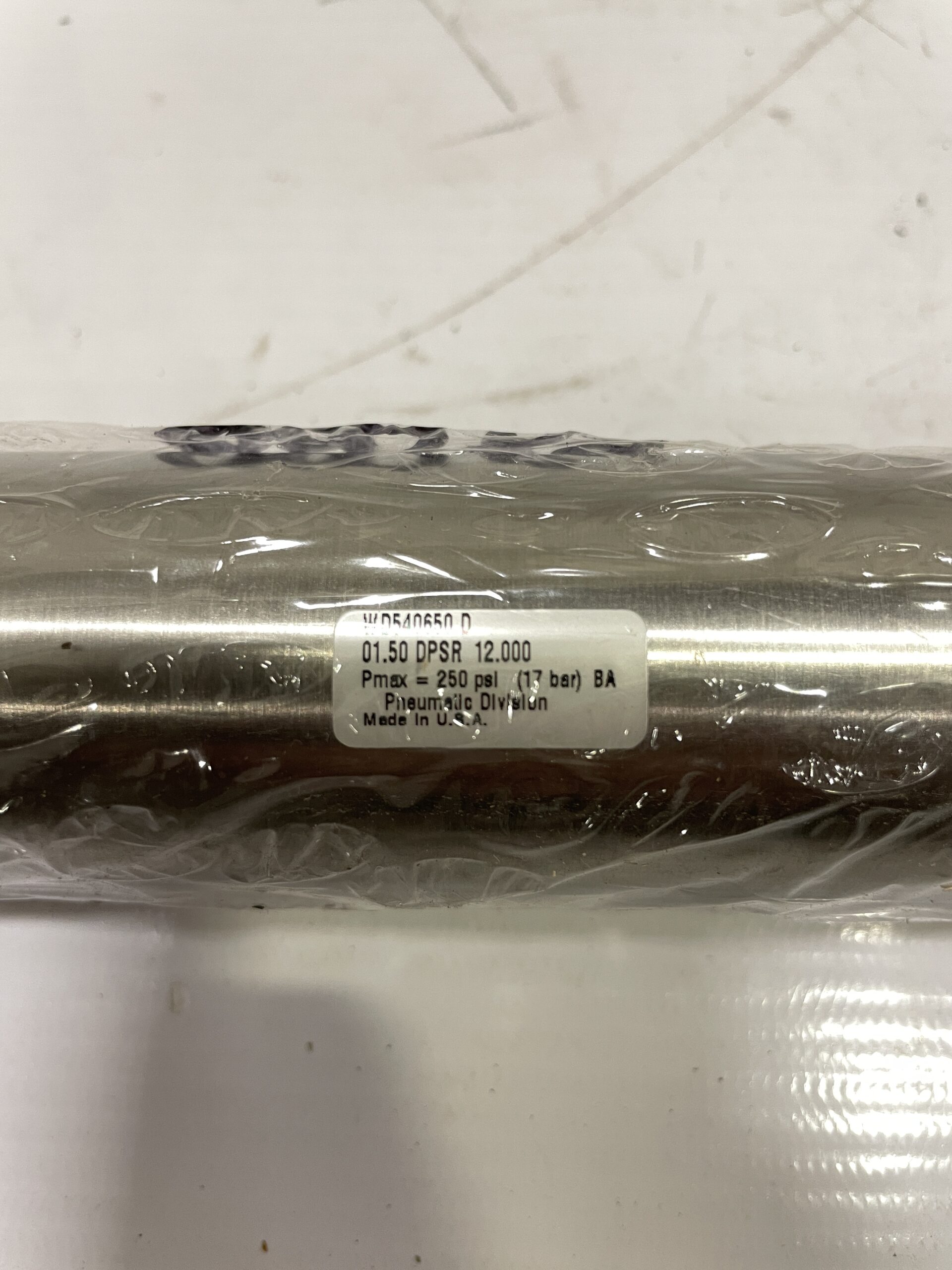

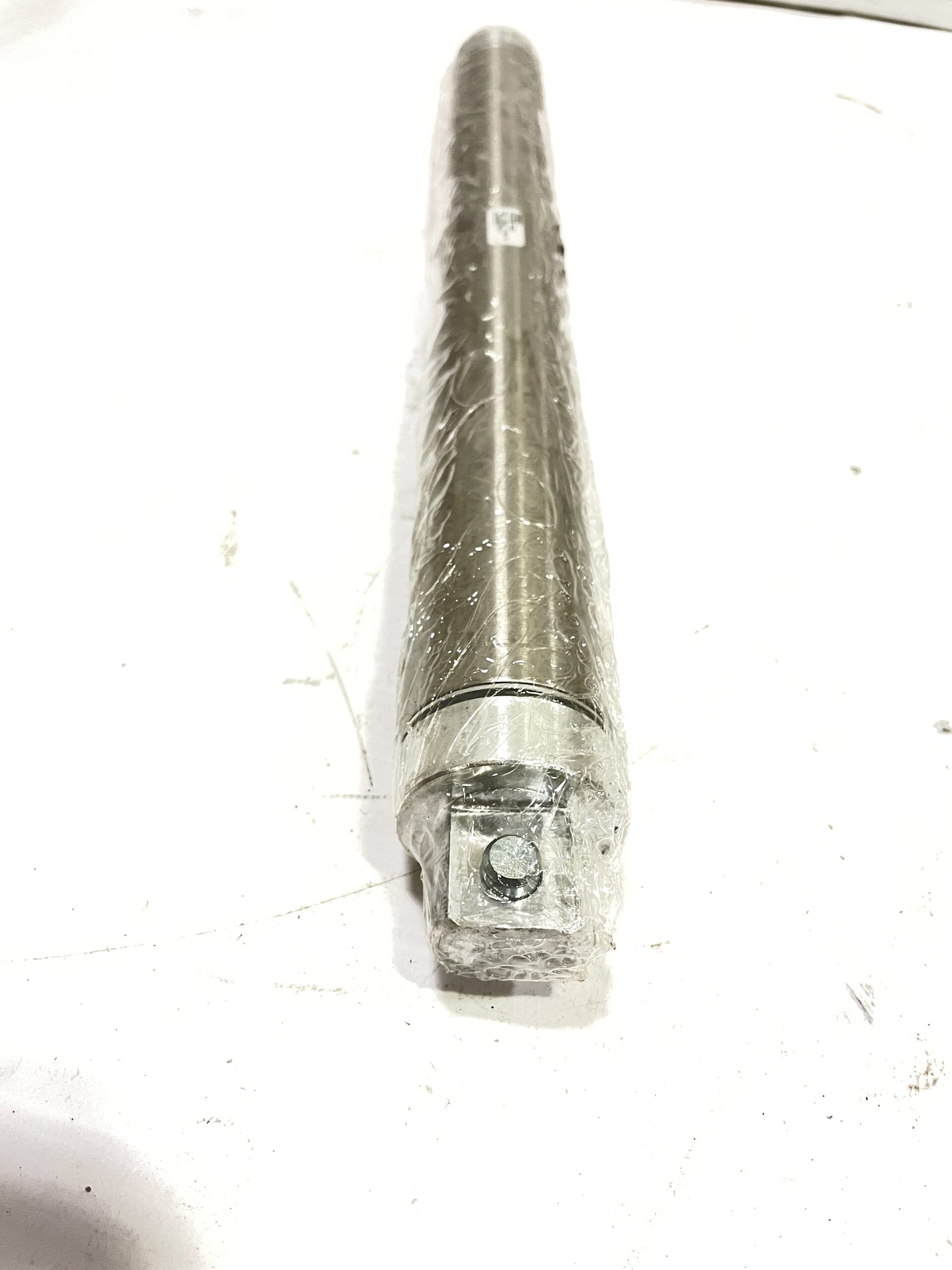

Parker WD540650D Pneumatic Air Cylinder 1.50″ Bore x 12″ Stroke 250PSI

he Parker WD540650D is a double-acting pneumatic air cylinder designed to provide controlled linear motion in industrial automation systems. It has a 1.50-inch bore and 12-inch stroke, allowing it to generate moderate force for applications such as pushing, lifting, clamping, or positioning components in machinery. Rated for operation up to approximately 250 PSI, it is built for use with standard compressed air systems and delivers smooth, repeatable motion through alternating air pressure applied to each side of the piston.

Constructed for industrial durability, cylinders in this class typically feature a hard-anodized aluminum body, steel piston rod, and replaceable seals, enabling long service life in continuous-duty environments. The WD-series style cylinders are commonly used in packaging equipment, material handling systems, assembly automation, and general-purpose factory machinery where reliable linear actuation is required.

In simple terms, the Parker WD540650D is a mid-size pneumatic actuator that converts compressed air into straight-line mechanical movement with consistent force and repeatability for industrial automation tasks.
