Samuel A10129 500-Gallon Vertical Compressed Air Receiver Tank (165 PSI, 2019)

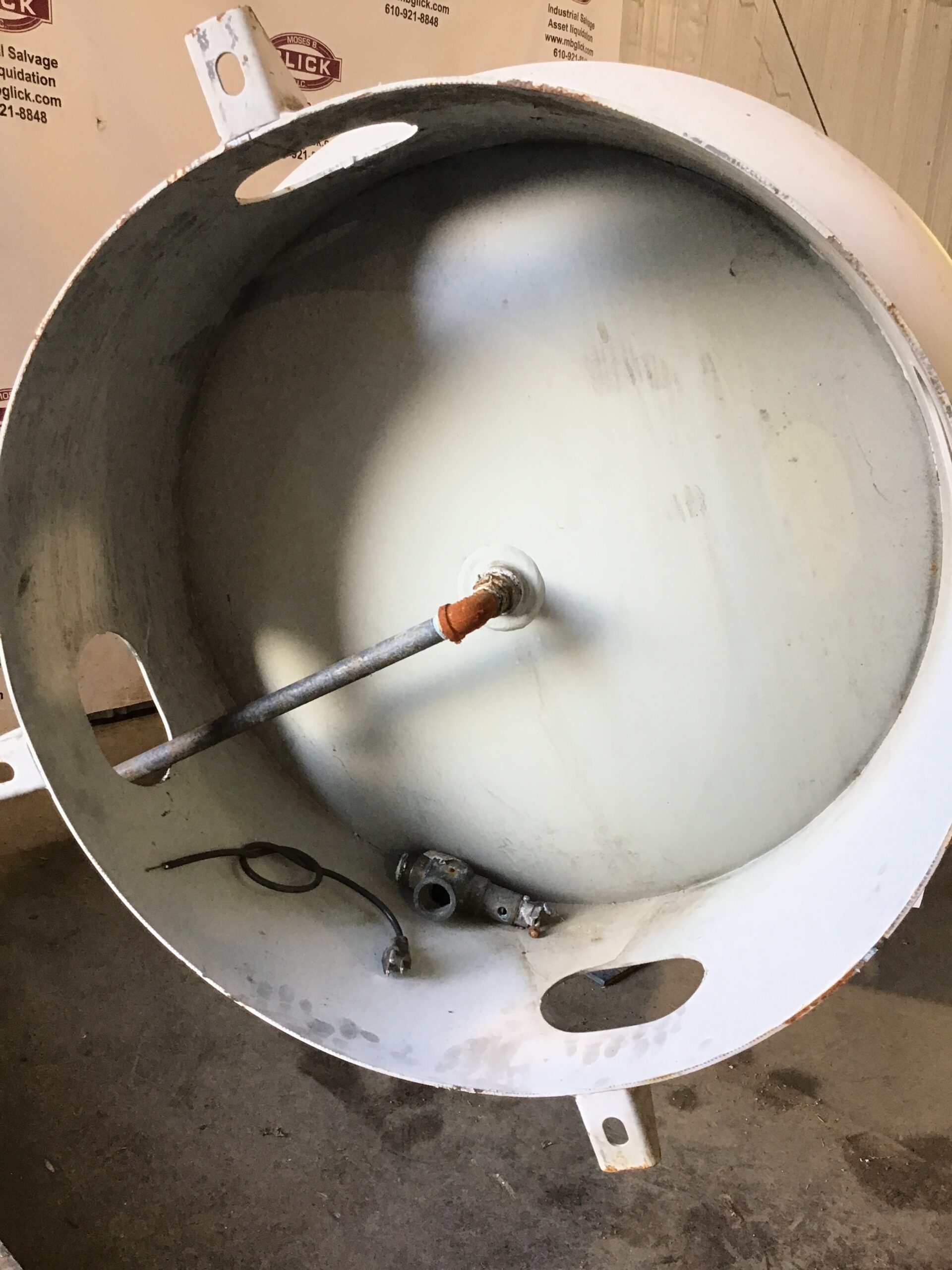

Optimize your plant’s pneumatic efficiency with this heavy-duty Samuel Pressure Vessel Group (Steel Fab) A10129 500-Gallon Vertical Compressed Air Receiver Tank. Manufactured in 2019 in Lebanon, VA, USA, this premium industrial pressure vessel acts as a high-capacity buffer zone between your air compressors and end-use tools. It is engineered to successfully eliminate system pressure fluctuations, reduce expensive compressor short-cycling, and cool the air to drop out destructive moisture before it enters downstream lines. Built to the highest industrial safety standards, this vertical tank features a heavy-duty factory base ring/skirt with four 11/16″ x 1-1/16″ anchoring slots for secure floor placement. It is fully ASME Section VIII Division 1 Certified (“U” Stamped) and National Board Registered, ensuring maximum structural integrity and regulatory compliance for any high-output commercial facility.

Specifications:

• Brand: Samuel Pressure Vessel Group
• Model/Part Number: A10129
• Year of Manufacture: 2019
• Capacity: 500 Gallons
•  MAWP: 165 PSI @ 400°F
• MDMT: -20°F @ 165 PSI

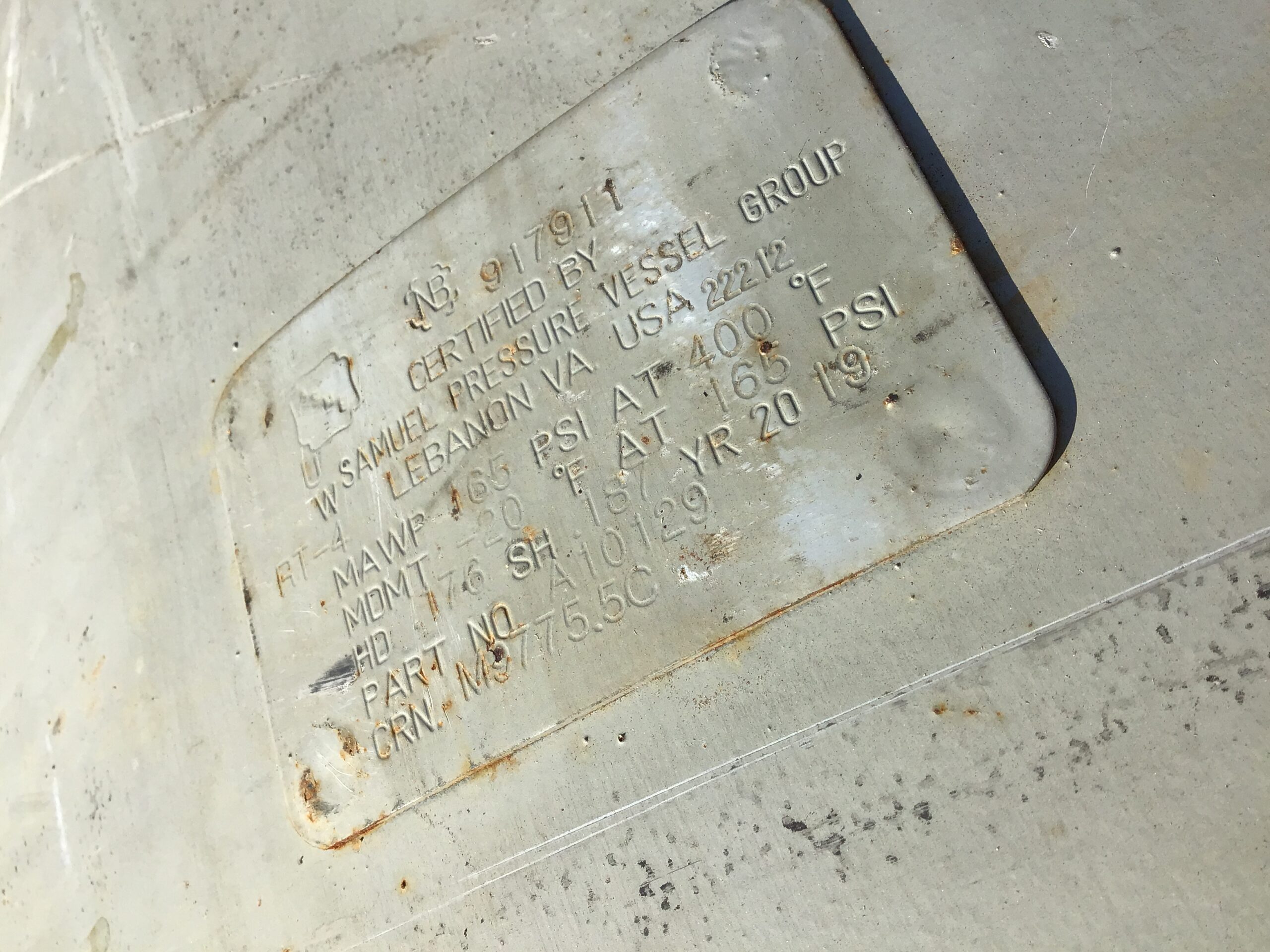

• National Board Number: 917911
• Shell Thickness (SH): 0.187 in
• Head Thickness (HD): 0.176 in
• Radiography Code: RT-4
• CRN: M3775.5C

Applications:

• Industrial compressed air systems
• Air compressor storage
• Pneumatic equipment systems
• Manufacturing facilities
• Automotive service shops
• Factory air distribution systems
• Commercial maintenance operations
• Industrial automation setups
• Workshop compressor systems
• Backup compressed air storage
