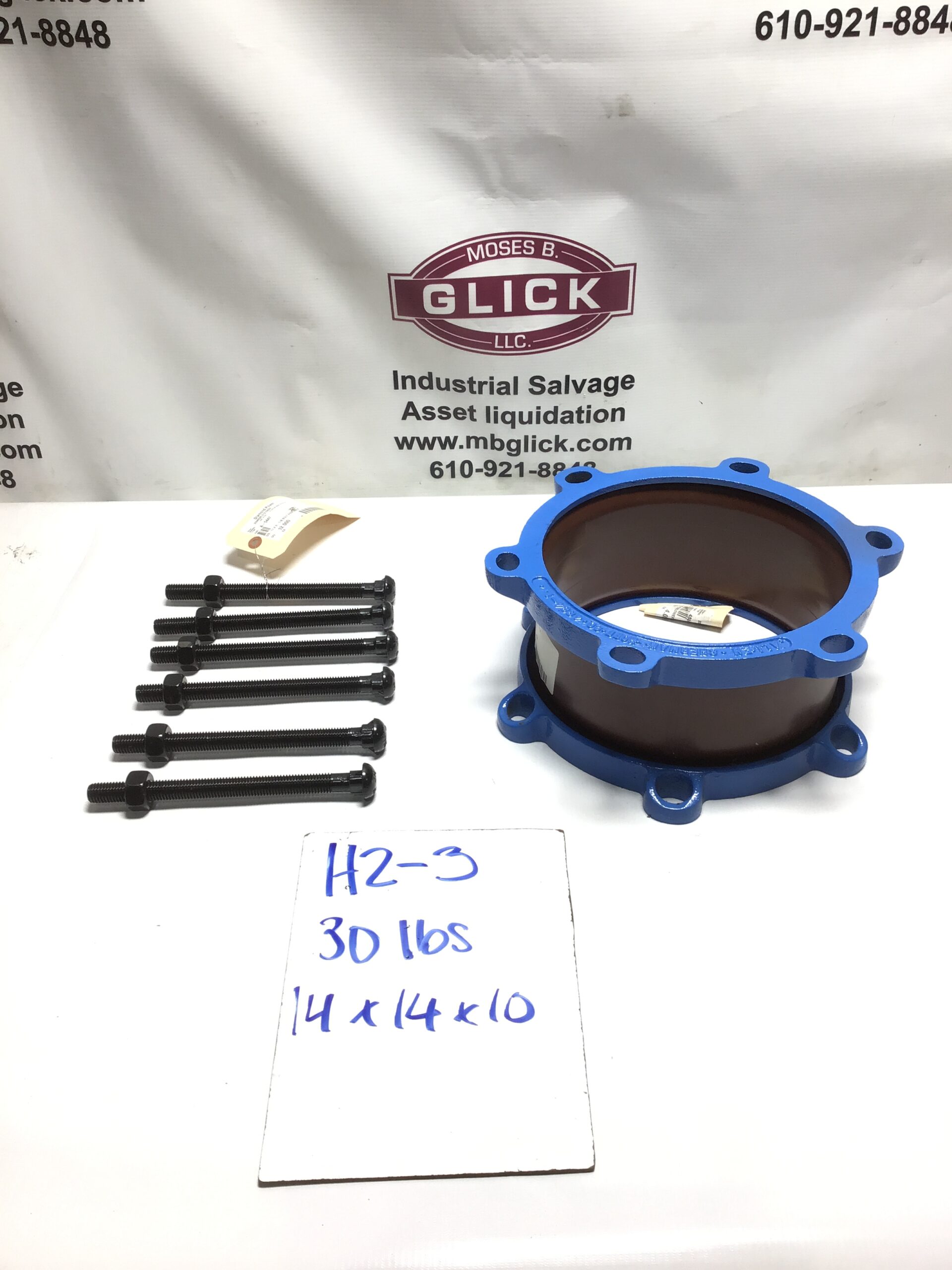

Diamond Power 4884-1/A-5447 5/8-11 x 8 – 1/4″ Coupling W/ Bolt Assembly

The Diamond Power 4884-1/A-5447 5/8-11 x 8 – 1/4″ Coupling with Bolt Assembly is a specific industrial coupling and bolt assembly used in various mechanical applications, particularly in the power and utility industries.

Here’s a breakdown of the components and their specifications:

Components & Specifications:

1. Part Number:

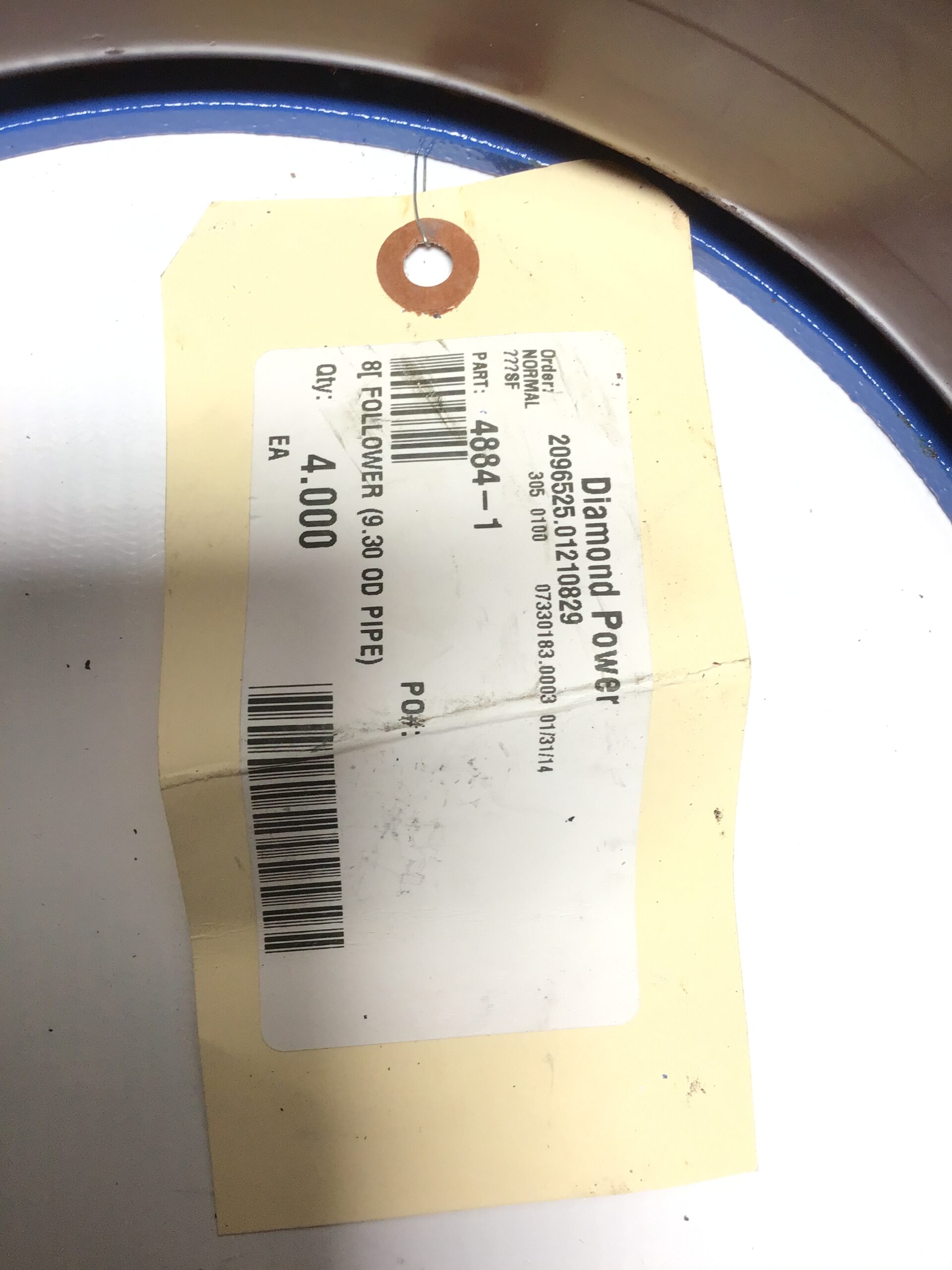

   • 4884-1/A-5447: This specific part number refers to the exact design and specifications of the coupling and bolt assembly.

2. Coupling Size:

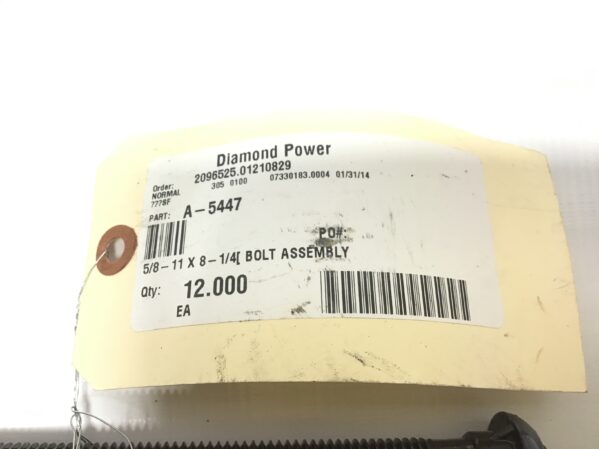

   • 5/8″-11 x 8 – 1/4″: This notation refers to the dimensions and threading of the coupling.
     • 5/8″-11: This means the coupling has a 5/8-inch diameter with 11 threads per inch (which is a common thread size used in many mechanical systems).
     • 8 – 1/4″: This indicates the length of the coupling or bolt in the assembly, measuring 8.25 inches.

3. Coupling and Bolt Assembly:

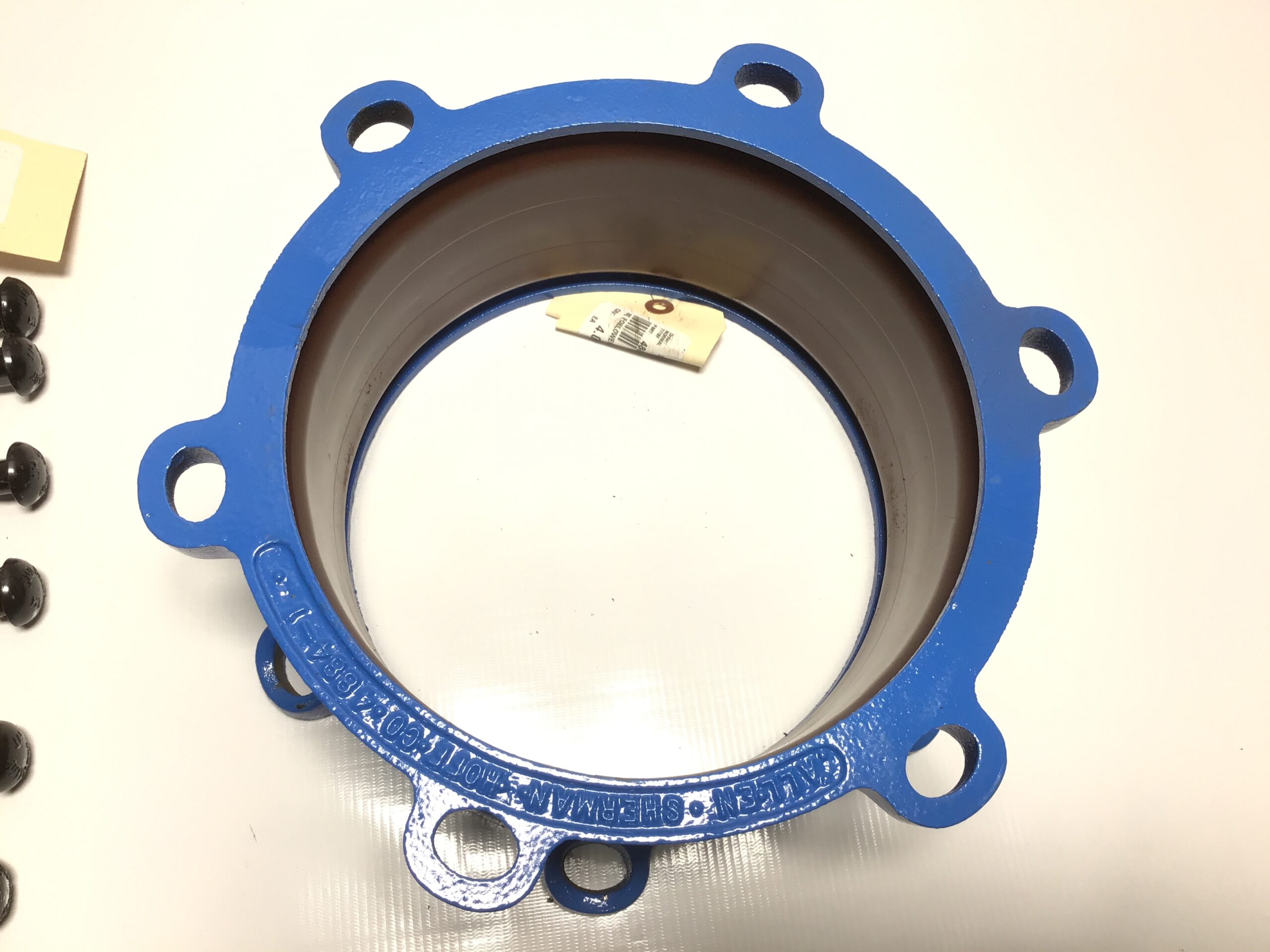

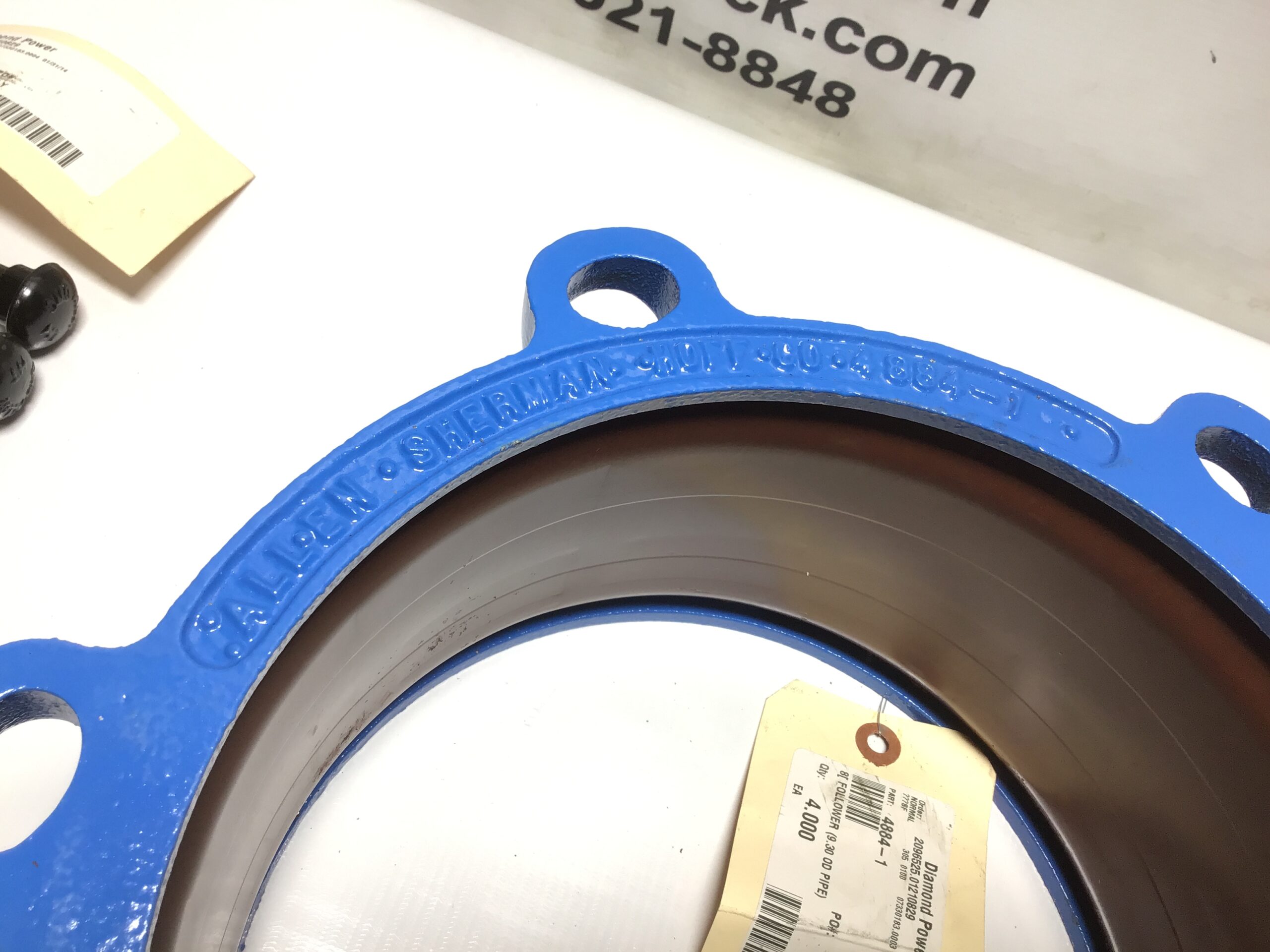

   • Coupling: A coupling is a mechanical component used to connect two shafts or parts together for transmitting power, ensuring that motion or force is transferred between components. In this case, it could be connecting various parts of machinery or equipment.

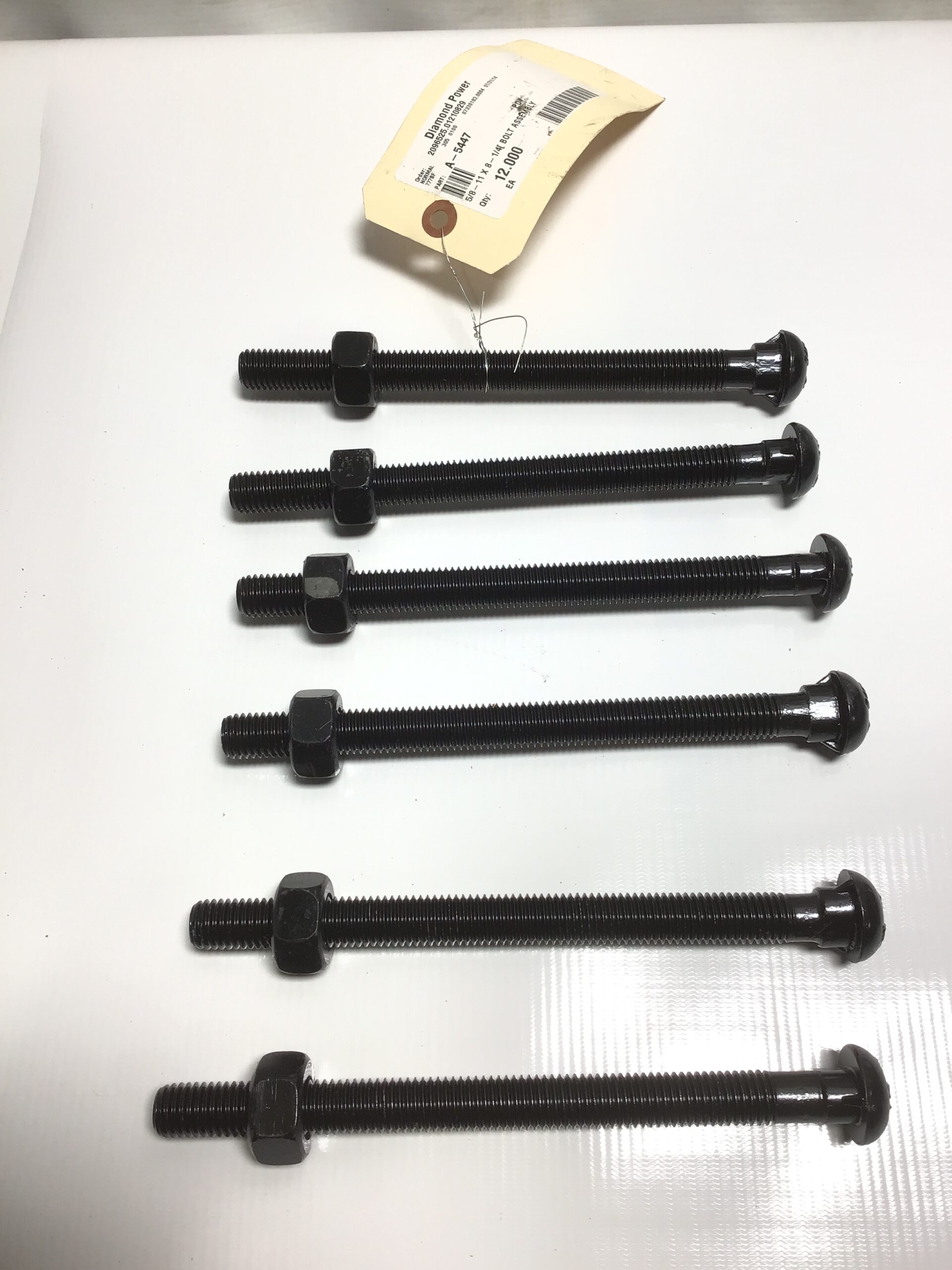

   • Bolt: This assembly typically includes a bolt that secures the coupling. The bolt might be designed to handle significant mechanical stresses.

4. Application:

   • This type of coupling and bolt assembly is commonly used in heavy-duty machinery or systems, such as those in power generation plants, steam turbines, or mechanical systems in industrial environments.
   • It’s used to connect parts where you need both durability and secure, reliable fastening.

5. Material:

   • While the exact material is not specified, in such assemblies, high-strength steel or alloy materials are typically used for the coupling and bolt to withstand the mechanical stress and potential heat or corrosion.

6. Use Case:

   • Often found in equipment or systems that require precise mechanical linkages. For example, power plants, turbines, pumps, or other heavy-duty machinery where parts need to be connected firmly and securely for proper functioning.
