MAY OR MAY NOT INCLUDE THE ORIGINAL PACKAGING.

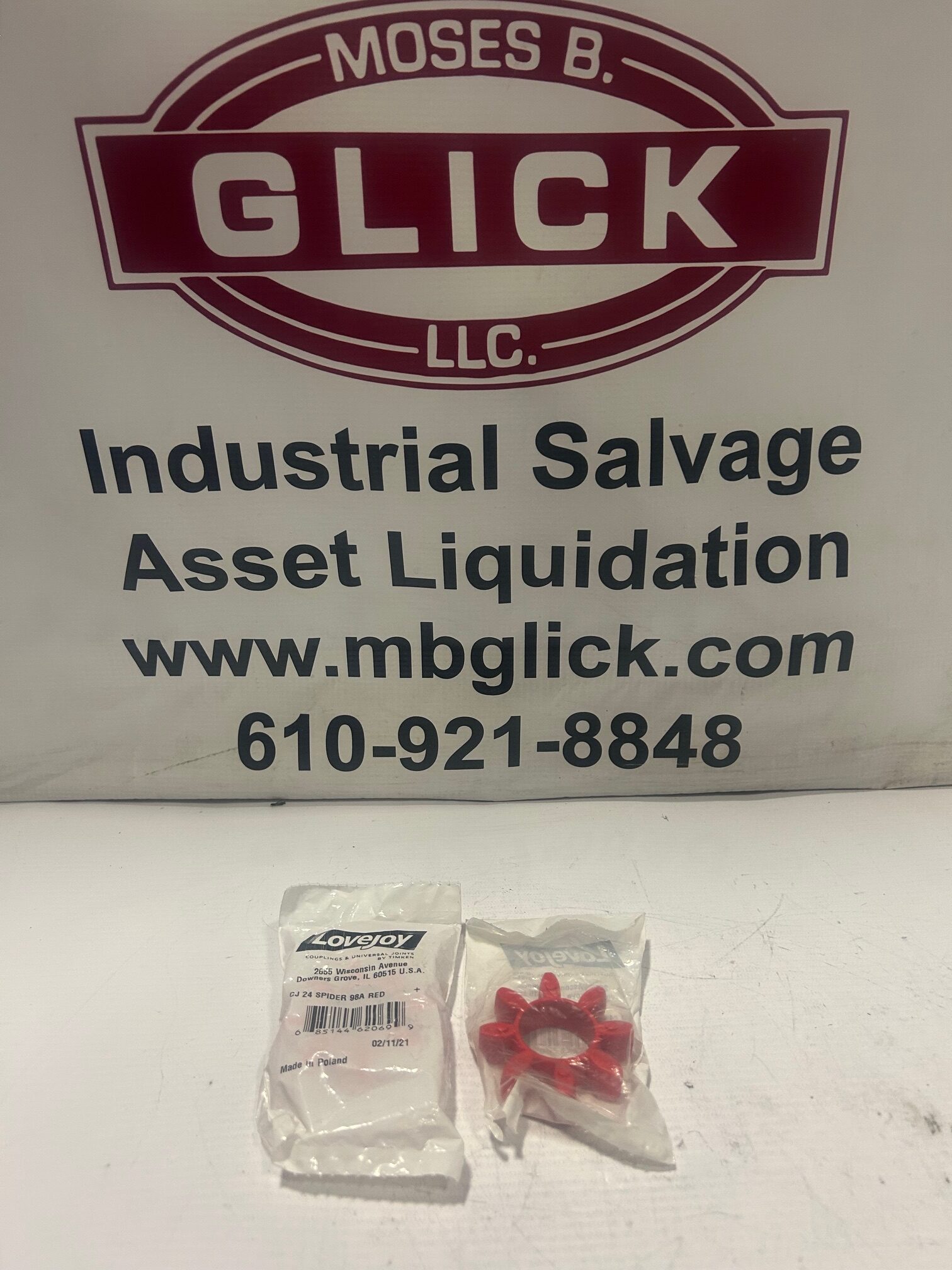

The “Lovejoy CJ 24 SPIDER 92A” is an elastomeric coupling component designed for mechanical power transmission. It is part of the CJ series and is used in jaw couplings. Key details include:
- Material: Polyurethane, providing durability and resistance to oil, grease, and environmental factors.
- Shore Hardness: 92A, indicating medium hardness suitable for various torque requirements.
- Temperature Range: Operates between -40°F and 212°F, with a maximum limit of 248°F for short durations.
- Torque Capacity: Nominal torque is 310 in-lbs (35 Nm), with a maximum of 620 in-lbs (70 Nm).
- Speed: Rated for up to 10,600 RPM.
- Size: Compatible with CJ24 coupling hubs, and its dimensions include a 55 mm outer diameter and 14 mm thickness
