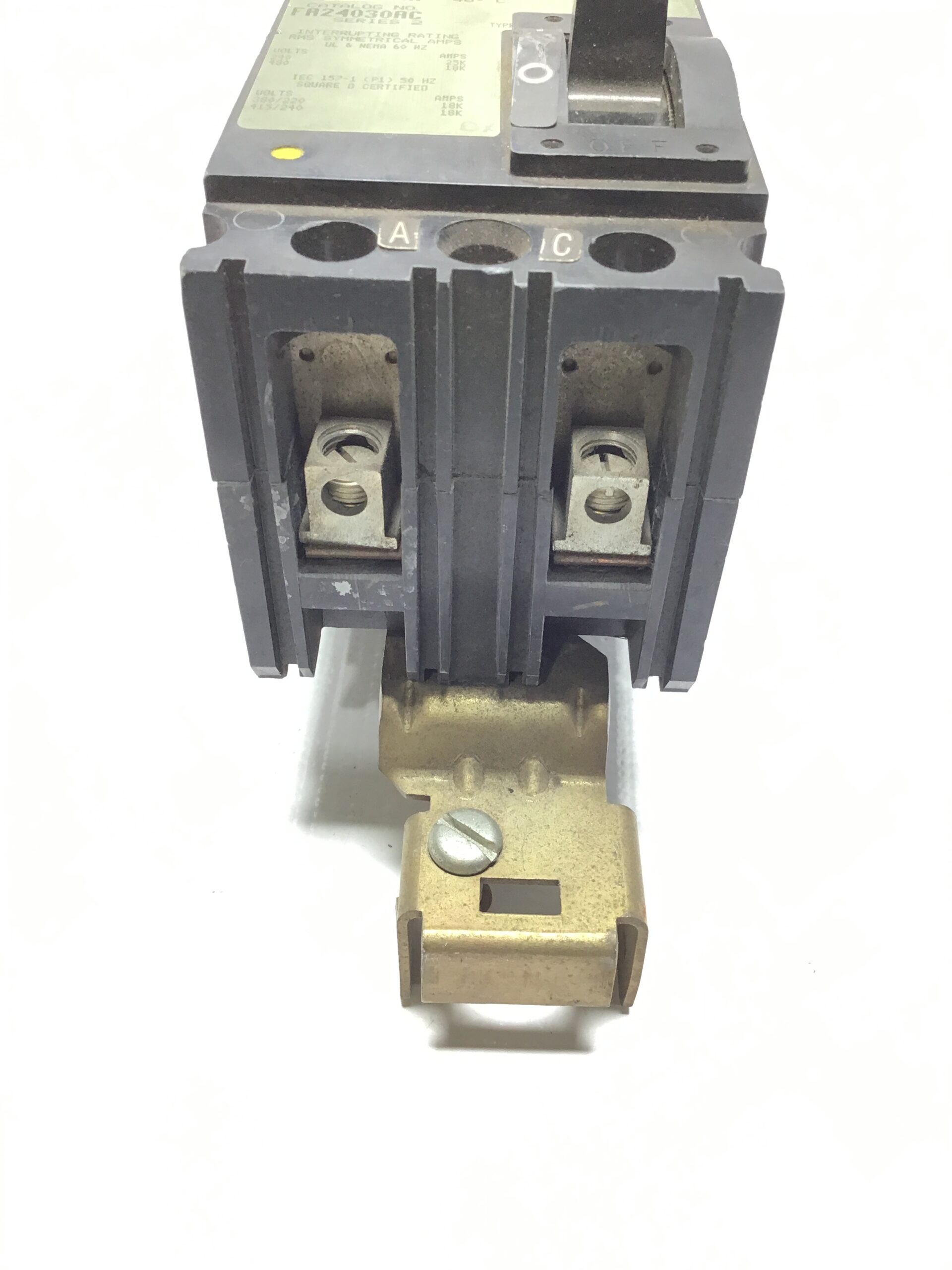

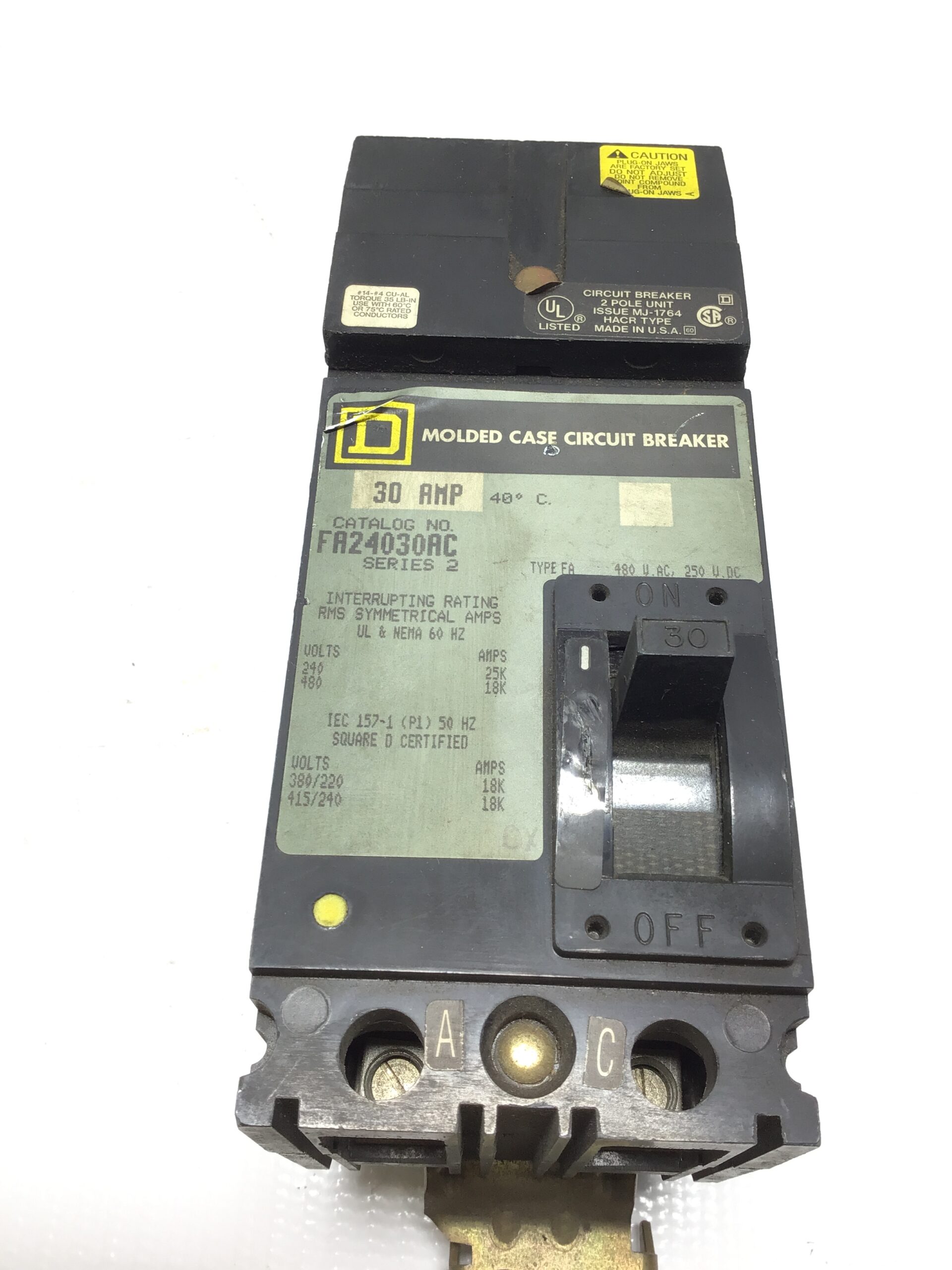

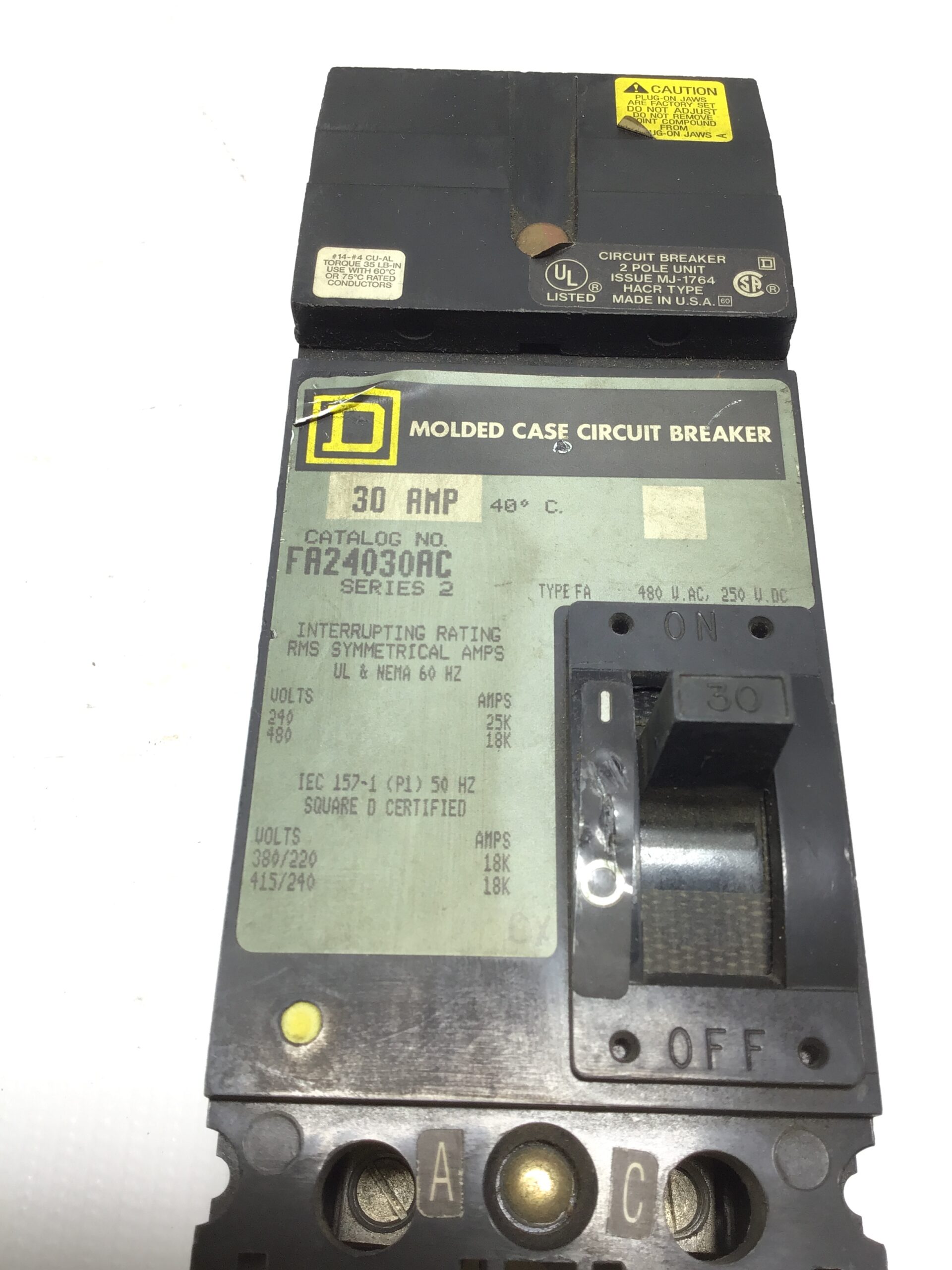

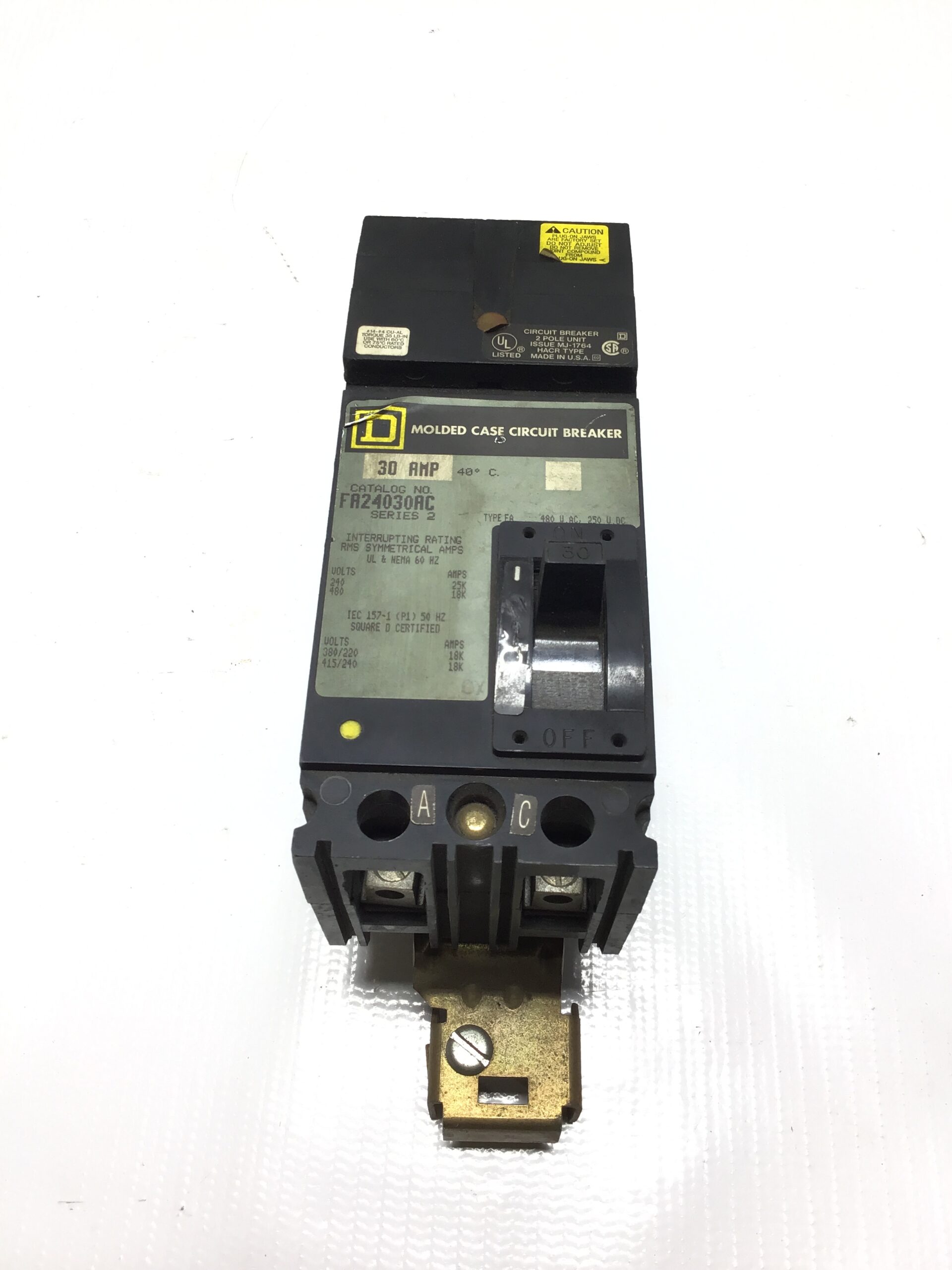

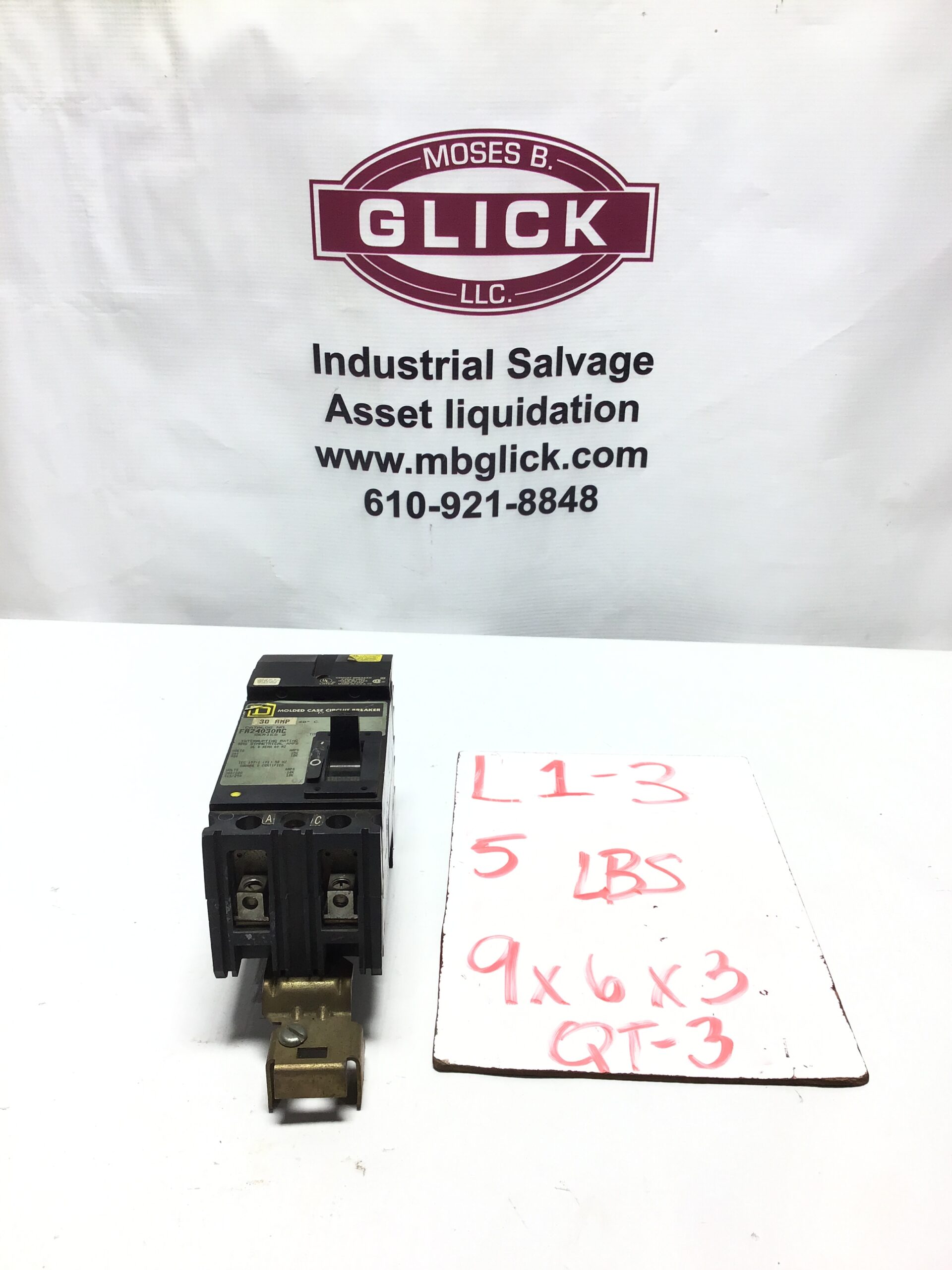

Upgrade or replace your electrical protection equipment with this Square D FA24030AC Molded Case Circuit Breaker, part of the trusted FA Series. Designed for industrial and commercial power distribution systems, this breaker provides reliable overload and short-circuit protection in demanding applications.

This model features a 30 Amp rating, 2-pole configuration, and is suitable for systems up to 480VAC, making it an ideal component for panelboards, switchgear, motor control centers, and factory environments. Built with Square D’s renowned durability, the FA24030AC ensures consistent performance and long service life.

Unit is in good used condition, fully inspected, and ready for installation.

⚙️ Key Specifications

• Brand: Square D

• Model: FA24030AC

• Series: FA

• Type: Molded Case Circuit Breaker

• Amperage: 30A

• Poles: 2-Pole

• Voltage Rating: 480VAC

• Interrupting Rating:

  • 65kA @ 240V

  • 25kA @ 480V

• Certifications: UL Listed

• Mounting: Bolt-on

⭐ Features & Benefits

• Rugged molded case construction

• High interrupting capacity

• Reliable performance in industrial environments

• Ideal for commercial electrical distribution panels

• Long-lasting, service-proven FA Series design
