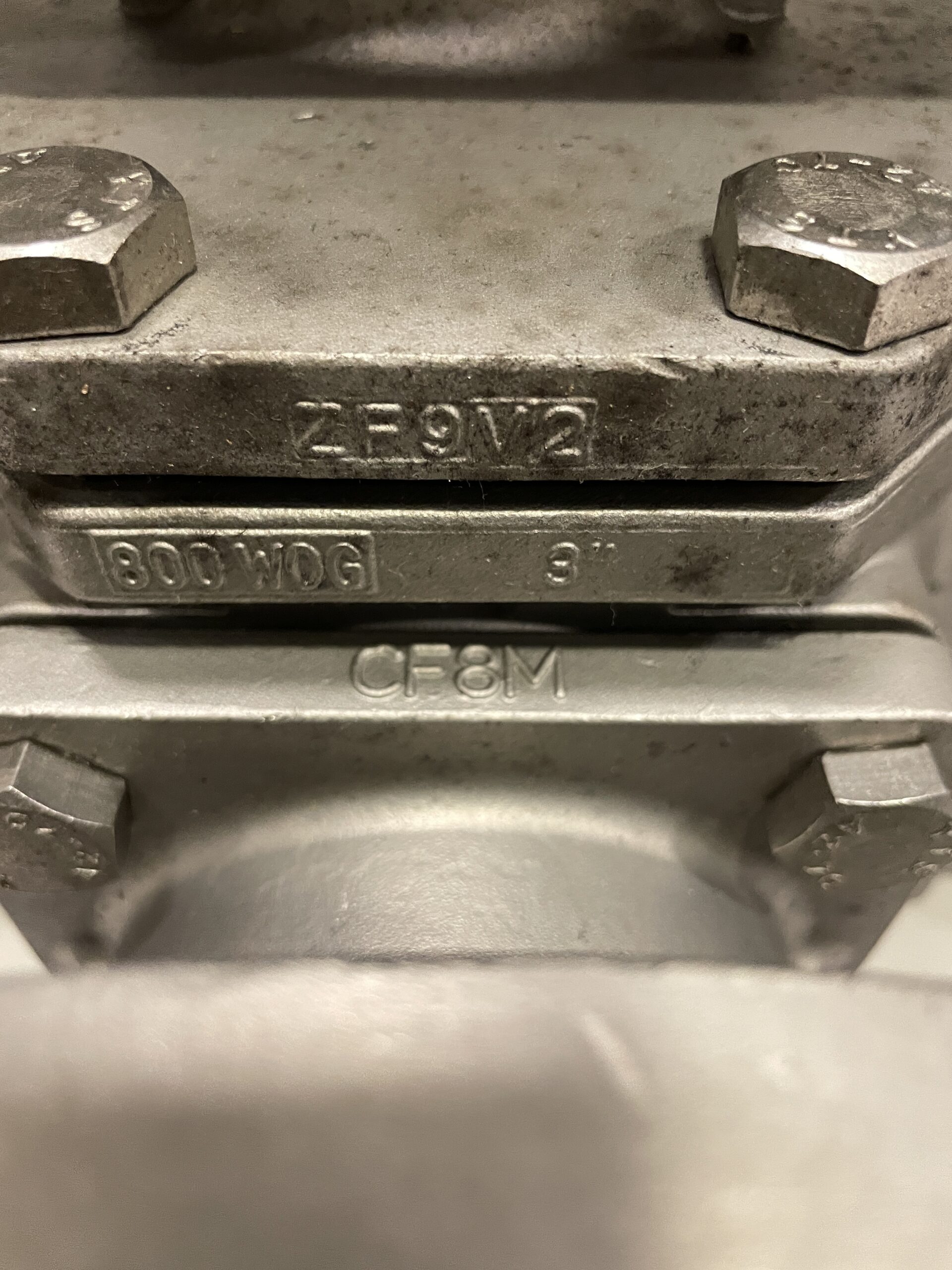

800PSI WOG

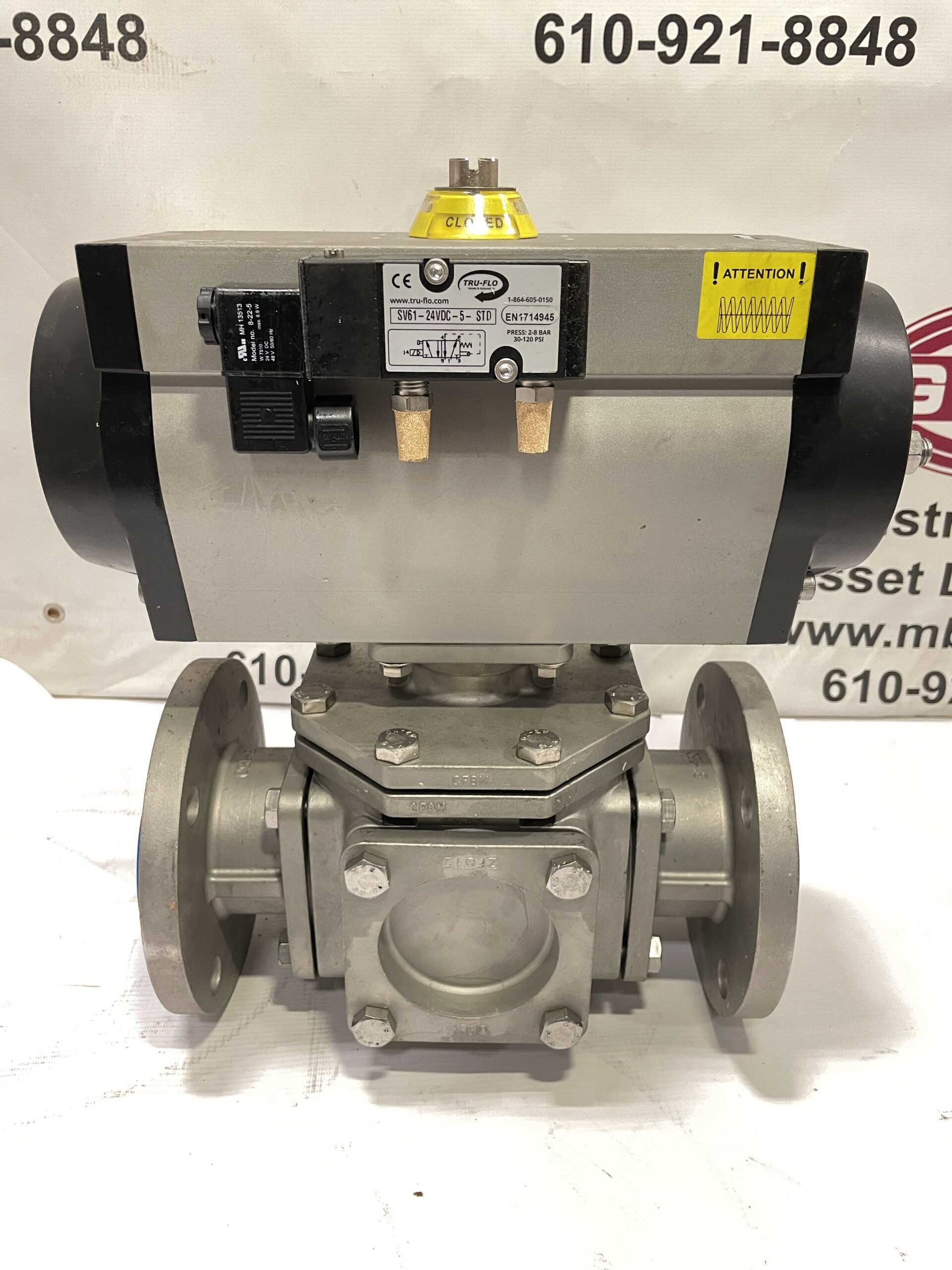

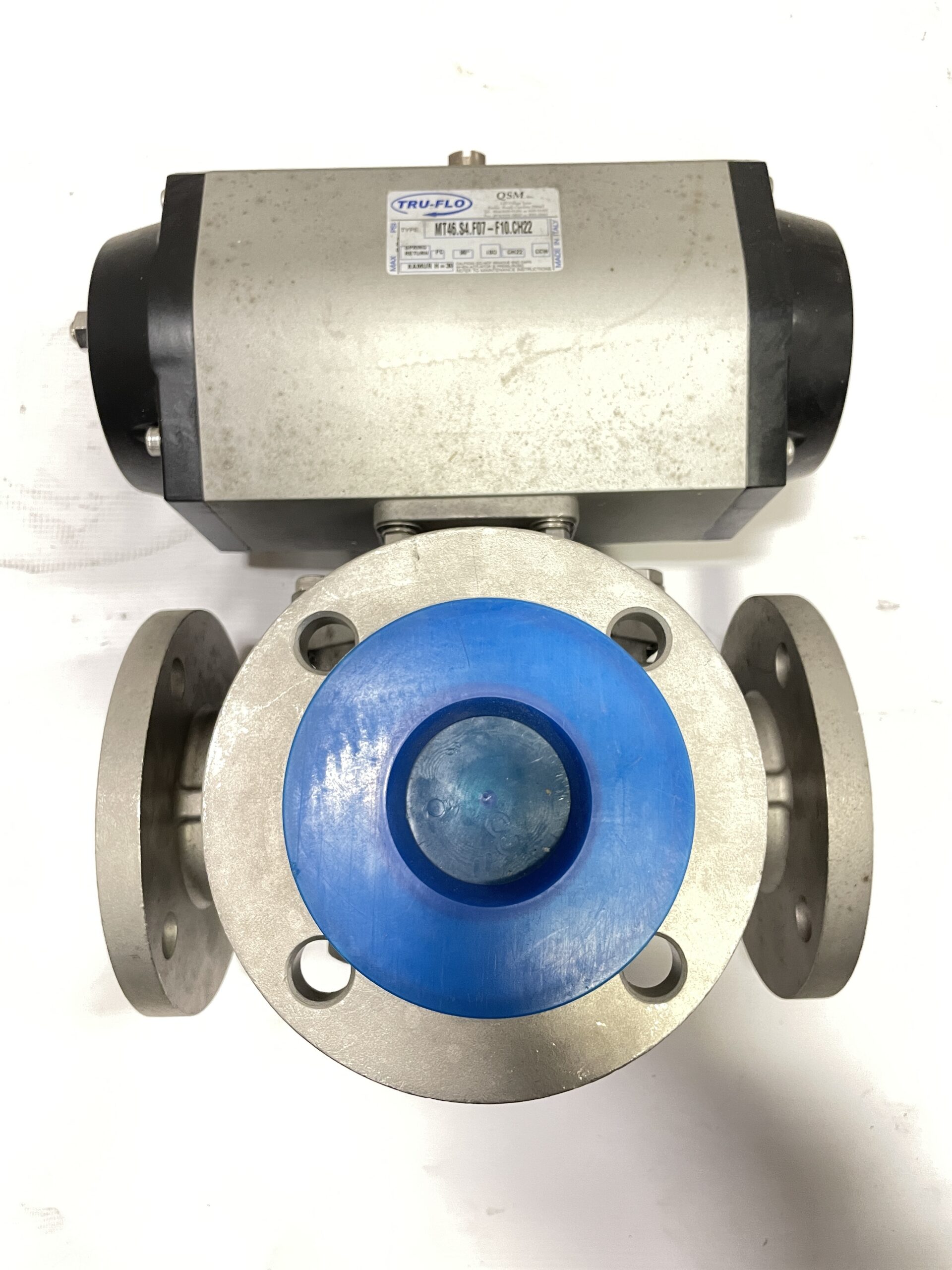

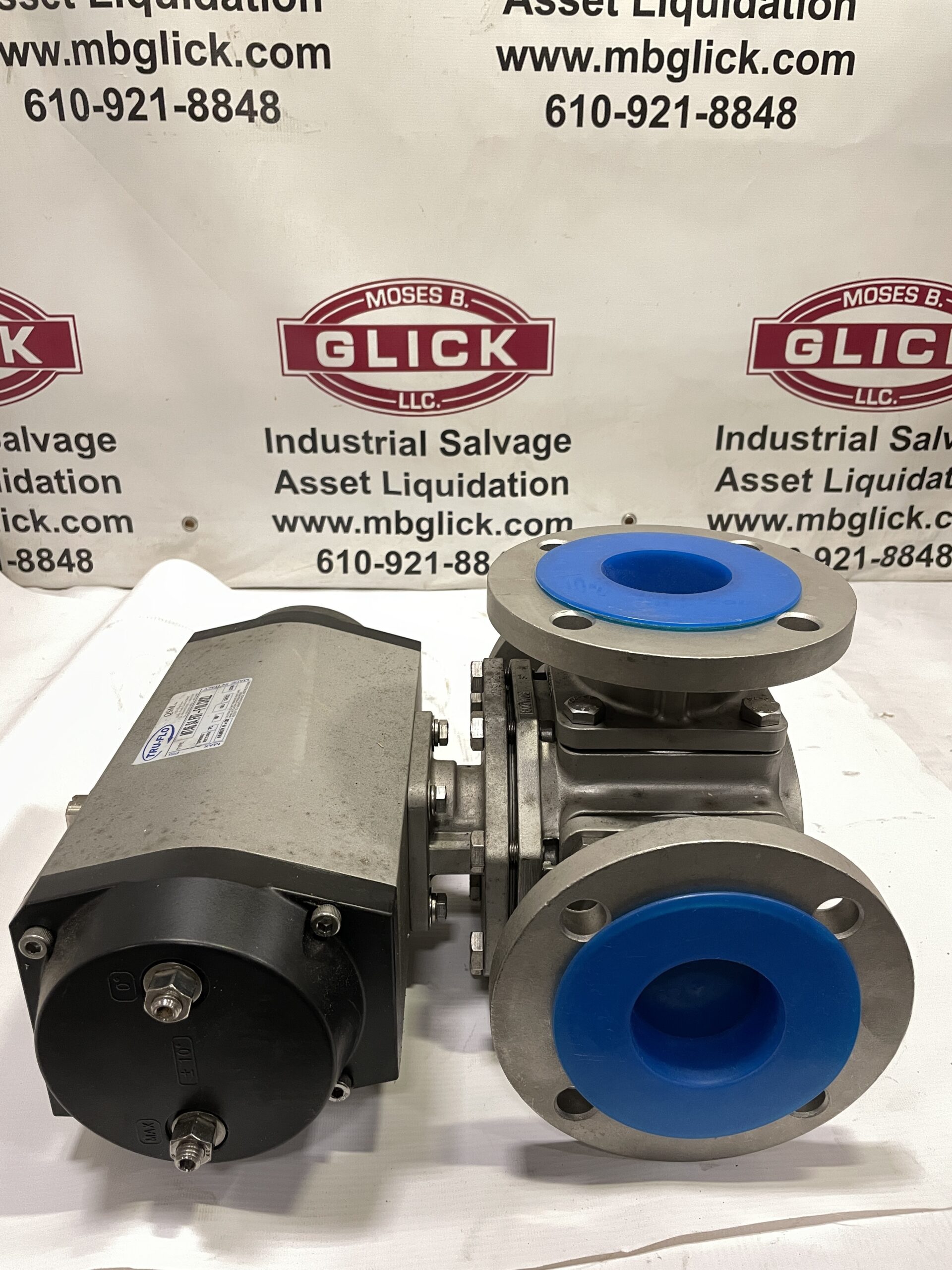

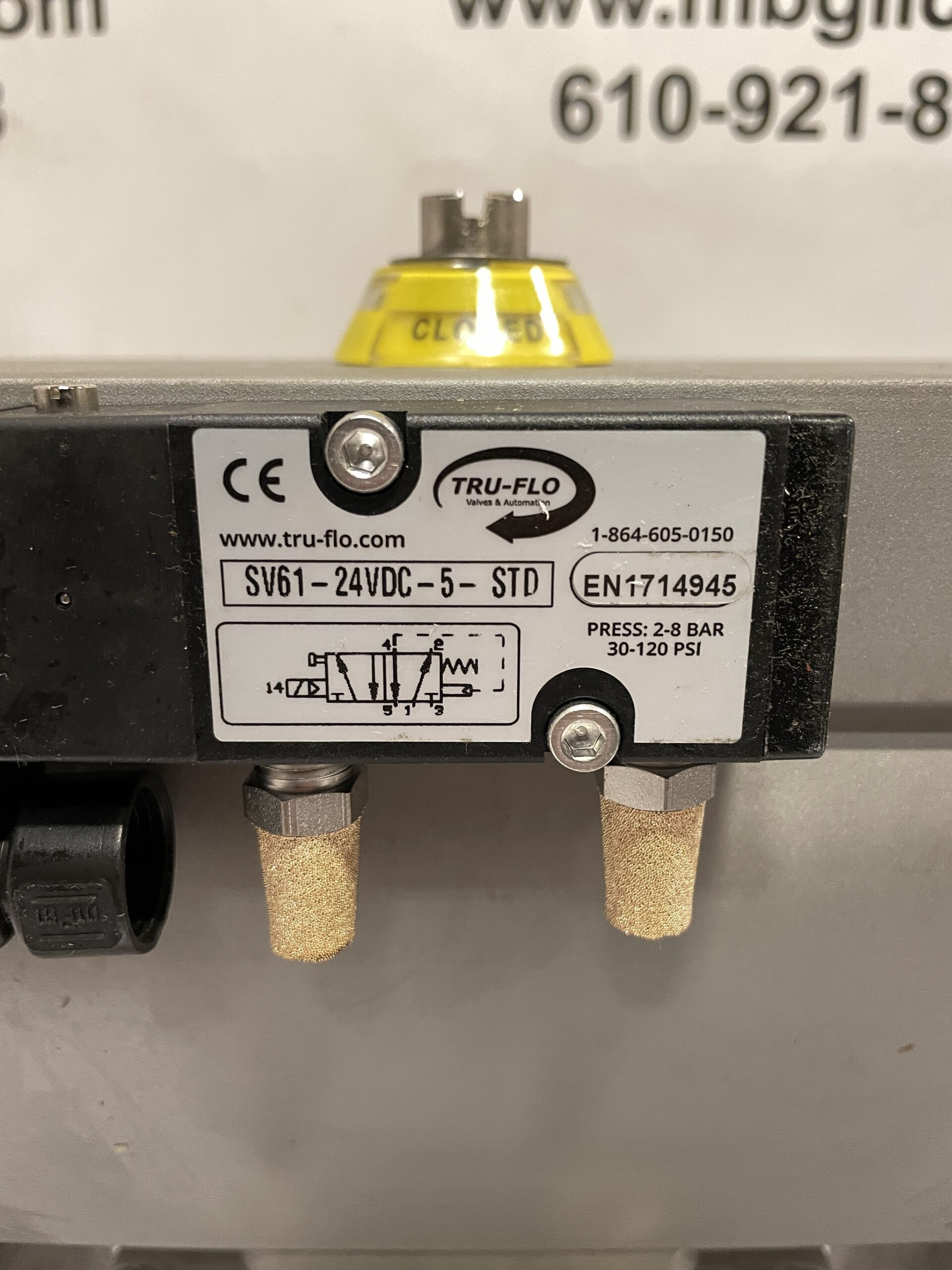

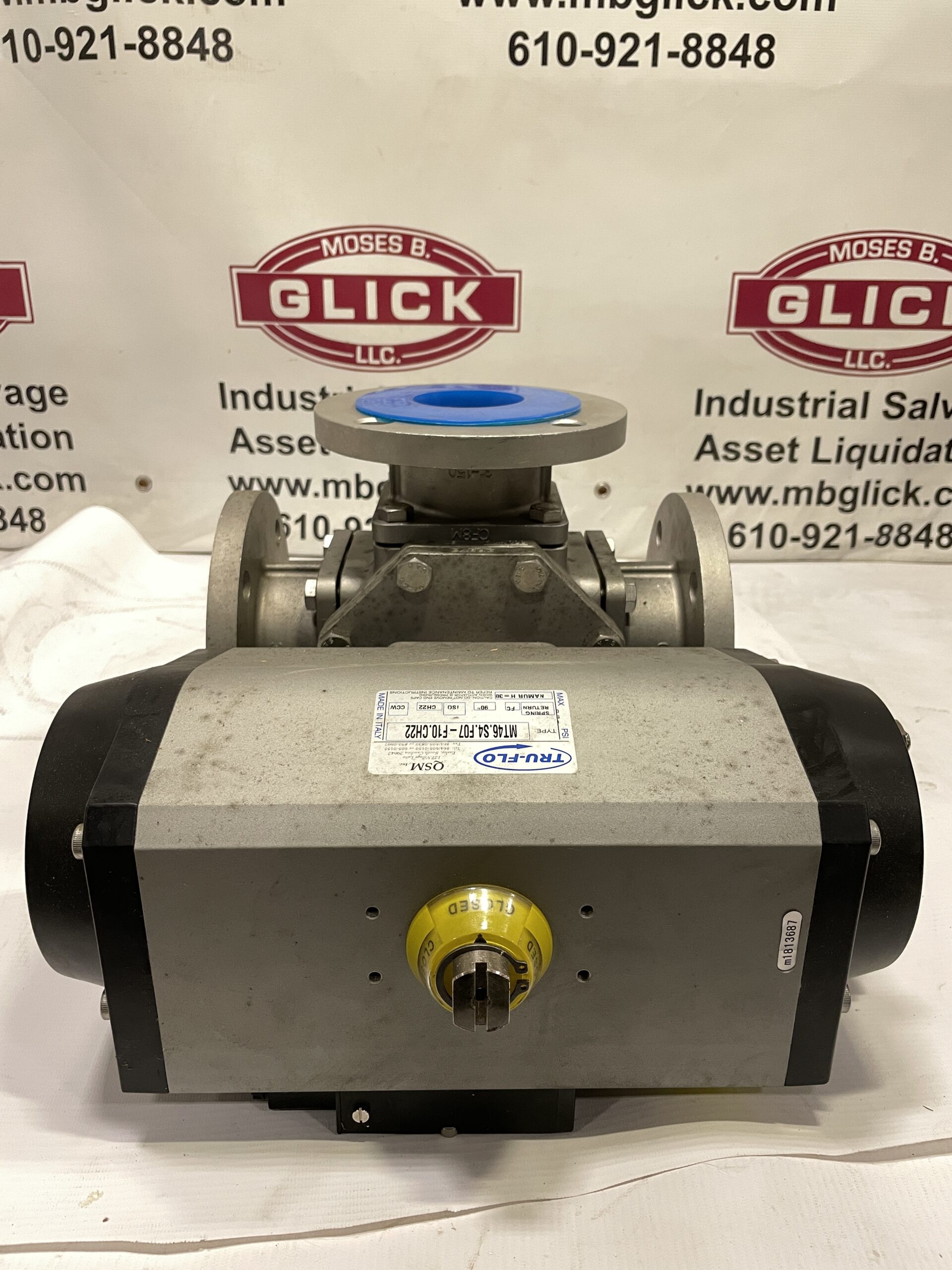

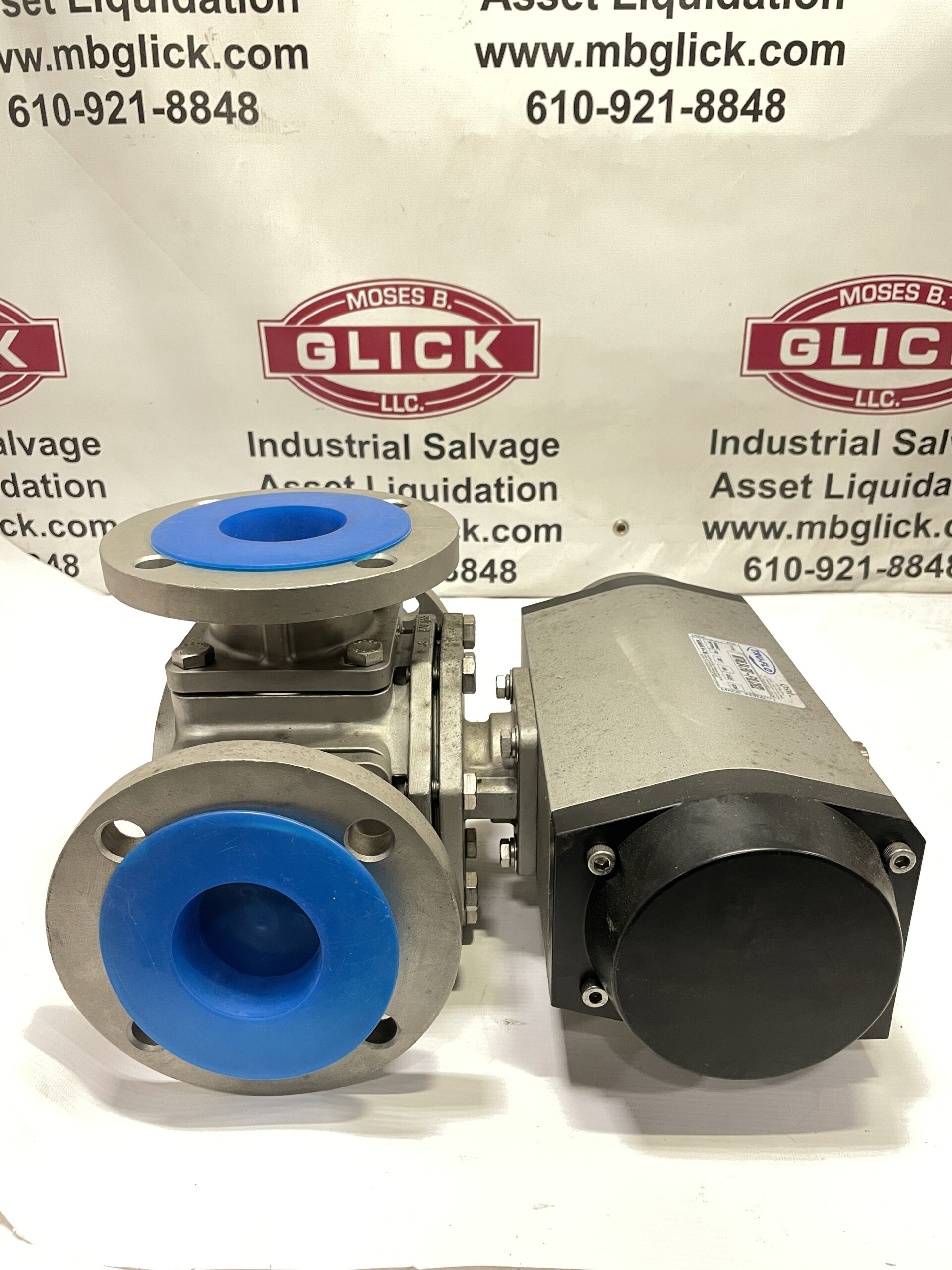

The Tru-Flo MT46.S4.F07-F10.CH22 is a 3-inch air-actuated 3-way ball valve built from 316 stainless steel for reliable performance in demanding industrial and sanitary environments. It features a spring-return pneumatic actuator, which uses compressed air to operate the valve and automatically returns it to a preset fail-safe position if air pressure is lost. This makes it ideal for applications where safety and controlled shutdown are critical.
Designed for flow diversion or mixing, the 3-way configuration allows fluid to be directed between multiple ports, depending on the internal ball design (L-port or T-port). The valve’s 316 stainless steel construction provides excellent resistance to corrosion, chemicals, and washdown conditions, making it suitable for industries such as food and beverage, pharmaceuticals, and chemical processing.

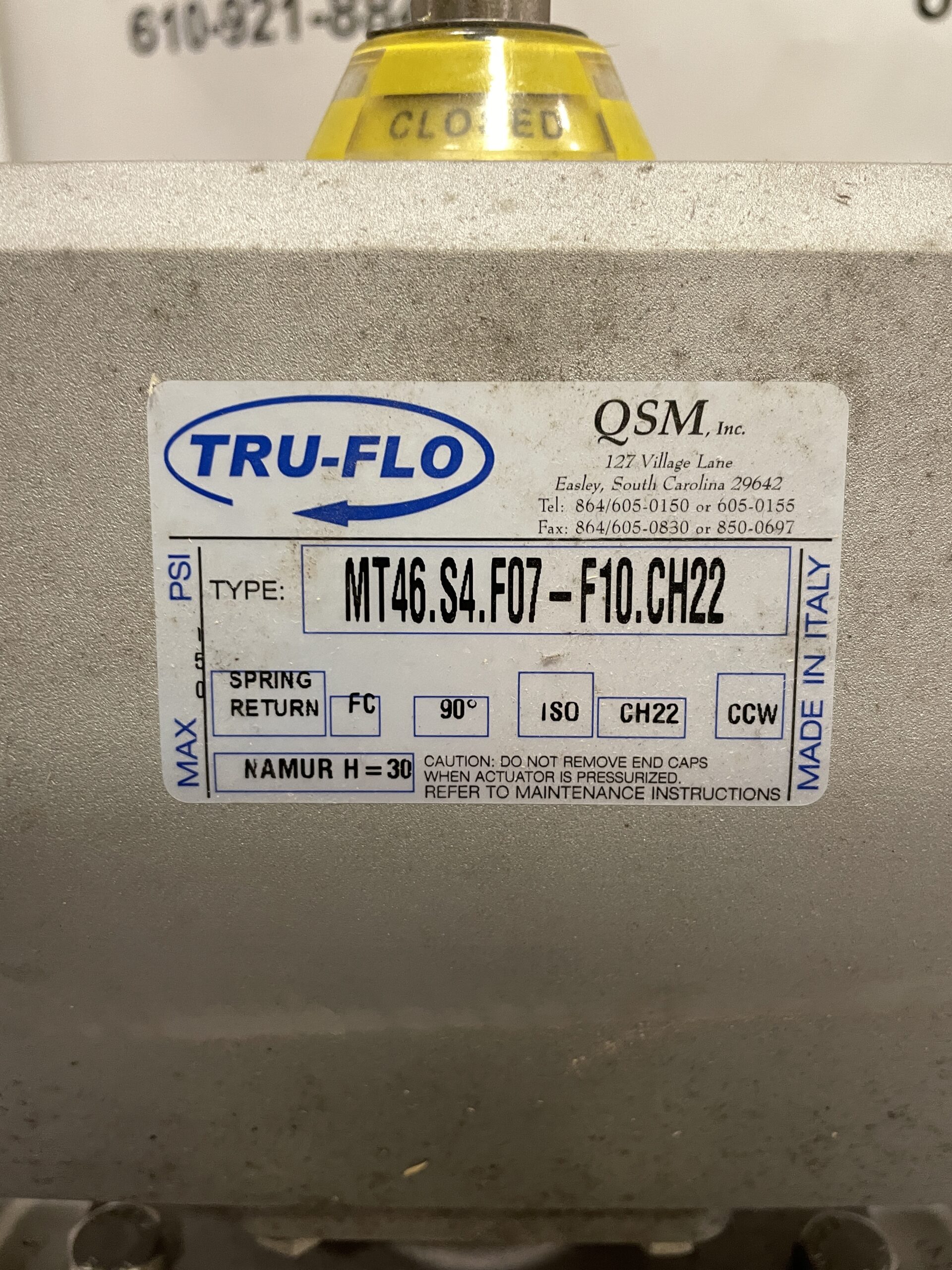

The actuator includes ISO F07/F10 mounting and a 22 mm drive interface, ensuring compatibility with standard automation setups and allowing for easy installation and adjustment. Overall, this valve offers durable construction, automated control, and dependable fail-safe operation, making it a strong choice for systems requiring precise and efficient multi-port flow management.
