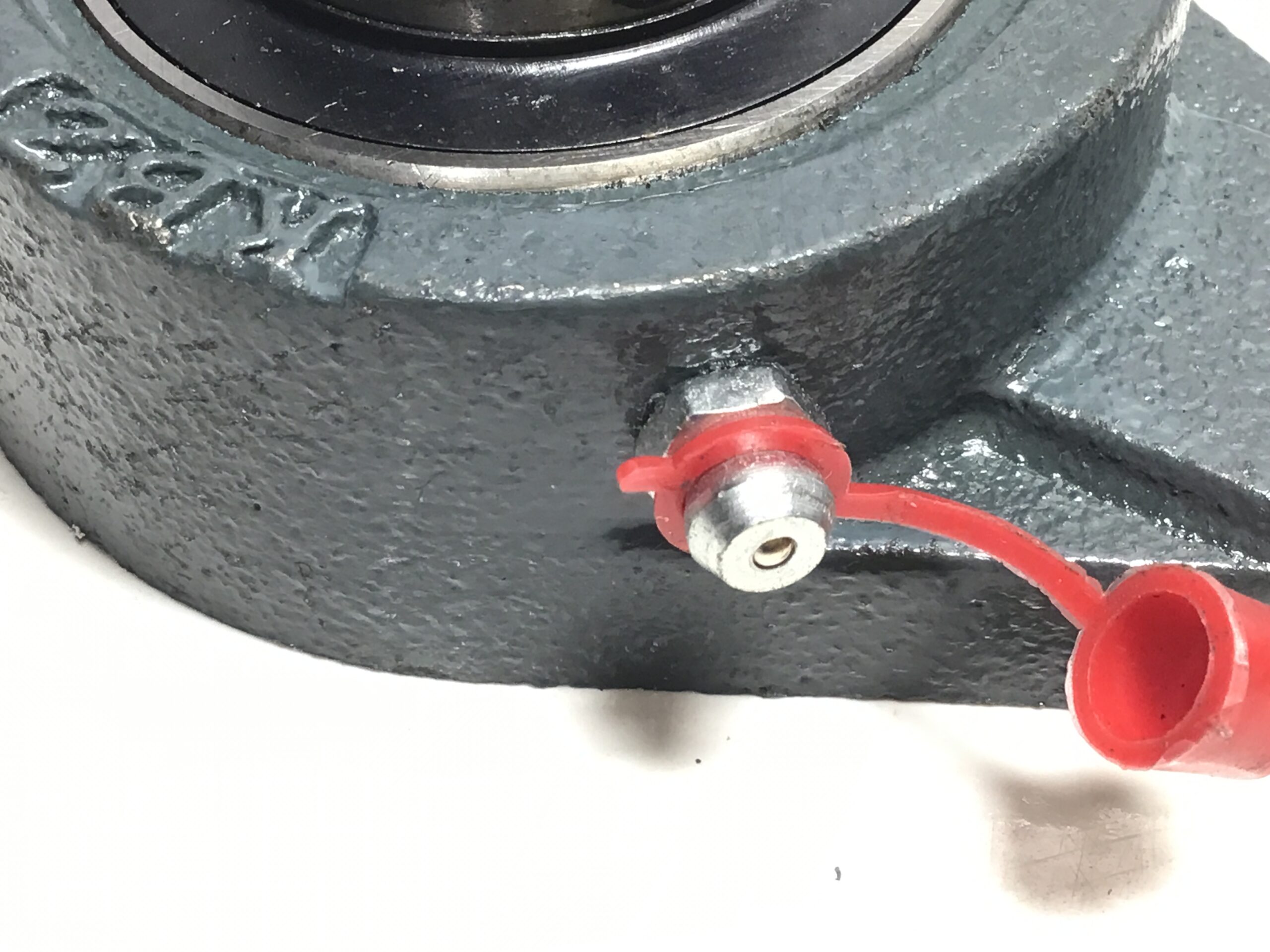

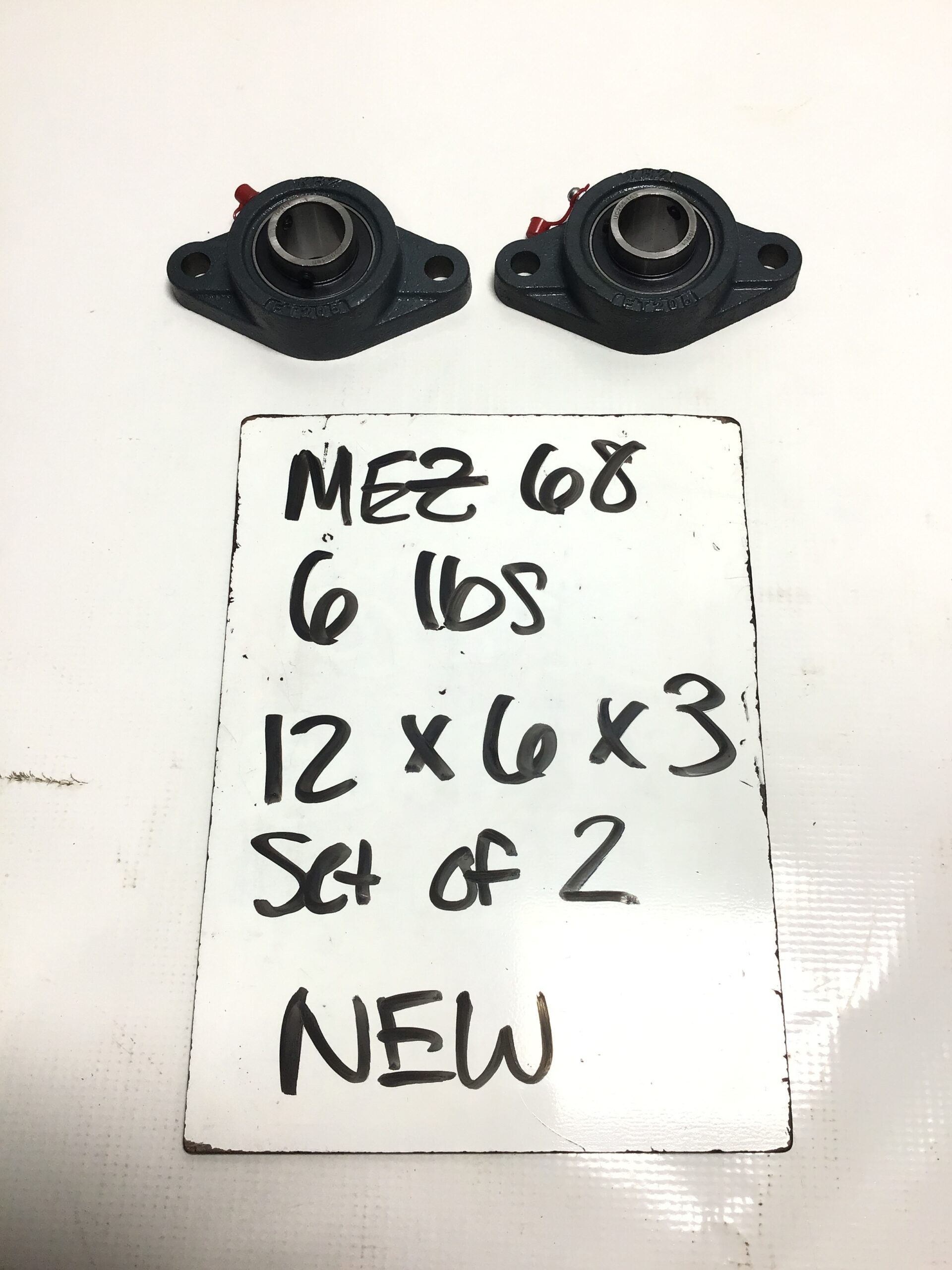

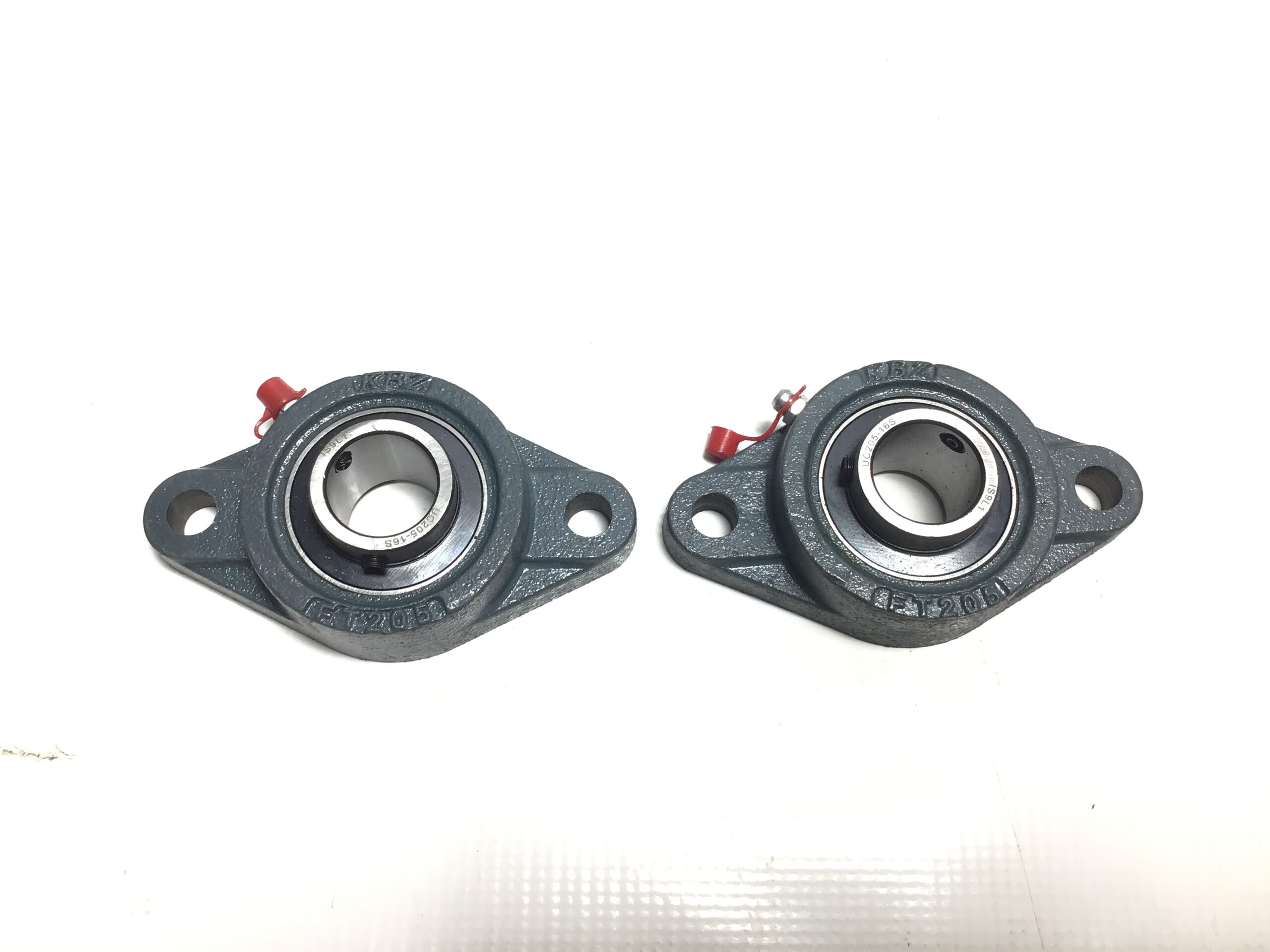

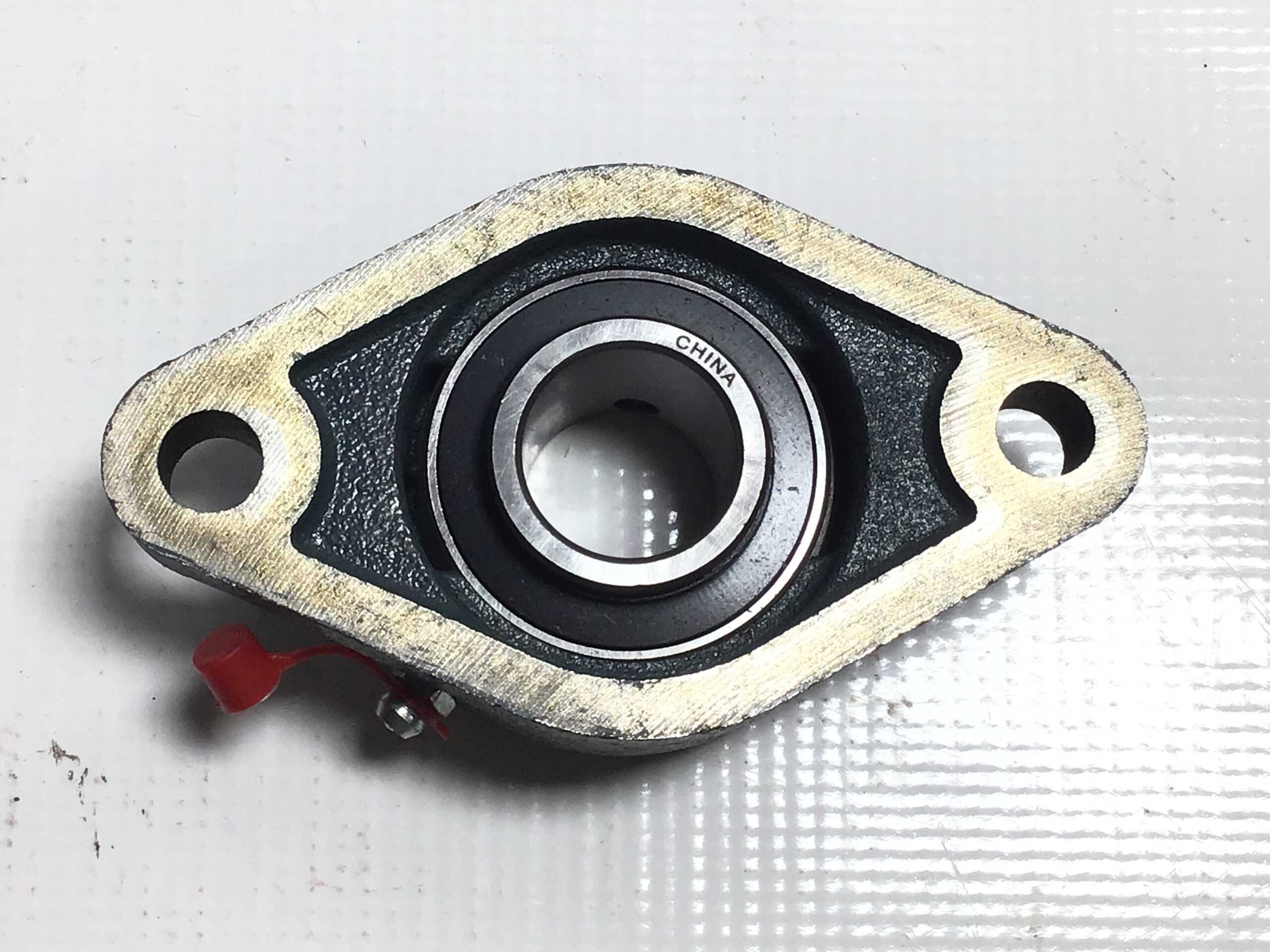

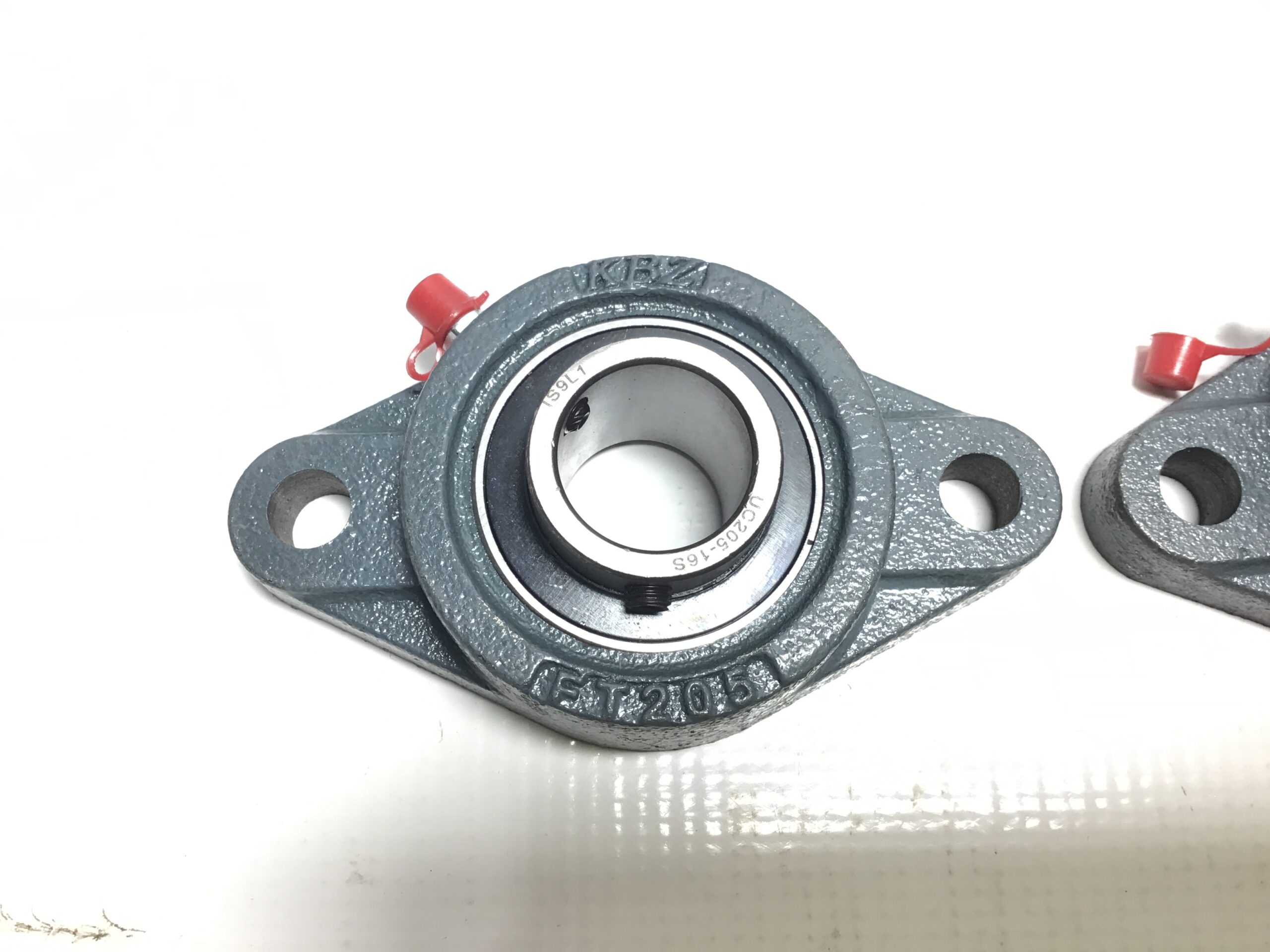

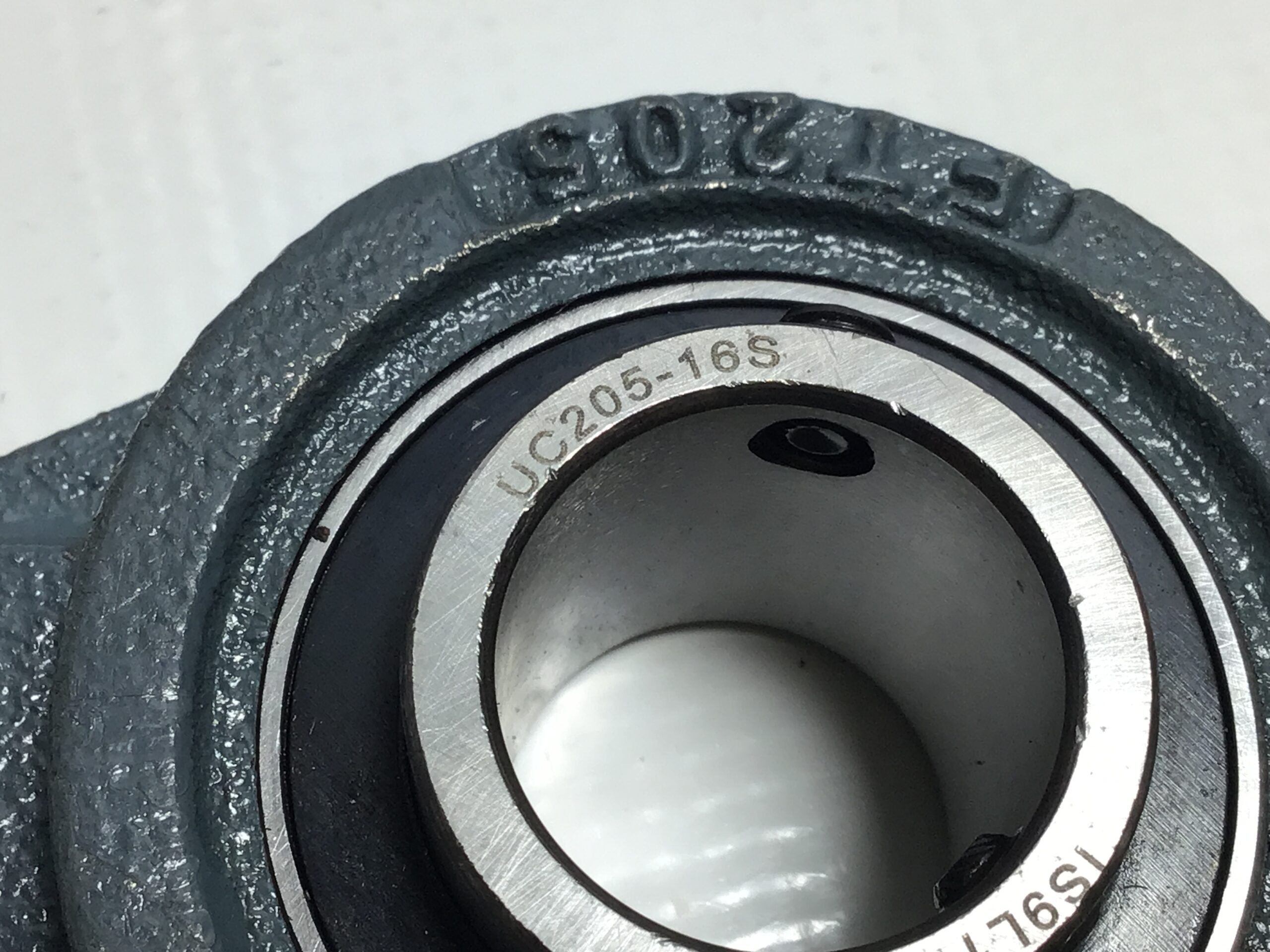

This UCFL205-16 2-Bolt Oval Flange Bearing features a UC205-16 insert bearing with a 1-inch bore mounted in a durable cast-iron FL205 housing. Designed for reliable shaft support and easy flange mounting, the bearing uses a set-screw locking system and includes a grease fitting for convenient lubrication. This mounted bearing unit is suitable as a replacement for applications requiring a 1″ shaft and UCFL205-16 / UC205-16 / FL205-style bearing configuration. The photos show the bearing and housing markings; please compare the dimensions and part numbers with your existing unit before ordering to ensure proper fitment.

Specifications

• Part Number: UCFL205-16
• Bearing Number: UC205-16
• Housing Number: FL205
• Bearing Type: 2-Bolt Oval Flange Bearing
• Bore Size: 1″ (25.4 mm)
• Housing Material: Cast Iron
• Locking Type: Set Screw
• Mounting Type: 2-Bolt Flange
• Lubrication: Grease Fitting
• Bearing Series: UCFL200 Series
• Seal Type: Sealed
• Rolling Element: Ball Bearing
• Shaft Type: 1″ Shaft

Applications

• Conveyors
• Agriculture
• Farm Equipment
• Material Handling
• Industrial Machinery
• Processing Equipment
• Packaging Equipment
• Fans
• Blowers
• Pumps
• Power Transmission
• Shaft Support
• Belt Drives
• Machinery Repair
• General Equipment
